Is the Universal industrial worm band ASFA-L 9 mm, carbon steel compliant with DIN 3017 and RoHS 2002/95/EC?

Yes. The Universal industrial worm band ASFA-L 9 mm, carbon steel is manufactured in accordance with the requirements of standard DIN 3017 and directive RoHS 2002/95/EC, so it is compliant with both DIN 3017 and RoHS 2002/95/EC.

Can Universal industrial worm band ASFA-L 9 mm, carbon steel be used for repeated tightening without damaging hose surfaces?

Yes. Universal industrial worm band ASFA-L 9 mm, carbon steel is designed for repeated tightening without damaging hose surfaces. Its unique worm mechanism in a compact housing and the cold-extruded thread in the band-smooth on the inside-allow secure multiple clamping cycles while protecting the hose. Manufactured to DIN 3017 and RoHS 2002/95/EC, it is recommended for standard industrial hose applications.

What temperature range is suitable for Universal industrial worm band ASFA-L 9 mm, carbon steel?

Universal industrial worm band ASFA-L 9 mm, carbon steel is made from galvanized carbon steel (W1) and designed for standard industrial hose clamping. Galvanized carbon steel clamps of this type typically perform well in a general ambient temperature range from about -20Â°C to +80Â°C (-4Â°F to +176Â°F). Notes: - The lower limit (~-20Â°C) reflects typical cold-weather performance before steel and plating may start to lose flexibility or become brittle. - The upper limit (~+80Â°C) is a conservative limit for prolonged exposure; short-term peaks somewhat above this are usually tolerated but may reduce corrosion protection and the clampâs mechanical properties over time. - If your application involves sustained higher temperatures, corrosive environments, or critical safety requirements, consider stainless steel clamps (higher temperature and corrosion resistance) or consult the manufacturer for exact rated limits.

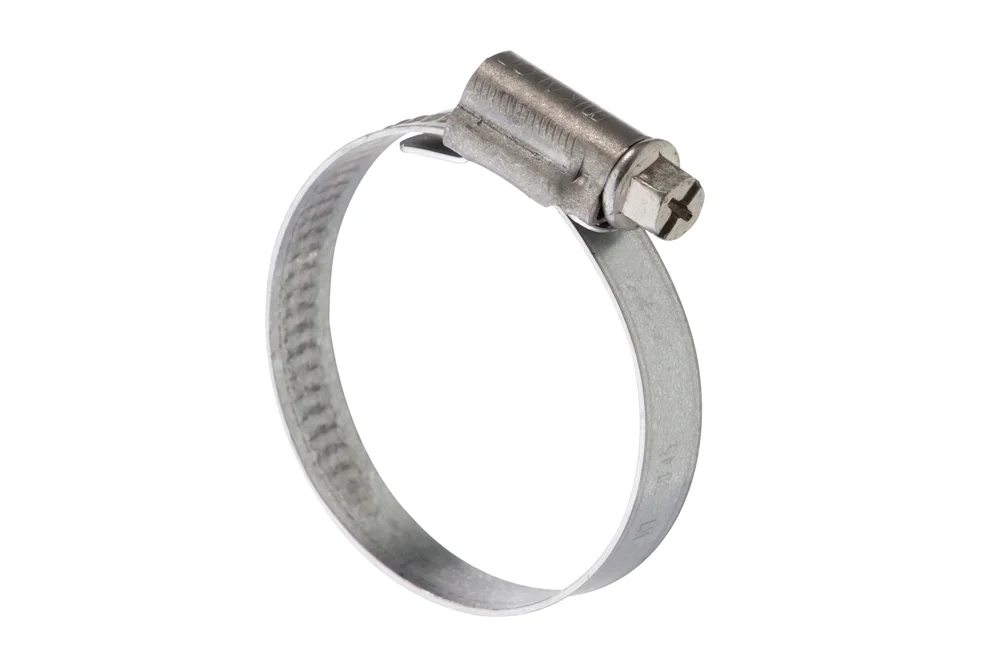

ASFA-L 9 mm universal industrial worm-drive clamp, carbon steel

All products, Clamps for mounting ends/

Additional information

Material	CS – steel (cast iron)

A high-quality general-purpose worm-drive clamp intended for quick and easy fastening of industrial hoses. Manufactured in accordance with the requirements of DIN 3017 and the RoHS Directive 2002/95/EC. The ASFA-L clamp with a band width of 9 mm is recommended for standard applications. The unique worm mechanism in a compact housing and the cold-formed thread in the band, smooth on the inside, ensure a secure, repeated grip without damaging the hose surface. Material: galvanized carbon steel (W1).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03008753	Clamp ASFA-L 8÷16 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008761	Clamp ASFA-L 12÷22 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008770	Clamp ASFA-L 16÷27 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008788	Clamp ASFA-L 20÷32 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008796	Clamp ASFA-L 25÷40 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008809	Clamp ASFA-L 30÷45 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008817	Clamp ASFA-L 32÷50 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008825	Clamp ASFA-L 40÷60 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008833	Clamp ASFA-L 50÷70 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008841	Clamp ASFA-L 60÷80 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008850	Clamp ASFA-L 70÷90 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008868	Clamp ASFA-L 80÷100 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008876	Clamp ASFA-L 90÷110 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008884	Clamp ASFA-L 100÷120 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008892	Clamp ASFA-L 110÷130 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008905	Clamp ASFA-L 120÷140 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008913	Clamp ASFA-L 130÷150 mm, width 9 mm, W1	-	-	In stock	Enquiry
AB-03008921	Clamp ASFA-L 140÷160 mm, width 9 mm, W1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A high-quality general-purpose worm-drive clamp intended for quick and easy fastening of industrial hoses. Manufactured in accordance with the requirements of DIN 3017 and the RoHS Directive 2002/95/EC. The ASFA-L clamp with a band width of 9 mm is recommended for standard applications. The unique worm mechanism in a compact housing and the cold-formed thread in the band, smooth on the inside, ensure a secure, repeated grip without damaging the hose surface. Material: galvanized carbon steel (W1).
