Is the VKA cap, carbon steel with 24Â° cone DIN 2353 and NBR O-ring compatible with DIN 2353 nut type M in both L (light) and S (heavy) series?

Yes. The VKA cap, carbon steel with 24Â° cone DIN 2353 and NBR O-ring is compatible with DIN 2353 nut type M in both series. The product description explicitly states compatibility with DIN 2353 nut type M and lists availability in L (light) and S (heavy) series, so it can be used with M nuts from either series.

Can the VKA cap, carbon steel with 24Â° cone DIN 2353 and NBR O-ring be used with DIN 2353 nut type M across all sizes?

Yes - the VKA cap, carbon steel with 24Â° cone DIN 2353 and NBR O-ring is designed to be compatible with DIN 2353 nut type M. Itâs offered in both L (light) and S (heavy) series and made of galvanized carbon steel. Ensure you select the matching size series (L or S) corresponding to your systemâs fittings and verify thread/size specifications per DIN 2353 to guarantee a proper seal and mechanical fit across the required sizes.

Does the VKA cap, carbon steel with 24Â° cone and NBR O-ring fit DIN 2353 nut type M for both L and S series?

Yes. The VKA cap, carbon steel with 24Â° cone and NBR O-ring is compatible with DIN 2353 nut type M for both the L (light) and S (heavy) series. The product description explicitly states compatibility with DIN 2353 nut type M and lists availability for both L and S series, so it fits both.

Cap VKA, carbon steel

Additional information

Material	CS – steel (cast iron)

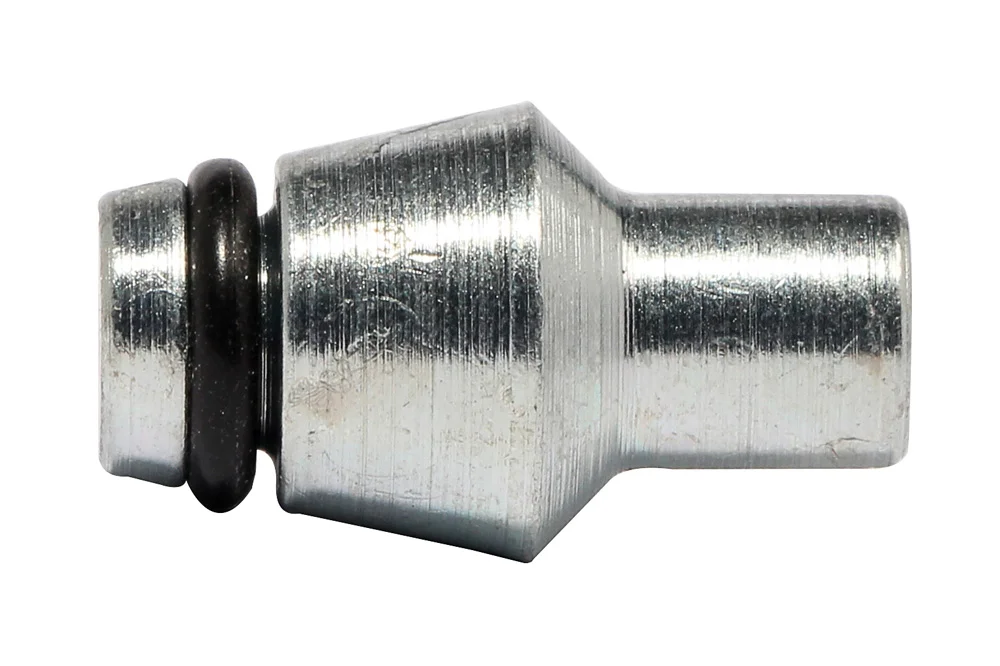

Cap DIN 2353, type VKA: 24° cone DIN 2353 with an O-ring NBR. Compatible with nut DIN 2353 type M. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-VKA-06L-S	Cap DIN 2353 6L/S	-	630	In stock	Enquiry
HD-VKA-08L-S	Cap DIN 2353 8L/S	-	630	In stock	Enquiry
HD-VKA-10L-S	Cap DIN 2353 10L/S	-	630	In stock	Enquiry
HD-VKA-12L-S	Cap DIN 2353 12L/S	-	630	In stock	Enquiry
HD-VKA-14S	Cap DIN 2353 14S	-	630	In stock	Enquiry
HD-VKA-15L	Cap DIN 2353 15L	-	315	In stock	Enquiry
HD-VKA-16S	Cap DIN 2353 16S	-	400	In stock	Enquiry
HD-VKA-18L	Cap DIN 2353 18L	-	315	In stock	Enquiry
HD-VKA-20S	Cap DIN 2353 20S	-	400	In stock	Enquiry
HD-VKA-22L	Cap DIN 2353 22L	-	160	In stock	Enquiry
HD-VKA-25S	Cap DIN 2353 25S	-	400	In stock	Enquiry
HD-VKA-28L	Cap DIN 2353 28L	-	160	In stock	Enquiry
HD-VKA-30S	Cap DIN 2353 30S	-	400	In stock	Enquiry
HD-VKA-35L	Cap DIN 2353 35L	-	160	In stock	Enquiry
HD-VKA-38S	Cap DIN 2353 38S	-	315	In stock	Enquiry
HD-VKA-42L	Cap DIN 2353 42L	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Cap DIN 2353, type VKA: 24° cone DIN 2353 with an O-ring NBR. Compatible with nut DIN 2353 type M. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.
