Is the WSV bulkhead angle fitting, carbon steel, zinc-nickel suitable for use in marine environments given its 6â10 Âµm Zn-Ni coating and 720-hour salt spray resistance?

Yes . the WSV bulkhead angle fitting, carbon steel, zinc-nickel is suitable for many marine applications. Reasoning: - Coating performance: The Zn-Ni coating at 6â10 Âµm with claimed resistance up to 720 hours in neutral salt spray (NSS) is a high-performance protective finish. Zn-Ni at that thickness typically provides substantially better corrosion protection than standard zinc plating and is commonly specified for harsh and offshore environments. - Material and design: Base material is carbon steel, so corrosion protection depends entirely on the Zn-Ni layer and proper assembly/maintenance. The DIN 2353 24Â° socket design with counter nut is a standard hydraulic fitting style suitable for reliable sealing when installed correctly. - Practical considerations: 720 hours NSS indicates good resistance to uniform salt-spray attack, which is encouraging for marine exposure (shipboard, coastal, offshore). However, real-world marine conditions include cyclic wet/dry, splash, crevice corrosion, mechanical abrasion and galvanic couples. To maximize service life: ensure complete coating coverage (threads/mating areas), avoid exposed substrate at cut edges, use compatible materials to prevent galvanic corrosion, and follow proper installation torque and sealing practices. Conclusion: For typical marine hydraulic and fluid installations, the WSV bulkhead angle fitting, carbon steel, zinc-nickel with 6â10 Âµm ZnâNi and 720 h NSS is appropriate and offers robust corrosion protection. For extremely aggressive offshore or long-term submerged applications, consider stainless steel fittings or additional protective measures and verify suitability by application-specific testing.

Can the WSV bulkhead angle fitting, carbon steel, zinc-nickel be used outdoors long-term considering its 6â10 Âµm ZnâNi coating and 720h salt spray rating?

Yes - the WSV bulkhead angle fitting, carbon steel, zinc-nickel can be used outdoors long-term in many environments. The 6â10 Âµm ZnâNi coating provides markedly higher corrosion resistance than standard zinc plating, and a 720-hour neutral salt spray (NSS) rating indicates excellent protection against chloride-driven corrosion. For typical outdoor exposure (urban, industrial, rural, occasional marine influence) this finish will significantly extend service life. However, in severe marine or permanently wet/immersed conditions, or where mechanical damage, galvanic coupling, or aggressive chemicals occur, additional protection (thicker coatings, stainless steel, sacrificial anodes, or regular maintenance) may be advisable. Also ensure proper installation and avoid coating damage at mating threads/seals.

Does the WSV bulkhead angle fitting, carbon steel, zinc-nickel resist corrosion from road salt exposure?

Yes. The WSV bulkhead angle fitting, carbon steel, zinc-nickel is designed to resist corrosion from road salt. Its zincânickel surface coating (6â10 Âµm) offers very high corrosion resistance. specified up to 720 hours without corrosion in a neutral salt spray test. which indicates strong protection against chloride attack typical of road deâicing salts. Being carbon steel with a zincânickel plating provides sacrificial and barrier protection; however, actual field performance can vary with exposure severity, mechanical damage to the coating, and maintenance. For the best longâterm resistance in heavy or prolonged salt exposure, ensure the coating remains intact and consider additional measures (regular washing, protective topcoats, or stainlessâsteel alternatives) if conditions are extreme.

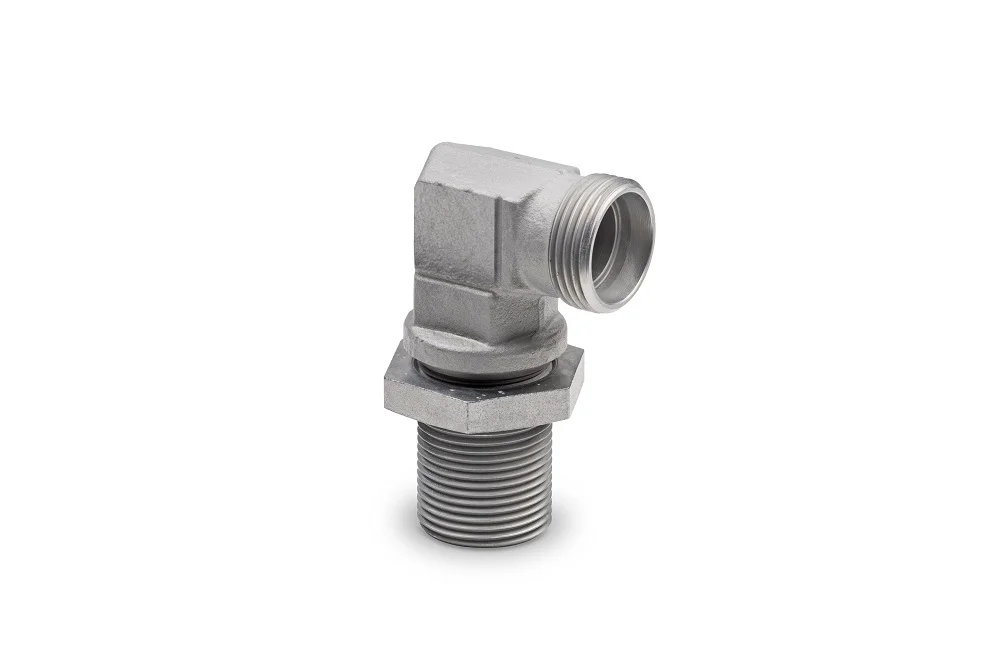

WSV bulkhead angle fitting, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

DIN 2353 angular flange fitting, type WSV with counter nut: socket 24° DIN 2353, both sides with external metric thread. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-WSV-06L-CN	DIN 2353 fitting WSV 6L, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-06S-CN	DIN 2353 connector WSV 6S, Zn-Ni	-	630	In stock	Enquiry
HD-WSV-08L-CN	DIN 2353 connector WSV 8L, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-08S-CN	DIN 2353 connector WSV 8S, Zn-Ni	-	630	In stock	Enquiry
HD-WSV-10L-CN	DIN 2353 fitting WSV 10L, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-10S-CN	DIN 2353 fitting WSV 10S, Zn-Ni	-	630	In stock	Enquiry
HD-WSV-12L-CN	DIN 2353 fitting WSV 12L, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-12S-CN	DIN 2353 fitting WSV 12S, Zn-Ni	-	630	In stock	Enquiry
HD-WSV-14S-CN	DIN 2353 fitting WSV 14S, Zn-Ni	-	630	In stock	Enquiry
HD-WSV-15L-CN	DIN 2353 fitting WSV 15L, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-16S-CN	DIN 2353 fitting WSV 16S, Zn-Ni	-	400	In stock	Enquiry
HD-WSV-18L-CN	DIN 2353 fitting WSV 18L, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-20S-CN	DIN 2353 fitting WSV 20S, Zn-Ni	-	400	In stock	Enquiry
HD-WSV-22L-CN	DIN 2353 fitting WSV 22L, Zn-Ni	-	160	In stock	Enquiry
HD-WSV-25S-CN	DIN 2353 fitting WSV 25S, Zn-Ni	-	400	In stock	Enquiry
HD-WSV-28L-CN	DIN 2353 fitting WSV 28L, Zn-Ni	-	160	In stock	Enquiry
HD-WSV-30S-CN	DIN 2353 fitting WSV 30S, Zn-Ni	-	400	In stock	Enquiry
HD-WSV-35L-CN	DIN 2353 fitting WSV 35L, Zn-Ni	-	160	In stock	Enquiry
HD-WSV-38S-CN	DIN 2353 fitting WSV 38S, Zn-Ni	-	315	In stock	Enquiry
HD-WSV-42L-CN	DIN 2353 fitting WSV 42L, Zn-Ni	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 angular flange fitting, type WSV with counter nut: socket 24° DIN 2353, both sides with external metric thread. Available as: L (light series), S (heavy series). Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
