Is the Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 compatible with both 60Â° cone BSP fittings and SAE 3000 O-ring flange connections?

Yes. The Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 is designed to be compatible with both connection types: the external BSP thread uses a 60Â° cone sealing (so it fits and seals with female BSP fittings that employ a 60Â° cone), and the SAE 3000 flange face is arranged for O-ring sealing (or an alternative gasket located in the flange groove) to mate with SAE 3000 O-ring flange connections. Material and galvanization do not affect this sealing compatibility. Ensure you match the correct BSP thread size and the SAE 3000 flange dimensions/specification for a proper fit and seal.

Does the Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 require a specific torque for the BSP 60Â° cone and SAE 3000 flange?

Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 does require correct tightening practice but no single universal torque value can be specified for both the BSP 60Â° cone and the SAE 3000 flange in the product description. The BSP 60Â° cone sealing is metal-to-metal and must be tightened to obtain proper cone seating - follow the hose fitting/manufacturer torque guidelines for the specific thread size and material to avoid overloading or leakage. The SAE 3000 flange uses an Oâring or gasket in the flange groove; flange bolt torque should follow SAE J518/JIC or the flange/gasket manufacturerâs recommended torque sequence and values for the bolt size and material. If no specific torque table is provided, consult the manufacturer or engineering tables for the correct torque for the thread/bolt size and material.

Can the Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 be used in high-pressure hydraulic systems with zinc-plated surfaces?

Yes. the Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 can be used in high-pressure hydraulic systems, with the following important conditions and limitations: 1. Pressure rating and sealing: - The SAE 3000 flange rating indicates suitability for medium-high hydraulic pressures typical of SAE 3000 lb flange systems; ensure system maximum working pressure does not exceed the flange and BSP cone (60Â°) rated limits for the specific size used. - The flange uses Oâring or suitable gasket in the groove. confirm correct gasket type and installation to maintain pressure integrity. - The BSP 60Â° cone relies on metal-to-metal seating; threads and cone must be undamaged and correctly torqued. 2. Material and corrosion protection: - Carbon steel with galvanization (zinc plating) provides corrosion resistance suitable for many hydraulic environments. However, zinc plating can be damaged by abrasive media, certain chemicals, or during assembly. If plating is compromised, corrosion may develop, affecting sealing surfaces and mechanical strength. - For systems with aggressive fluids, high chloride environments, or where electrochemical compatibility is critical, consider stainless steel or appropriate corrosion-resistant coatings. 3. Compatibility and safety: - Verify fluid compatibility with carbon steel and zinc plating. Some hydraulic fluids or additives can attack zinc. - Ensure correct size, thread type (external BSP thread) and torque values are used, and that mating components (flange, Oâring/gasket, BSP female) are compatible. - Follow manufacturerâs installation, inspection, and maintenance guidelines. Replace damaged or corroded fittings. 4. Recommendations: - For standard high-pressure hydraulic applications in non-corrosive environments, the Adaptor 45Â° with GZ BSP/flange SAE 3000, carbon steel, type A122 is appropriate. - For highly corrosive, marine, or critical safety systems, evaluate stainless steel alternatives or confirm enhanced coatings and compatibility before use. If you provide the systemâs maximum working pressure, fluid type, environment, and fitting size, I can give a more specific suitability check.

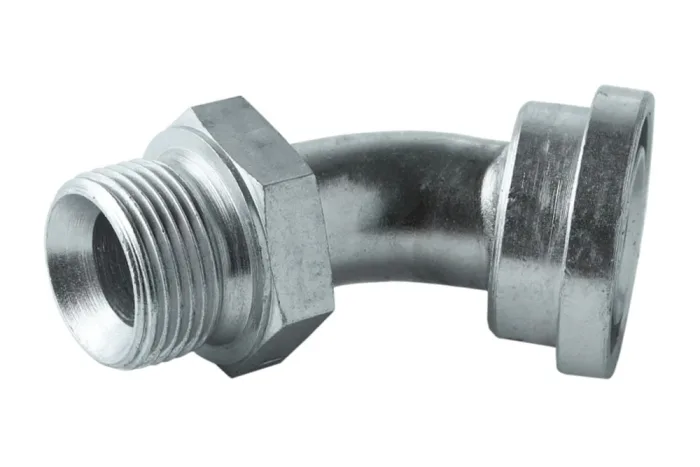

Adaptor 45° with GZ BSP/flange SAE 3000, carbon steel, type A122

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adaptor 45° high-pressure type A122 with external BSP thread (60° cone sealing) and SAE 3000 flange (O-ring sealing or other gasket in the flange groove). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A122-08	45° adapter SAE 3000 1/2" / 1/2" BSP	-	345	In stock	Enquiry
TI-A122-12	45° adapter SAE 3000 3/4" / 3/4" BSP	-	315	In stock	Enquiry
TI-A122-16	Adaptor 45° flange SAE 3000 1" / 1" BSP	-	250	In stock	Enquiry
TI-A122-20	Adaptor 45° flange SAE 3000 1.1/4" / 1.1/4" BSP	-	200	In stock	Enquiry
TI-A122-24	Adaptor 45° flange SAE 3000 1.1/2" / 1.1/2" BSP	-	160	In stock	Enquiry
TI-A122-32	Adaptor 45° flange SAE 3000 2" / 2" BSP	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adaptor 45° high-pressure type A122 with external BSP thread (60° cone sealing) and SAE 3000 flange (O-ring sealing or other gasket in the flange groove). Material: carbon steel, galvanized.
