Is the Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 compatible with other BSP-threaded high-pressure fittings and swivel nuts?

Yes . the Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 is designed to be compatible with other components that use BSP (British Standard Pipe) thread conventions and 60Â° cone (swivel nut) sealing. Key points: - Thread compatibility: The internal BSP threads on this Adaptor match standard BSP thread forms (typically BSPP or BSPT as specified), so it will mate with fittings that use the same BSP thread type and size. - Sealing method: The 60Â° cone sealing via swivel nuts requires mating fittings that accept a 60Â° cone seat; when both components use the same cone geometry, a reliable metal-to-metal high-pressure seal is achieved. - Material and surface finish: Made of carbon steel and galvanized, the Adaptor offers mechanical strength and corrosion resistance typical for high-pressure hydraulic use; ensure mating parts are compatible materials to avoid galvanic or mechanical issues. - Pressure and application: Compatibility also depends on rated pressure, temperature range and application (hydraulic fluid type). Confirm that the mating BSP fittings and swivel nuts have equal or higher pressure/temperature ratings and are intended for the same hydraulic service. - Installation: Proper torque, correct swivel nut orientation and use of any required backup washers or seals (if specified) are necessary for leak-free performance. In summary, the Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 will be compatible with other BSP-threaded high-pressure fittings and swivel nuts provided the mating parts use the same BSP thread type and 60Â° cone seat, and match in pressure/temperature/material specifications.

Does the Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 support 60Â° cone sealing with internal BSP threads and swivel nuts?

Yes. The Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 supports 60Â° cone sealing with internal BSP threads and swivel nuts. The product description explicitly states it is a straight high-pressure connector, type A105, with internal BSP threads and swivel nuts (60Â° cone sealing), made of carbon steel, galvanized.

Can the Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 be used with swivel nuts of different materials?

Yes. but with important caveats. The Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105 is manufactured from carbon steel and galvanised, and uses 60Â° cone sealing with internal BSP threads and swivel nuts. In general swivel nuts of different materials can be used provided they meet these conditions: - Material compatibility: The substitute nut must be chemically compatible with the carbon steel body and any fluids in the system to avoid galvanic corrosion or chemical attack. Stainless steel (e.g., 316) is commonly acceptable, but pairing highly dissimilar metals (e.g., aluminium nut on carbon steel body) can accelerate galvanic corrosion in wet environments. - Mechanical strength and hardness: The nut must have sufficient strength and hardness to maintain clamping and sealing at the working pressures and temperatures of the assembly. A softer nut may deform, leak, or fail under torque. - Thread fit and tolerance: Threads must match the BSP size and pitch and conform to the same tolerances so the nut engages properly without cross-threading or play. - Sealing surface compatibility: The nut must correctly support the 60Â° cone sealing geometry. If a different material changes seating behavior (surface finish, elasticity), sealing performance can be compromised. - Plating/coating and galvanic effects: If the nut is plated or coated, ensure coatings are compatible with the galvanised carbon steel and wonât flake or create an insulating film that hides corrosion issues. - Standards and approvals: Use nuts that meet the relevant hydraulic/pressure standards and any project-specific certifications. Recommended practice: Use swivel nuts specified or approved by the adaptor manufacturer or a qualified equivalent of known material, strength and finish. If substituting materials, perform compatibility checks (mechanical, chemical, galvanic) and pressure/leak tests at operating conditions before service.

Adaptor hydraulic coupling straight GW BSP, carbon steel, type A105

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

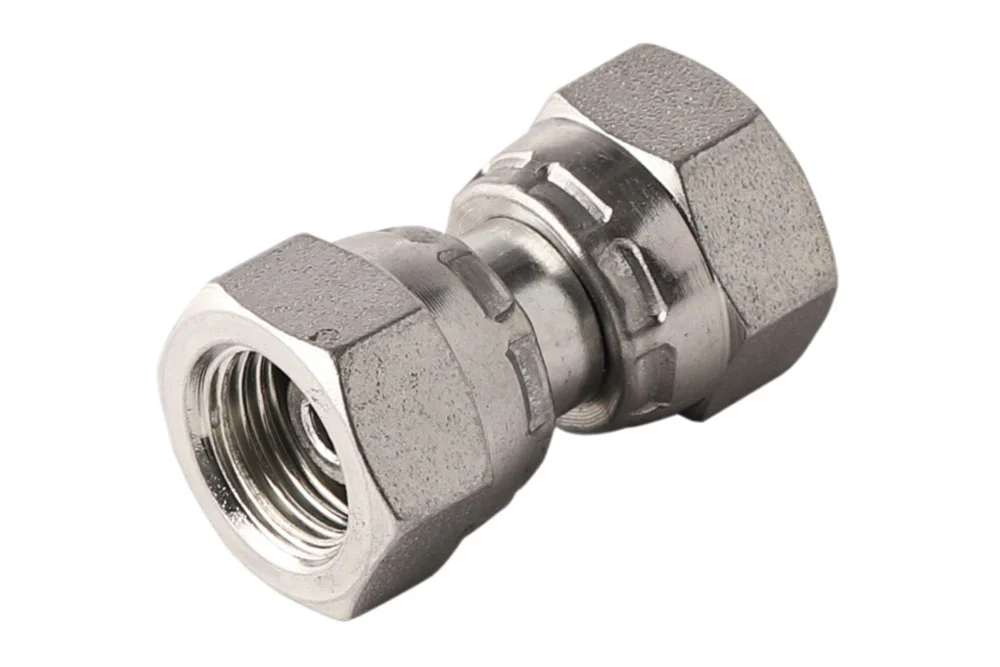

Adaptor, straight high-pressure connector, type A105, with internal BSP threads and swivel nuts (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A105-02	Adaptor GW BSP 1/8" / GW BSP 1/8"	-	400	In stock	Enquiry
TI-A105-04	Adapter GW BSP 1/4" / GW BSP 1/4"	-	400	In stock	Enquiry
TI-A105-06	Adaptor GW BSP 3/8" / GW BSP 3/8"	-	400	In stock	Enquiry
TI-A105-08	Adapter GW BSP 1/2" / GW BSP 1/2"	-	350	In stock	Enquiry
TI-A105-10	Adapter GW BSP 5/8" / GW BSP 5/8"	-	350	In stock	Enquiry
TI-A105-12	Adapter GW BSP 3/4" / GW BSP 3/4"	-	315	In stock	Enquiry
TI-A105-16	Adaptor GW BSP 1" / GW BSP 1"	-	250	In stock	Enquiry
TI-A105-20	Adaptor GW BSP 1.1/4" / GW BSP 1.1/4"	-	200	In stock	Enquiry
TI-A105-24	Adaptor GW BSP 1.1/2" / GW BSP 1.1/2"	-	160	In stock	Enquiry
TI-A105-32	Adaptor GW BSP 2" / GW BSP 2"	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adaptor, straight high-pressure connector, type A105, with internal BSP threads and swivel nuts (60° cone sealing). Material: carbon steel, galvanized.
