Can Adaptor 90Â° with GW BSP, carbon steel, type A115 withstand pressures typical for hydraulic systems and what is its maximum working pressure?

Adaptor 90Â° with GW BSP, carbon steel, type A115 is designed as a high-pressure adaptor with internal BSP threads and 60Â° cone swivel-nut sealing. Made of carbon steel and galvanized, it is suitable for many hydraulic applications; however, the exact maximum working pressure depends on thread size, wall thickness and specific manufacturing standards. Typical carbon-steel BSP swivel adaptors of this type commonly withstand pressures in the range used in hydraulic systems (often up to 250â420 bar for medium-duty sizes), but some heavy-duty variants can be rated higher. To determine the precise maximum working pressure for a specific Adaptor 90Â° with GW BSP, carbon steel, type A115, consult the manufacturerâs technical datasheet or product certification, which will list allowable working pressure by size and temperature. Without the manufacturerâs rating, do not assume safe operation at high hydraulic pressures.

Is Adaptor 90Â° with GW BSP, carbon steel, type A115 compatible with swivel nuts (60Â° cone) and internal BSP thread installation?

Yes. Adaptor 90Â° with GW BSP, carbon steel, type A115 is compatible with swivel nuts (60Â° cone) and designed for installation into internal BSP threads. The product description specifies a 90Â° high-pressure adaptor type A115 with internal BSP threads and swivel nuts featuring 60Â° cone sealing, so it matches both the swivel-nut (60Â° cone) sealing interface and internal BSP thread installation.

How should Adaptor 90Â° with GW BSP, carbon steel, type A115 be maintained to prevent galvanic corrosion and thread wear?

To prevent galvanic corrosion and minimize thread wear for Adaptor 90Â° with GW BSP, carbon steel, type A115 (90Â° high-pressure adaptor type A115 with internal BSP threads, featuring swivel nuts (60Â° cone sealing). Material: carbon steel, galvanized), follow these maintenance and handling steps: 1. Installation practices - Use matched materials when possible: connect to components with compatible metals (preferably carbon steel or similarly plated steels) to reduce galvanic potential. - Avoid direct contact with dissimilar metals (e.g., copper, aluminum, stainless steel) or use isolating fittings or dielectric sleeves between them. - Ensure swivel nuts are fully engaged and tightened to recommended torque to secure the 60Â° cone sealing and avoid micro-movements that accelerate wear. 2. Surface protection - Keep the galvanized coating intact: inspect for scratches, chips, or bare metal after assembly. - Touch up damaged galvanized areas promptly with appropriate zinc-rich repair paint or cold galvanizing compound to restore sacrificial protection. 3. Sealing and lubrication - Use appropriate thread lubricant/anti-seize compatible with galvanized steel and the fluid/service conditions (non-conductive or zinc-compatible where electrical isolation is needed). Avoid aggressive chloride-containing greases. - Apply a thin, even layer on threads and sealing faces prior to assembly to reduce galling and wear during initial tightening and later maintenance. 4. Environmental control - Minimize exposure to aggressive environments (marine, acidic, or high-humidity atmospheres). Where unavoidable, increase inspection frequency and consider additional protective measures (coverings, sacrificial anodes, or corrosion inhibitors). - Avoid prolonged contact with standing water or conductive fluids that can create electrolytic cells. 5. Routine inspection and maintenance - Periodically inspect threads, swivel nuts, and sealing cones for corrosion, pitting, or mechanical wear. - Check for loosening, leaking, or evidence of fretting between mating parts. Re-torque per specifications if permitted. - Replace severely corroded or worn adaptors rather than attempting extensive field repairs. 6. Cleaning and drying - Clean assemblies of contaminants (salt, dirt, chemicals) using compatible cleaners; rinse with fresh water if exposed to salt contaminants and dry thoroughly. - After cleaning, reapply protective lubricant or zinc touch-up as needed. 7. Storage and handling - Store unused Adaptor 90Â° with GW BSP, carbon steel, type A115 in a dry, ventilated area away from dissimilar metals and corrosive vapors. - Keep thread protectors in place until installation to prevent damage to threads and galvanized coating. Following these practices will extend service life, reduce galvanic corrosion risk, and limit thread wear for Adaptor 90Â° with GW BSP, carbon steel, type A115.

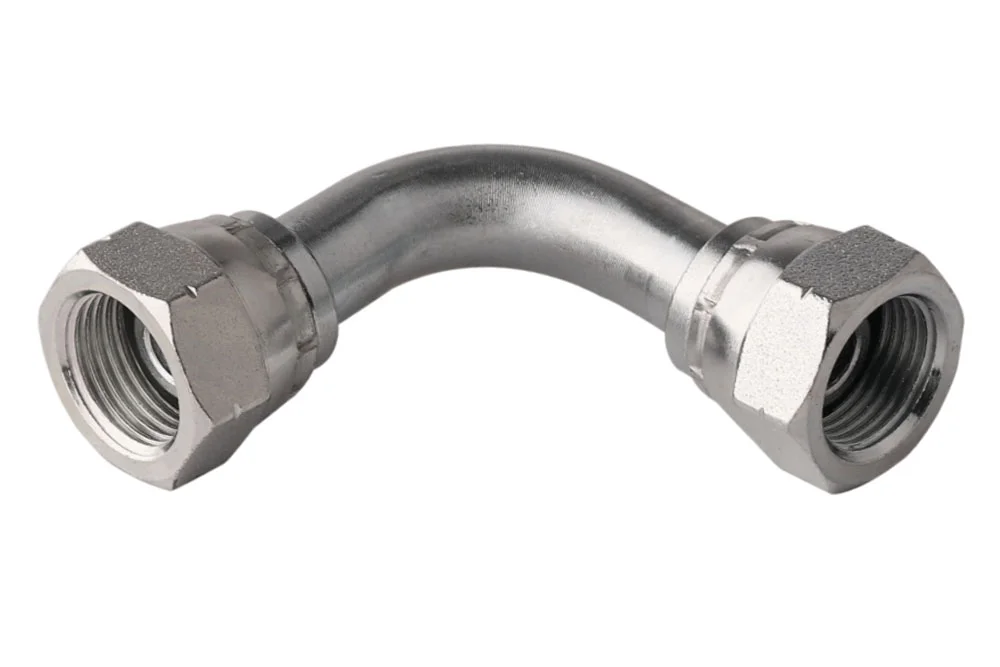

Adapter – elbow 90° curved with BSP female, carbon steel, type A115

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure 90° adapter type A115 with BSP female thread, with swivel nuts (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A115-02	Adapter 90° 1/8" BSP female / 1/8" BSP female	-	400	In stock	Enquiry
TI-A115-04	Adapter 90° 1/4" BSP female / 1/4" BSP female	-	400	In stock	Enquiry
TI-A115-06	Adapter 90° 3/8" BSP female / 3/8" BSP female	-	400	In stock	Enquiry
TI-A115-08	Adapter 90° 1/2" BSP female / 1/2" BSP female	-	350	In stock	Enquiry
TI-A115-10	Adapter 90° 5/8" BSP female / 5/8" BSP female	-	350	In stock	Enquiry
TI-A115-12	Adapter 90° 3/4" BSP female / 3/4" BSP female	-	315	In stock	Enquiry
TI-A115-16	Adapter 90° 1" BSP female / 1" BSP female	-	250	In stock	Enquiry
TI-A115-20	Adapter 90° 1.1/4" BSP female / 1.1/4" BSP female	-	200	In stock	Enquiry
TI-A115-24	Adapter 90° 1.1/2" BSP female / 1.1/2" BSP female	-	160	In stock	Enquiry
TI-A115-32	Adapter 90° 2" BSP female / 2" BSP female	-	125	In stock	Enquiry
