Can NON SKIVE SAE 6000 45Â° flange end, heavy series, carbon steel, type NSK312 be crimped onto 4SP/4SH/R13/R15 hoses using a TI-N sleeve without cutting the hose rubber?

Yes. The NON SKIVE SAE 6000 45Â° flange end, heavy series, carbon steel, type NSK312 can be crimped onto 4SP/4SH/R13/R15 hoses using a TI-N sleeve without cutting the hose rubber. The product description specifies it is a 45Â° NON SKIVE collar end (SFS 45) designed for crimping on those hose types with a TI-N crimping sleeve and explicitly states installation is performed without cutting the hose rubber. Material: carbon steel, galvanized. Ensure correct sleeve size and crimping parameters per manufacturer specifications and follow standard safety and quality checks after crimping.

Does NON SKIVE SAE 6000 45Â° flange end, heavy series, carbon steel, type NSK312 allow installation on 4SP/4SH/R13/R15 hoses with a TI-N sleeve without cutting the hose rubber?

Yes. The NON SKIVE SAE 6000 45Â° flange end, heavy series, carbon steel, type NSK312 is designed for crimping on 4SP/4SH/R13/R15 hoses using a TI-N crimping sleeve and permits installation without cutting the hose rubber, per the product description.

Is NON SKIVE SAE 6000 45Â° flange end, heavy series, carbon steel, type NSK312 compatible with TI-N sleeve crimping on 4SP/4SH/R13/R15 hoses without skiving?

Yes. NON SKIVE SAE 6000 45Â° flange end, heavy series, carbon steel, type NSK312 is compatible with TI-N sleeve crimping on 4SP/4SH/R13/R15 hoses without skiving. The product description explicitly states it is a NON SKIVE (no cutting of hose rubber required) 45Â° collar end (SFS 45) designed for crimping in hose types 4SP, 4SH, R13, and R15 using the TI-N crimping sleeve; material is carbon steel, galvanized, and installation is specified as without cutting the hose rubber, confirming compatibility.

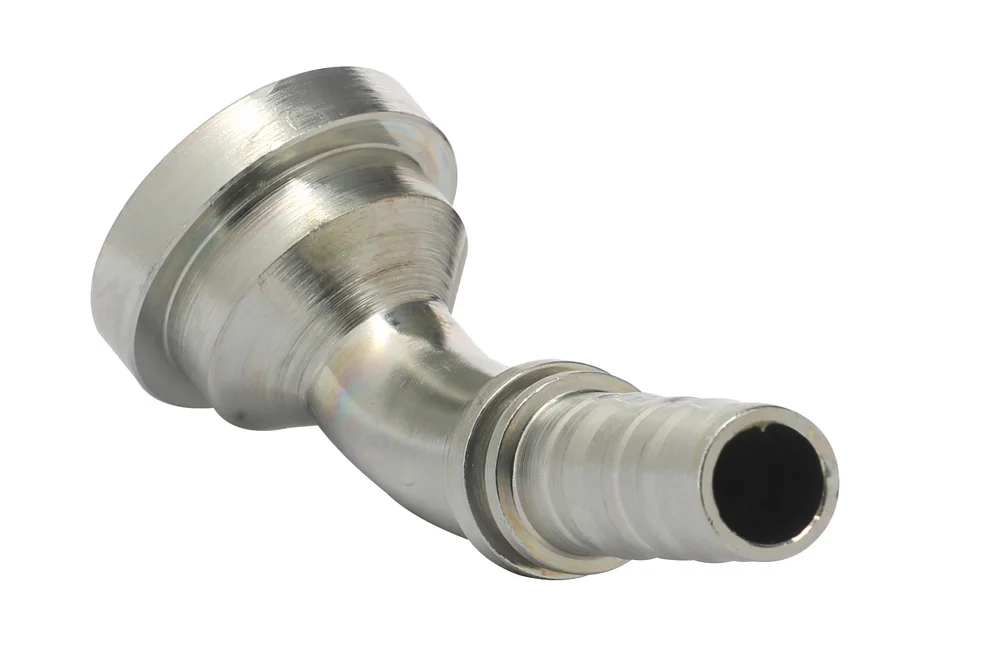

Fitting flange 45° NON SKIVE SAE 6000, series heavy, carbon steel, type NSK312

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Fitting flange 45° NON SKIVE SAE 6000 (SFS 45), series heavy, intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NSK312-12-12	Flange fitting 45° NON SKIVE SAE 6000 3/4", hose 3/4"	20	420	In stock	Enquiry
TI-NSK312-12-16	Flange fitting 45° NON SKIVE SAE 6000 3/4", hose 1"	25	420	In stock	Enquiry
TI-NSK312-16-12	Flange fitting 45° NON SKIVE SAE 6000 1", hose 3/4"	20	415	In stock	Enquiry
TI-NSK312-16-16	Flange fitting 45° NON SKIVE SAE 6000 1", hose 1"	25	415	In stock	Enquiry
TI-NSK312-16-20	Flange fitting 45° NON SKIVE SAE 6000 1", hose 1.1/4"	32	415	In stock	Enquiry
TI-NSK312-20-16	Flange fitting 45° NON SKIVE SAE 6000 1.1/4", hose 1"	25	415	In stock	Enquiry
TI-NSK312-20-20	Flange fitting 45° NON SKIVE SAE 6000 1.1/4", hose 1.1/4"	32	415	In stock	Enquiry
TI-NSK312-24-20	Flange fitting 45° NON SKIVE SAE 6000 1.1/2", hose 1.1/4"	32	415	In stock	Enquiry
TI-NSK312-24-24	Flange fitting 45° NON SKIVE SAE 6000 1.1/2", hose 1.1/2"	38	415	In stock	Enquiry
TI-NSK312-32-24	Flange fitting 45° NON SKIVE SAE 6000 2", hose 1.1/2"	38	415	In stock	Enquiry
TI-NSK312-32-32	Flange fitting 45° NON SKIVE SAE 6000 2", hose 2"	50	345	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange 45° NON SKIVE SAE 6000 (SFS 45), series heavy, intended for crimping onto hoses type 4SP, 4SH, R13 and R15 using a ferrule TI-N…. Assembly: without skiving gumy hose. Material: carbon steel, galvanized.
