Is the Adaptor 90Â° with GW BSP, stainless steel, type A115 compatible with both male and female BSP fittings and does the 60Â° cone seal ensure leak-free swivel connections?

Adaptor 90Â° with GW BSP, stainless steel, type A115 has internal (female) BSP threads and is fitted with a swivel nut featuring a 60Â° cone seal. That means it is designed to accept a male BSP (external) threaded counterpart that seals against the 60Â° cone. It is not intended to directly accept a female BSP fitting as a mating part because both sides are female threads. The 60Â° cone seal in the swivel nut provides a metal-to-metal sealing surface that, when properly tightened to a compatible male BSP cone, gives a robust, highâpressure, leak-resistant swivel connection. Correct compatibility and leak-free performance require matching male BSP threads with the appropriate 60Â° cone profile and proper assembly/torque; material AISI 316L ensures corrosion resistance for demanding environments.

Can Adaptor 90Â° with GW BSP, stainless steel, type A115 withstand corrosive environments and high pressures when made of AISI 316L?

Yes. Adaptor 90Â° with GW BSP, stainless steel, type A115 made of AISI 316L is well suited for corrosive environments and high-pressure applications. AISI 316L is a molybdenum-bearing stainless steel with excellent corrosion resistance against chlorides, seawater and many chemical media, and its low carbon content improves weldability and reduces sensitization. The A115 design-with internal BSP threads, a swivel nut, and a 60Â° cone seal-provides a reliable high-pressure sealing interface when installed correctly. Actual pressure and corrosion performance depend on system pressure ratings, temperature, media compatibility, and proper installation torque; verify against specific operating conditions and applicable pressure ratings/certifications before use.

Does Adaptor 90Â° with GW BSP, stainless steel, type A115 support swivel installation in tight spaces without loosening?

Yes. Adaptor 90Â° with GW BSP, stainless steel, type A115 supports swivel installation in tight spaces without loosening. The product description specifies a swivel nut (60Â° cone seal) and internal BSP threads, which allow rotatable connection while maintaining a sealed, pressure-rated joint. Made from AISI 316L stainless steel and designed as a 90Â° highâpressure adapter, it is intended for secure, leakâtight swivel assemblies even where access is limited. For safe use, ensure correct thread engagement, proper torque of the mating component, and that the cone seat is undamaged and clean before installation; follow any manufacturer torque and pressure ratings to avoid loosening under load or vibration.

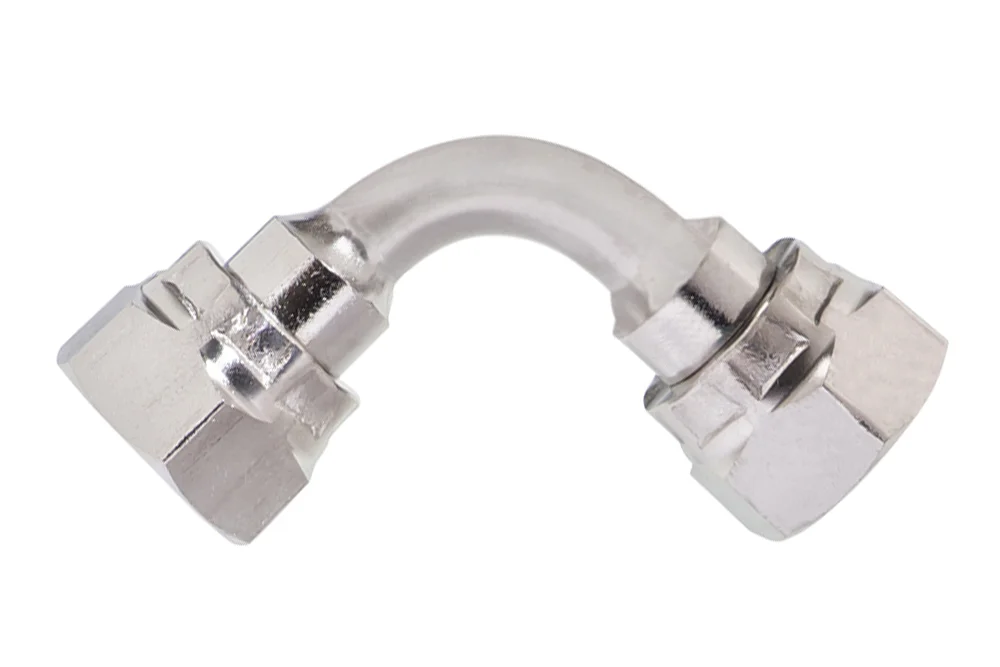

Adapter 90° with BSP female, stainless steel, type A115

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

High-pressure 90° adapter type A115 with BSP female thread, with a swivel nut (60° cone sealing) and with BSP female thread, with a swivel nut (60° cone sealing). Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A115-04-SS	Adapter 90° 1/4" BSP female / 1/4" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A115-06-SS	Adapter 90° 3/8" BSP female / 3/8" BSP female, AISI 316	-	400	In stock	Enquiry
TI-A115-08-SS	Adapter 90° 1/2" BSP female / 1/2" BSP female, AISI 316	-	350	In stock	Enquiry
TI-A115-12-SS	Adapter 90° 3/4" BSP female / 3/4" BSP female, AISI 316	-	315	In stock	Enquiry
TI-A115-16-SS	Adapter 90° 1" BSP female / 1" BSP female, AISI 316	-	250	In stock	Enquiry
TI-A115-20-SS	Adapter 90° 1.1/4" BSP female / 1.1/4" BSP female, AISI 316	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure 90° adapter type A115 with BSP female thread, with a swivel nut (60° cone sealing) and with BSP female thread, with a swivel nut (60° cone sealing). Material: AISI 316L.
