Is the Adaptor 90Â° with GW NPT, stainless steel, type A306 compatible with PTFE tape or liquid thread sealants for its internal NPT threads?

Yes. The Adaptor 90Â° with GW NPT, stainless steel, type A306 has internal NPT threads specified as âthread seal,â which means it is intended to be used with a sealing method on the NPT threads. PTFE (thread) tape and compatible liquid thread sealants are commonly used and suitable for AISI 316L stainless steel NPT connections, provided you choose a sealant rated for the media, pressure, and temperature of your system and compatible with stainless steel. Recommendations: - Use PTFE tape formulated for pressure/pipe use (not the thin plumberâs tape for low-pressure applications). Wrap the tape clockwise (as you view the male thread) to avoid unwrapping during assembly. - If using a liquid thread sealant, select one rated for NPT pipe threads, chemically compatible with system fluids, and suitable for the operating pressure and temperature. - Avoid sealants containing fillers or corrosive components that can attack stainless steel or contaminate the system. - Apply sealant sparingly to avoid excess material entering the bore and potential contamination. - Follow proper torque and assembly practices to prevent thread damage and ensure leak-tightness. If you need a specific product recommendation, provide the operating pressure, temperature, and fluid/medium.

Can I use pipe dope or PTFE tape on the internal NPT threads of Adaptor 90Â° with GW NPT, stainless steel, type A306?

Yes - you can use pipe dope or PTFE (thread seal) tape on the internal NPT threads of Adaptor 90Â° with GW NPT, stainless steel, type A306. The product description specifies internal NPT threads (thread seal), indicating the design allows a thread-sealing compound. Use a compatible PTFE tape rated for high pressure and chemical compatibility with AISI 316L stainless steel applications, or a suitable pipe dope rated for NPT and your media/temperature. Apply tape sparingly in the direction of thread engagement to avoid loose strands; for pipe dope follow manufacturer instructions. Ensure proper torque to avoid thread damage and verify leak-tightness after installation.

Does Adaptor 90Â° with GW NPT, stainless steel, type A306 require a specific thread sealant for internal NPT threads?

Adaptor 90Â° with GW NPT, stainless steel, type A306 does indicate in its description that the internal NPT threads are designated with "(thread seal)". This implies that the connection is intended to be sealed using an appropriate thread-sealing method. For internal NPT threads on stainless steel fittings, common and recommended options are: - PTFE (Teflon) tape rated for pipe threads. easy to apply, chemically compatible with many media, and suitable for stainless steel NPT joints when applied correctly (wrap in the direction of the thread, 2â3 wraps). - Pipe thread sealant paste (anaerobic or silicone-based, or non-hardening PTFE-based pastes). provides reliable sealing and can be preferred for high-pressure or critical-service applications. Choose a sealant compatible with the system fluid, operating pressure and temperature, and with stainless steel (AISI 316L). Avoid sealants containing materials that may cause galvanic corrosion or contamination of the process. Follow the manufacturerâs torque and assembly recommendations to prevent thread damage and ensure a proper seal. If the application has special requirements (e.g., oxygen service, aggressive chemicals, food/pharma), select a sealant approved for that service or consult the adaptor manufacturer for specific guidance.

Adapter 90° with NPT female, stainless steel, type A306

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

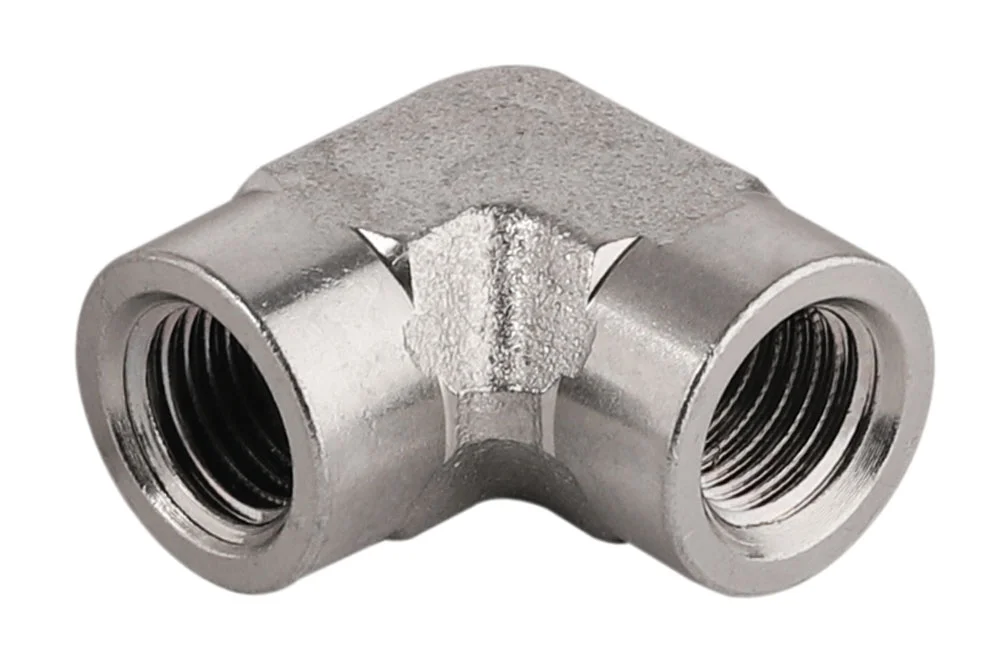

High-pressure 90° adapter type A306 with NPT female thread (thread sealing). Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A306-02-02-SS	Adapter 90° 1/8" NPT female / 1/8" NPT female, AISI 316	-	345	In stock	Enquiry
TI-A306-06-06-SS	Adapter 90° 3/8" NPT female / 3/8" NPT female, AISI 316	-	276	In stock	Enquiry
TI-A306-08-08-SS	Adapter 90° 1/2" NPT female / 1/2" NPT female, AISI 316	-	241	In stock	Enquiry
TI-A306-12-12-SS	Adapter 90° 3/4" NPT female / 3/4" NPT female, AISI 316	-	155	In stock	Enquiry
