Is the Adaptor - T-piece with GW BSP, carbon steel, type A111 suitable for high-pressure hydraulic systems with 3Ã BSP internal threads?

Yes. The Adaptor - T-piece with GW BSP, carbon steel, type A111 is suitable for high-pressure hydraulic systems that use three BSP internal (female) threaded ports. Its description . "Adaptor - high-pressure tee type A111 with internal thread 3 x BSP. Material: carbon steel, galvanized" . indicates it is specifically designed as a high-pressure tee fitting with three BSP internal threads and constructed from galvanized carbon steel, which provides mechanical strength and corrosion resistance appropriate for hydraulic service. However, ensure compatibility with your system by verifying: - the exact BSP size and thread standard (BSPP/BSPT) match your hoses/ports; - the fittingâs pressure rating meets or exceeds your systemâs maximum operating and surge pressures (check manufacturer pressure rating/spec sheet); - fluid compatibility with galvanized carbon steel and any seals used; - proper installation torque and sealing method to avoid leaks.

Does the Adaptor - T-piece with GW BSP, carbon steel, type A111 support sealing with PTFE or other thread sealants for 3Ã BSP internal threads?

Adaptor - T-piece with GW BSP, carbon steel, type A111 Format: The description specifies a high-pressure tee with 3Ã BSP internal threads, made of carbon steel, galvanized. BSP internal (female) threads typically require a suitable sealant-PTFE tape or liquid thread sealants are commonly used-to achieve a pressure-tight connection when mating with BSP male threads. However, compatibility depends on the mating fitting material, operating pressure, temperature, and media. For high-pressure applications verify manufacturer recommendations and any applicable standards; in some high-pressure or critical systems metal-to-metal seals, bonded seals or specific gasket/washer types may be required instead of or in addition to PTFE. When in doubt, consult the adaptor supplier or technical datasheet for approved thread sealing methods.

Can Adaptor - T-piece with GW BSP, carbon steel, type A111 be used with hydraulic hoses rated for different pressure classes on each branch?

Yes. but only if the hydraulic systemâs design ensures that the maximum working pressure applied at the fitting does not exceed the lowest pressure rating among the connected hoses and the fittingâs own rated pressure. Use caution and follow compatibility rules. Explanation: - Product: Adaptor - T-piece with GW BSP, carbon steel, type A111 is a high-pressure tee with three internal BSP threads, made of carbon steel and galvanized. It is a passive mechanical junction and does not internally equalize differing hose ratings. - Fitting rating: The tee has a manufacturer-specified maximum working pressure (MWP). All connected branches and the fitting must be rated for the systemâs maximum pressure. If one hose branch has a lower pressure class than the others, the system pressure must be limited to that lower class. - Practical implications: You may connect hoses of different pressure ratings to the three ports only if: 1) System operating pressure never exceeds the lowest-rated component (hose or fitting). 2) All thread sizes and BSP types match and are correctly tightened with appropriate sealing (PTFE, sealant or gasket per spec). 3) The fitting material (carbon steel, galvanized) is compatible with the fluid, temperature and environment. 4) Dynamic effects (pressure spikes, shock, pulsation) are controlled by accumulators, dampers or pressure relief valves so transient peaks donât overload the weakest branch. - Safety and standards: Follow relevant standards (e.g., ISO, EN, SAE) and the manufacturerâs installation and pressure tables. If uncertain, use hoses and fitting rated for the highest foreseeable pressure or consult the manufacturer/engineer for confirmation. - Recommendation: Prefer matching pressure classes or upsized components. If mixing is unavoidable, derate system pressure to the lowest-rated element and add protective devices against transients.

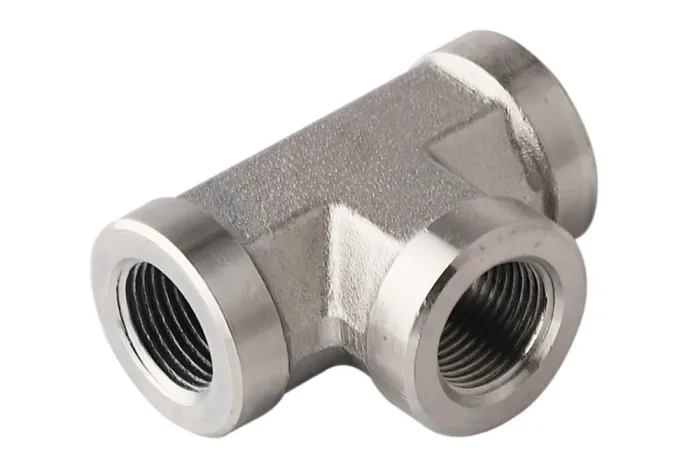

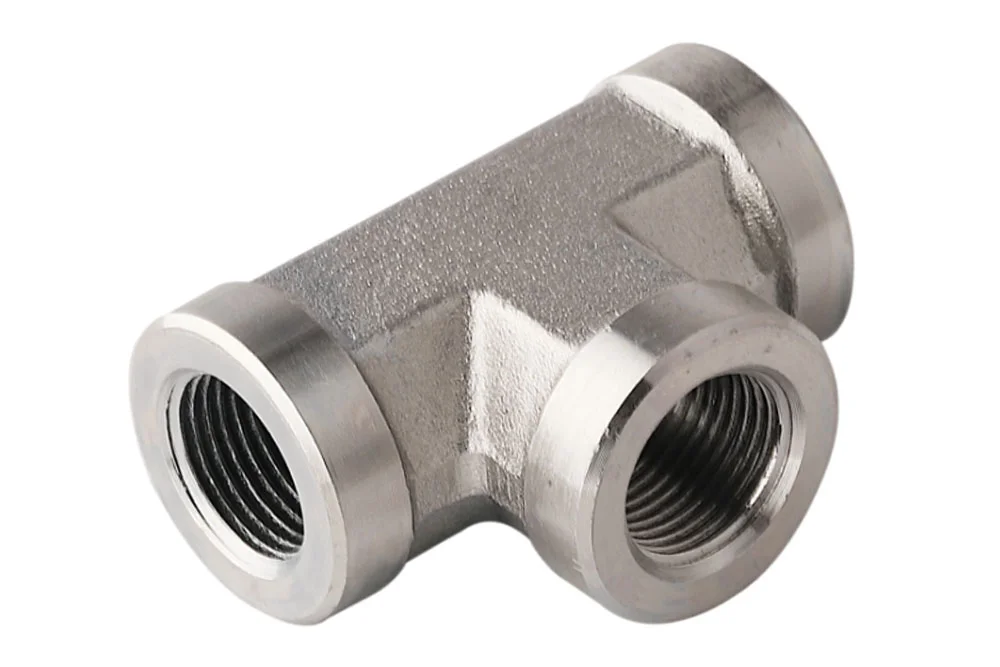

Adaptor – T-piece with GW BSP, carbon steel, type A111

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adaptor – high-pressure tee type A111 with internal thread 3 x BSP. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A111-02	Tee 3 x G 1/8 BSP	-	350	In stock	Enquiry
TI-A111-04	Tee 3 x G 1/4" BSP	-	350	In stock	Enquiry
TI-A111-06	Tee 3 x G threaded BSP 3/8"	-	250	In stock	Enquiry
TI-A111-08	Tee 3 x G 1/2" BSP	-	225	In stock	Enquiry
TI-A111-12	Tee 3 x G threaded BSP 3/4"	-	200	In stock	Enquiry
TI-A111-16	3-way tee 3 x G threaded BSP 1"	-	160	In stock	Enquiry
TI-A111-20	Tee 3 x G 1/4 BSP	-	160	In stock	Enquiry
TI-A111-24	Tee 3 x G threaded BSP 1.1/2"	-	160	In stock	Enquiry
TI-A111-32	3-way tee 3 x G threaded BSP 2"	-	100	In stock	Enquiry
