Is the Adaptor - elbow 90Â°, curved, with BSP/GW BSP socket, carbon steel, type A114 suitable for high-pressure hydraulic systems with 60Â° cone sealing?

Yes. The Adaptor - elbow 90Â°, curved, with BSP/GW BSP socket, carbon steel, type A114 is suitable for high-pressure hydraulic systems that use 60Â° cone sealing because its design explicitly includes external BSP thread with 60Â° cone sealing and a swivel nut with internal BSP thread also using 60Â° cone sealing. The 90Â° bent elbow shape permits more efficient medium flow while maintaining the required cone-seal interface. Made of carbon steel and galvanized, it provides the mechanical strength and corrosion resistance typical for high-pressure hydraulic applications. Note: confirm the specific working pressure rating and compatibility with your fluid and temperature conditions against system requirements and standards before installation.

Can Adaptor - elbow 90Â°, curved, with BSP/GW BSP socket, carbon steel, type A114 withstand corrosive environments after galvanization?

Adaptor - elbow 90Â°, curved, with BSP/GW BSP socket, carbon steel, type A114 after galvanization gains a protective zinc layer that improves resistance to corrosion compared with bare carbon steel. However, hot-dip or electro-galvanized coatings have limits: they protect well in mildly corrosive, indoor, or dry environments but are vulnerable in aggressive conditions (salt spray, marine, acidic or alkaline media, high humidity, prolonged wetting) where coating may chip, corrode, or allow underfilm corrosion. For high-pressure hydraulic use, galvanization can be acceptable for moderate environments, but for truly corrosive or marine applications consider stainless steel or additional coatings (e.g., nickel, epoxy) and verify compatibility with hydraulic fluid and operating temperature/pressure. Regular inspection and maintenance are recommended.

Does Adaptor - elbow 90Â°, curved, with BSP/GW BSP socket, carbon steel, type A114 require torque specifications for the swivel nut?

Adaptor - elbow 90Â°, curved, with BSP/GW BSP socket, carbon steel, type A114 does not explicitly require special torque specifications for the swivel nut in the provided description. The product description specifies a highâpressure hydraulic adapter with external BSP thread (60Â° cone sealing) and internal BSP thread, and a swivel nut (60Â° cone sealing). For 60Â° cone (BSP) fittings the proper assembly normally requires correct tightening to ensure cone seating and leakâfree connection. Typical practice is to follow manufacturer torque recommendations or standard assembly procedures for BSP cone fittings: handâtighten the swivel nut, then apply a qualified number of wrench turns (or specified torque) while preventing rotation of the fitting body, and finally pressurize and check for leaks. Because the description does not list numeric torque values, you should: - Refer to the manufacturerâs technical data sheet or installation instructions for A114 for exact torque figures. - If unavailable, use industry guidance for similar carbon steel BSP 60Â° cone fittings and apply conservative torque values appropriate to the thread size, taking care not to exceed limits that could damage the cone or nut. - Use proper tooling, thread lubricant if recommended, and perform leak testing after assembly. In summary: the description does not provide specific torque specifications for the swivel nut; follow manufacturer documentation or standard BSP 60Â° cone fitting assembly procedures and torque charts for the correct values.

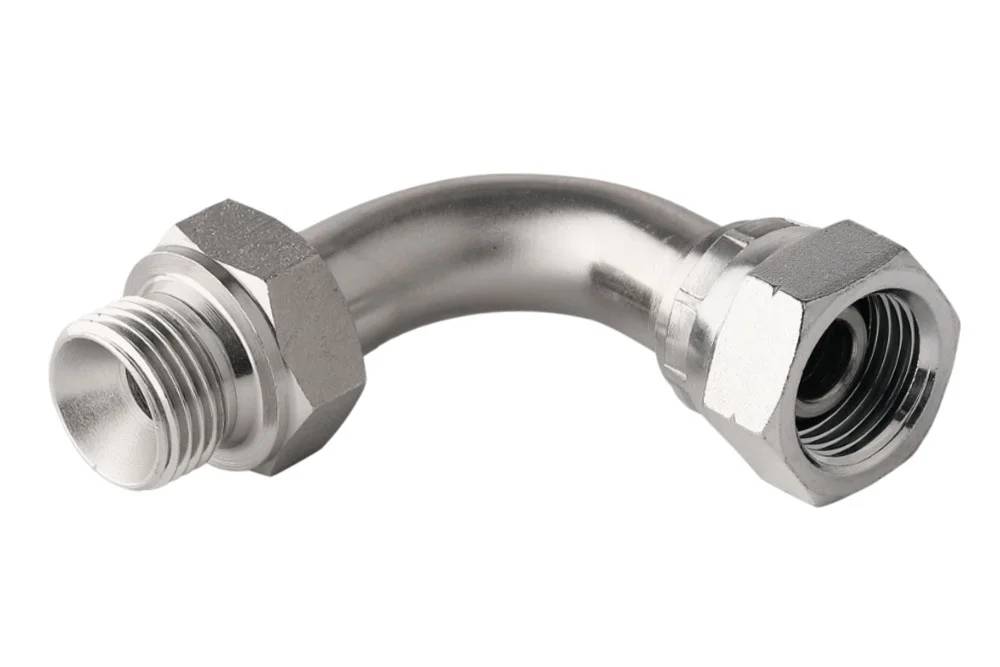

Adaptor – elbow 90°, curved, with BSP/GW BSP socket, carbon steel, type A114

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure hydraulic adapter, in the shape of a 90° bent elbow, with external BSP thread (60° cone sealing) and internal BSP thread, with a swivel nut (60° cone sealing). Bent elbows are used for more efficient medium flow. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A114-02	90° Adapter GZ BSP 1/8" / GW BSP 1/8"	-	400	In stock	Enquiry
TI-A114-04	90° Adapter GZ BSP 1/4" / GW BSP 1/4"	-	400	In stock	Enquiry
TI-A114-06	90° Adapter GZ BSP 3/8" / GW BSP 3/8"	-	400	In stock	Enquiry
TI-A114-08	90° Adapter GZ BSP 1/2" / GW BSP 1/2"	-	350	In stock	Enquiry
TI-A114-10	90° Adapter GZ BSP 5/8" / GW BSP 5/8"	-	350	In stock	Enquiry
TI-A114-12	90° Adapter GZ BSP 3/4" / GW BSP 3/4"	-	315	In stock	Enquiry
TI-A114-16	90° Adapter GZ BSP 1" / GW BSP 1"	-	250	In stock	Enquiry
TI-A114-20	90° Adapter GZ BSP 1.1/4" / GW BSP 1.1/4"	-	200	In stock	Enquiry
TI-A114-24	90° Adapter GZ BSP 1.1/2" / GW BSP 1.1/2"	-	160	In stock	Enquiry
TI-A114-32	90° Adapter GZ BSP 2" / GW BSP 2"	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure hydraulic adapter, in the shape of a 90° bent elbow, with external BSP thread (60° cone sealing) and internal BSP thread, with a swivel nut (60° cone sealing). Bent elbows are used for more efficient medium flow. Material: carbon steel, galvanized.
