Is the Adaptor 90Â° from GZ NPT/GW NPT, stainless steel, type A307 compatible with PTFE tape or liquid thread sealant for NPT connections?

Yes. The Adaptor 90Â° from GZ NPT/GW NPT, stainless steel, type A307 is compatible with PTFE tape or liquid thread sealant for NPT connections. Its external and internal NPT threads are specified as "thread seal" which indicates they are intended to be used with conventional NPT sealing methods. Use a proper PTFE tape rated for pipe threads (wrap 2â3 turns clockwise) or a compatible anaerobic/thread sealant formulated for NPT joints, and follow manufacturer cure times and application instructions. Ensure threads are clean and undamaged, do not over-apply sealant into the bore where it could contaminate the system, and tighten to recommended torque to achieve a pressure-tight metal-to-metal NPT joint without overstressing the adapter.

Can the Adaptor 90Â° from GZ NPT/GW NPT, stainless steel, type A307 withstand high-pressure cycles without thread sealant degradation?

Adaptor 90Â° from GZ NPT/GW NPT, stainless steel, type A307 is manufactured from AISI 316L and features both external and internal NPT threads with thread seal. AISI 316L offers excellent corrosion resistance and mechanical strength suitable for high-pressure environments. However, NPT threads seal by deformation of a thread sealant (tape or paste) and thread interference; repeated high-pressure cycling can fatigue the sealant or cause micro-movements that degrade thread sealing over time. If the product relies solely on removable thread sealant, long-term resistance to aggressive high-pressure cycles is not guaranteed. For reliable cyclic high-pressure service, use permanent metallurgical or mechanical sealing (e.g., welded joints, metal-to-metal seals, or properly torqued and inspected fittings) or reapply/inspect sealant per maintenance intervals.

Can Adaptor 90Â° from GZ NPT/GW NPT, stainless steel, type A307 be reused after disassembly without compromising NPT thread sealing?

Yes. Adaptor 90Â° from GZ NPT/GW NPT, stainless steel, type A307 can generally be reused after disassembly without compromising NPT thread sealing, provided several conditions are met: 1. Thread condition: Inspect both external and internal NPT threads for nicks, galling, flattening, or deformation. NPT relies on metal-to-metal contact and thread interference; minor surface wear is acceptable, but damaged threads that prevent uniform contact will compromise sealing. 2. Surface cleanliness: Remove all debris, old sealant remnants, oil and dirt. Contaminants impede proper thread engagement and seating. 3. Sealant practice: Because both external and internal threads are specified as âthread seal,â reapply an appropriate NPT thread sealant (PTFE tape or anaerobic/sealant paste compatible with AISI 316L and the service media). Apply correctly (wrap direction, number of wraps, or correct paste amount) to avoid excess that could contaminate the system. 4. Torque and assembly: Reassemble to recommended torque or make-up guidelines for NPT fittings. hand-tight plus specified turns or use calibrated torque. to ensure proper thread deformation and seal without over-stressing the stainless threads. 5. Pressure and service verification: For high-pressure service, perform pressure/leak testing after reassembly per applicable standards. If the adapter served in aggressive media, high temperature, or cyclic/high-pressure applications, consider more stringent inspection or replacement. When to replace: Replace rather than reuse if threads show visible damage, if prior assembly used excessive torque/galling, if sealant removal required aggressive cleaning that altered thread form, or if the fittingâs service history includes severe conditions that may have fatigued the material. With intact threads, proper cleaning and reapplication of compatible thread sealant, reuse is acceptable without compromising NPT sealing.

Adapter 90° with NPT male/NPT female, stainless steel, type A307

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel
Standard length [m]	2

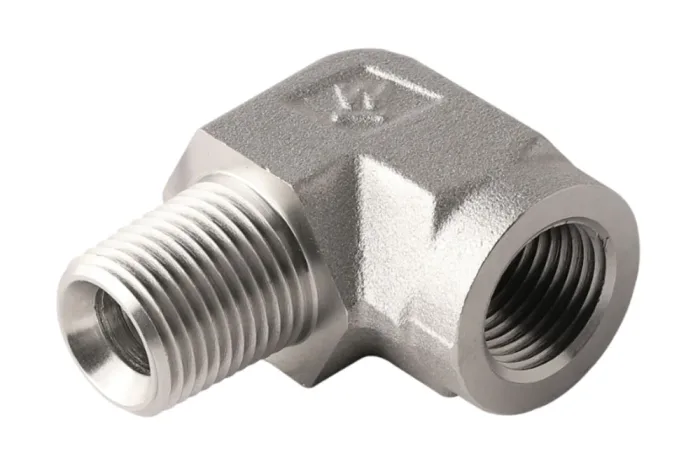

High-pressure 90° adapter type A307 with NPT male thread (thread sealing) and with NPT female thread (thread sealing). Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A307-02-02-SS	Adapter 90° 1/8" NPT male / 1/8" NPT female, AISI 316	-	345	In stock	Enquiry
TI-A307-04-04-SS	Adapter 90° 1/4" NPT male / 1/4" NPT female, AISI 316	-	345	In stock	Enquiry
TI-A307-06-06-SS	Adapter 90° 3/8" NPT male / 3/8" NPT female, AISI 316	-	276	In stock	Enquiry
TI-A307-08-08-SS	Adapter 90° 1/2" NPT male / 1/2" NPT female, AISI 316	-	241	In stock	Enquiry
TI-A307-12-12-SS	Adapter 90° 3/4" NPT male / 3/4" NPT female, AISI 316	-	155	In stock	Enquiry
TI-A307-16-16-SS	Adapter 90° 1" NPT male / 1" NPT female, AISI 316	-	138	In stock	Enquiry
TI-A307-20-20-SS	Adapter 90° 1.1/4" NPT male / 1.1/4" NPT female, AISI 316	-	112	In stock	Enquiry
