Is the Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 suitable for use with hydraulic systems operating above 3000 psi?

Yes. The Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 is designed for high-pressure applications and uses an SAE 3000 flange rating, which corresponds to a pressure class up to 3000 psi. It features a 60Â° cone external BSP thread sealing and an SAE 3000 flange that can use an Oâring or gasket in the flange groove, and is made of carbon steel (galvanized) suitable for typical hydraulic service. Caveats: do not exceed the rated 3000 psi, confirm system pressure peaks and dynamic/impact loads (pressure spikes can exceed steadyâstate rating), ensure correct sealing components (Oâring/gasket compatible with fluid and temperature), verify material compatibility (carbon steel with fluid, temperature, and environment), and follow proper installation torque and flange/bolting specifications. If your system can produce pressures above 3000 psi (including transients), select a higherârated adaptor or consult the manufacturer/engineer for a safety assessment.

Can the Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 be used with fluids requiring cone and O-ring sealing compatibility?

Yes. The Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 is designed for both 60Â° cone sealing on the external BSP thread and O-ring sealing (or other gasket in the flange groove) for the SAE 3000 flange. That means it can be used with fluids that require cone sealing on the BSP side and O-ring sealing on the flange side, provided the selected Oâring/gasket material is chemically compatible with the fluid and suitable for the operating pressure and temperature. Also confirm galvanizing and carbon steel are acceptable for the fluid and environment (corrosion, temperature) before use.

Does the Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 require special installation torque for the 60Â° cone?

Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 does require attention to correct assembly but does not normally need a special, unique torque value specifically for the 60Â° cone beyond standard good-practice tightening. The 60Â° cone sealing relies on metal-to-metal contact and correct alignment; overtightening can deform the cone or thread and damage the sealing face, while undertightening can cause leaks. Follow these guidelines: - Use manufacturerâs recommended torque if provided for the specific size and thread; this is the primary reference. - If no manufacturer torque is available, apply standard torque values for the BSP/metric thread size and material (carbon steel), using industry tables as a basis, and tighten to achieve proper cone seatingâtypically a controlled final torque or a measured turn-after-tightening (e.g., a specified fraction of a turn past finger-tight) per common hydraulic fitting practice. - For the SAE 3000 flange, ensure the correct gasket or O-ring is installed in the flange groove and tighten flange bolts to the flange torque specification for SAE 3000 class to ensure flange sealing; flange bolt torque is separate from the cone seating torque. - Use clean, undamaged mating surfaces and avoid lubricants on sealing faces; light anti-seize or thread lubricant may be used on threads only if recommended by supplier. - Inspect sealing after assembly and pressure-test at appropriate pressure. If in doubt, consult the adaptor supplier or manufacturer for exact torque figures and assembly procedure. In summary: Adaptor with GZ BSP/flange SAE 3000, carbon steel, type A118 does not require an unusual proprietary torque for the 60Â° cone, but proper controlled tightening per manufacturer or standard torque tables and correct flange bolt torques are essential to achieve a reliable seal.

Adapter with BSP male/flange SAE 3000, carbon steel, type A118

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

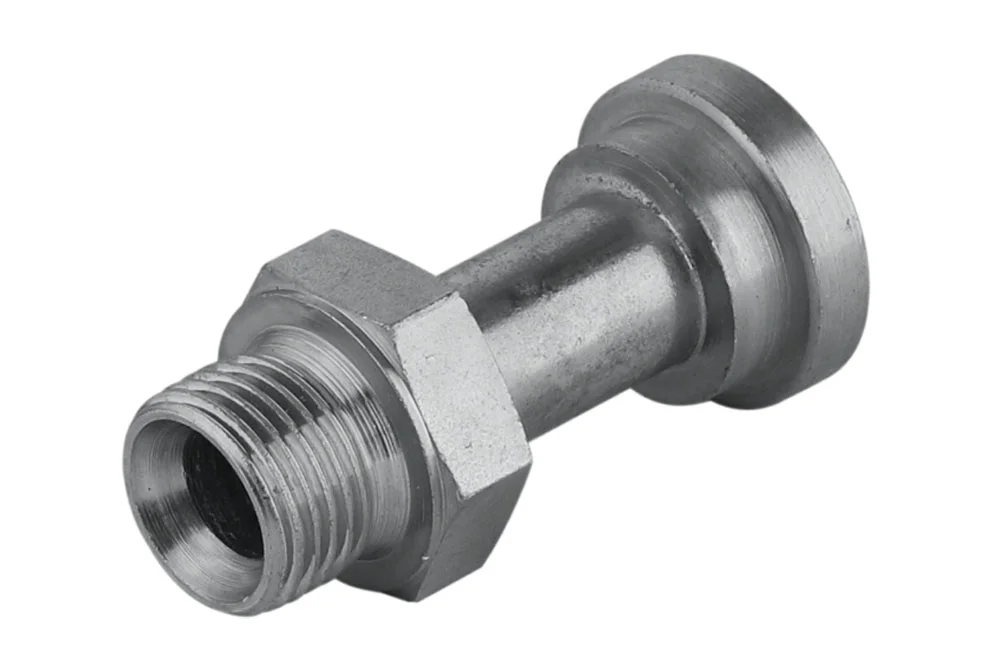

High-pressure adapter type A118 with BSP male thread (60° cone sealing) and with an SAE 3000 flange (O-ring or other gasket in the flange groove). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A118-08	Flange adapter SAE 3000 1/2" / 1/2" BSP	-	345	In stock	Enquiry
TI-A118-12	Flange adapter SAE 3000 3/4" / 3/4" BSP	-	315	In stock	Enquiry
TI-A118-16	Flange adapter SAE 3000 1" / 1" BSP	-	250	In stock	Enquiry
TI-A118-20	Flange adapter SAE 3000 1.1/4" / 1.1/4" BSP	-	200	In stock	Enquiry
TI-A118-24	Flange adapter SAE 3000 1.1/2" / 1.1/2" BSP	-	160	In stock	Enquiry
TI-A118-32	Flange adapter SAE 3000 2" / 2" BSP	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter type A118 with BSP male thread (60° cone sealing) and with an SAE 3000 flange (O-ring or other gasket in the flange groove). Material: carbon steel, galvanized.
