Is the Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 compatible with both male (external BSP 60Â° cone) and female BSP threaded connections?

Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 is designed with an external BSP thread featuring a 60Â° cone seal and an internal BSP thread. This configuration makes it compatible with a male (external BSP 60Â° cone) connection on the adapterâs male side and with a female BSP threaded connection on the adapterâs internal side. In other words, it mates to a corresponding male cone-ended fitting on the external thread and to a corresponding male threaded fitting (or female port) on the internal thread, allowing connection between components with matching BSP cone and BSP thread types.

Does the Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 require sealant for the 60Â° cone external BSP thread?

Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 Format: The description states the external BSP thread has a 60Â° cone seal. For 60Â° cone (metal-to-metal) BSP external threads a separate sealant (PTFE tape or pipe dope) is generally not required if the cone surfaces are clean, undamaged and correctly tightened because the metal cone provides the primary seal. However, in practice many installers apply a suitable thread sealant to improve leak protection, ease assembly/disassembly, and compensate for minor imperfections. Follow manufacturer torque and installation instructions; if system exposure to vibration or corrosive media is expected, using an appropriate sealant is recommended.

Can Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 withstand specified high-pressure ratings?

Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 Format: Based on the provided description (Reducer adapter, high-pressure type A103, with external BSP thread (60Â° cone seal) and internal BSP thread. Material: carbon steel, galvanized), whether it can withstand specified high-pressure ratings cannot be confirmed without explicit pressure rating data or applicable standards. Key points to determine suitability: - Design intent: The product is described as "high-pressure type A103", which implies it is intended for higher-pressure applications, but the term alone is not a certified pressure rating. - Sealing: The external BSP with 60Â° cone seal provides a metal-to-metal pressure-resistant sealing surface common in high-pressure fittings; combined with correct thread engagement and surface condition, it supports higher pressures than simple parallel-thread seals. - Material: Carbon steel (galvanized) offers good strength for pressure applications, but allowable working pressure depends on grade, heat treatment, wall thickness, and component geometry. - Threaded connection limitations: Threaded fittings' pressure capacity is influenced by thread engagement length, thread quality, and mating part strength. Internal BSP female threads may be the weaker element, especially if mating parts are softer or have reduced wall thickness. - Corrosion/galvanizing: Galvanizing can affect thread fit and sealing; improper coating thickness or damage can reduce seal integrity under pressure. - Safety margins and standards: Confirming compliance requires reference to relevant standards (e.g., EN, ISO, or DIN for BSP fittings, or manufacturer specifications) and tested working pressure (W.P.) and test pressure values. - Operating conditions: Temperature, media (corrosive/abrasive), pressure spikes, and cyclic loading all affect suitability. Conclusion: Without manufacturer-stated working pressure/test pressure, applicable standards, material grade, and dimensional details, you cannot definitively assert that Adaptor - reduction from GZ/GW BSP, carbon steel, type A103 Format will withstand specific high-pressure ratings. To confirm, obtain the productâs certified pressure ratings, material specification, and testing/standards compliance from the manufacturer.

Adaptor – reduction from GZ/GW BSP, carbon steel, type A103

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

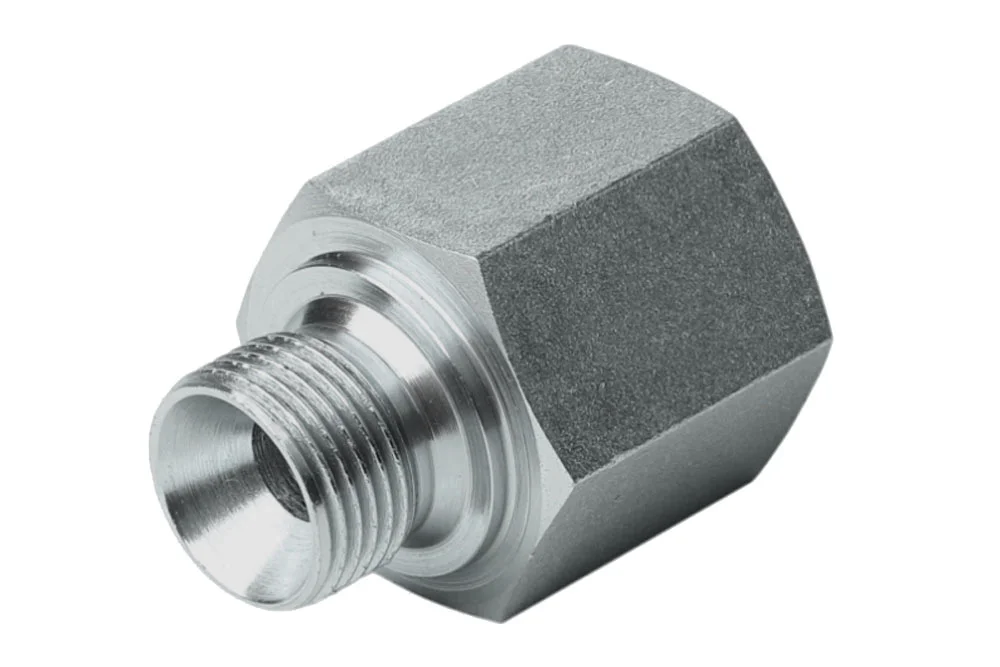

Reducer adapter, high-pressure type A103, with external BSP thread (60° cone seal) and internal BSP thread. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A103-02-02	Adapter GZ BSP 1/8" / GW BSP 1/8"	-	350	In stock	Enquiry
TI-A103-02-04	Adaptor GZ BSP 1/8" / GW BSP 1/4"	-	350	In stock	Enquiry
TI-A103-02-06	Adapter GZ BSP 1/8" / GW BSP 3/8"	-	250	In stock	Enquiry
TI-A103-02-08	Adaptor GZ BSP 1/8" / GW BSP 1/2"	-	225	In stock	Enquiry
TI-A103-04-02	Adaptor GZ BSP 1/4" / GW BSP 1/8"	-	350	In stock	Enquiry
TI-A103-04-04	Adaptor GZ BSP 1/4" / GW BSP 1/4"	-	350	In stock	Enquiry
TI-A103-04-06	Adaptor GZ BSP 1/4" / GW BSP 3/8"	-	250	In stock	Enquiry
TI-A103-04-08	Adaptor GZ BSP 1/4" / GW BSP 1/2"	-	225	In stock	Enquiry
TI-A103-04-12	Adaptor GZ BSP 1/4" / GW BSP 3/4"	-	200	In stock	Enquiry
TI-A103-06-04	Adaptor GZ BSP 3/8" / GW BSP 1/4"	-	250	In stock	Enquiry
TI-A103-06-06	Adapter GZ BSP 3/8" / GW BSP 3/8"	-	250	In stock	Enquiry
TI-A103-06-08	Adapter GZ BSP 3/8" / GW BSP 1/2"	-	225	In stock	Enquiry
TI-A103-06-12	Adapter GZ BSP 3/8" / GW BSP 3/4"	-	200	In stock	Enquiry
TI-A103-06-16	Adaptor GZ BSP 3/8" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-08-02	Adaptor GZ BSP 1/2" / GW BSP 1/8"	-	225	In stock	Enquiry
TI-A103-08-04	Adaptor GZ BSP 1/2" / GW BSP 1/4"	-	225	In stock	Enquiry
TI-A103-08-06	Adaptor GZ BSP 1/2" / GW BSP 3/8"	-	225	In stock	Enquiry
TI-A103-08-08	Adaptor GZ BSP 1/2" / GW BSP 1/2"	-	225	In stock	Enquiry
TI-A103-08-12	Adaptor GZ BSP 1/2" / GW BSP 3/4"	-	200	In stock	Enquiry
TI-A103-08-16	Adaptor GZ BSP 1/2" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-08-20	Adaptor GZ BSP 1/2" / GW BSP 1.1/4"	-	160	In stock	Enquiry
TI-A103-10-10	Adapter GZ BSP 5/8" / GW BSP 5/8"	-	200	In stock	Enquiry
TI-A103-10-16	Adapter GZ BSP 5/8" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-12-04	Adapter GZ BSP 3/4" / GW BSP 1/4"	-	200	In stock	Enquiry
TI-A103-12-06	Adapter GZ BSP 3/4" / GW BSP 3/8"	-	200	In stock	Enquiry
TI-A103-12-08	Adaptor GZ BSP 3/4" / GW BSP 1/2"	-	200	In stock	Enquiry
TI-A103-12-12	Adapter GZ BSP 3/4" / GW BSP 3/4"	-	200	In stock	Enquiry
TI-A103-12-16	Adaptor GZ BSP 3/4" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-12-20	Adapter GZ BSP 3/4" / GW BSP 1.1/4"	-	160	In stock	Enquiry
TI-A103-12-24	Adapter GZ BSP 3/4" / GW BSP 1.1/2"	-	160	In stock	Enquiry
TI-A103-16-04	Adaptor GZ BSP 1" / GW BSP 1/4"	-	160	In stock	Enquiry
TI-A103-16-06	Adaptor GZ BSP 1" / GW BSP 3/8"	-	160	In stock	Enquiry
TI-A103-16-08	Adaptor GZ BSP 1" / GW BSP 1/2"	-	160	In stock	Enquiry
TI-A103-16-12	Adapter GZ BSP 1" / GW BSP 3/4"	-	160	In stock	Enquiry
TI-A103-16-16	Adapter GZ BSP 1" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-16-20	Adaptor GZ BSP 1" / GW BSP 1.1/4"	-	160	In stock	Enquiry
TI-A103-16-24	Adaptor GZ BSP 1" / GW BSP 1.1/2"	-	160	In stock	Enquiry
TI-A103-16-32	Adaptor GZ BSP 1" / GW BSP 2"	-	100	In stock	Enquiry
TI-A103-20-08	Adaptor GZ BSP 1.1/4" / GW BSP 1/2"	-	160	In stock	Enquiry
TI-A103-20-12	Adaptor GZ BSP 1.1/4" / GW BSP 3/4"	-	160	In stock	Enquiry
TI-A103-20-16	Adaptor GZ BSP 1.1/4" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-20-20	Adaptor GZ BSP 1.1/4" / GW BSP 1.1/4"	-	160	In stock	Enquiry
TI-A103-20-24	Adaptor GZ BSP 1.1/4" / GW BSP 1.1/2"	-	160	In stock	Enquiry
TI-A103-20-32	Adaptor GZ BSP 1.1/4" / GW BSP 2"	-	100	In stock	Enquiry
TI-A103-24-08	Adaptor GZ BSP 1.1/2" / GW BSP 1/2"	-	160	In stock	Enquiry
TI-A103-24-12	Adaptor GZ BSP 1.1/2" / GW BSP 3/4"	-	160	In stock	Enquiry
TI-A103-24-16	Adaptor GZ BSP 1.1/2" / GW BSP 1"	-	160	In stock	Enquiry
TI-A103-24-20	Adaptor GZ BSP 1.1/2" / GW BSP 1.1/4"	-	160	In stock	Enquiry
TI-A103-24-24	Adaptor GZ BSP 1.1/2" / GW BSP 1.1/2"	-	160	In stock	Enquiry
TI-A103-24-32	Adaptor GZ BSP 1.1/2" / GW BSP 2"	-	100	In stock	Enquiry
TI-A103-32-16	Adaptor GZ BSP 2" / GW BSP 1"	-	100	In stock	Enquiry
TI-A103-32-20	Adaptor GZ BSP 2" / GW BSP 1.1/4"	-	100	In stock	Enquiry
TI-A103-32-24	Adaptor GZ BSP 2" / GW BSP 1.1/2"	-	100	In stock	Enquiry
TI-A103-32-32	Adaptor GZ BSP 2" / GW BSP 2"	-	100	In stock	Enquiry
TI-A103-40-40	Adaptor GZ BSP 2.1/2" / GW BSP 2.1/2"	-		In stock	Enquiry
