Is the 90Â° adjustable double angle plug connector with male thread, type R50 compatible with standard pneumatic tubing and fittings at up to 16 bar?

Yes. The 90Â° adjustable double angle plug connector with male thread, type R50 is compatible with standard pneumatic tubing and fittings for use up to 16 bar. Its specifications state a working pressure of 16 bar, compatible working media (vacuum and air), NBR sealing, and nickel-plated brass construction.components and materials commonly used in standard pneumatic systems. The design is intended for connecting pneumatic components without loss of sealing on the mechanical and pneumatic sides, and the operating temperature range (â20Â°C to +80Â°C) is typical for such applications. Ensure mating fittings and tubing use compatible thread type and sizes and that NBR seals meet your chemical/temperature requirements.

Can the 90Â° adjustable double angle plug connector with male thread, type R50 be used with vacuum systems and at what temperatures does it maintain a reliable seal?

Yes. The 90Â° adjustable double angle plug connector with male thread, type R50 can be used with vacuum systems (vacuum listed as a working medium). It maintains a reliable seal when used within its specified operating temperature range of -20Â°C to +80Â°C. The connector uses NBR sealing, is nickelâplated brass, and is rated to 16 bar working pressure; for longâterm vacuum performance ensure NBR compatibility with your specific vacuum level and media.

Does the 90Â° adjustable double angle plug connector with male thread, type R50 require specific torque for the external thread to ensure sealing?

The 90Â° adjustable double angle plug connector with male thread, type R50 does not require a special or unique torque value beyond standard good-practice tightening. Its design (nickel-plated brass, NBR sealing) and stated feature âeasy and quick to use for multiple assemblies without loss of sealing on the mechanical and pneumatic sidesâ indicate the sealing relies on the NBR seal and proper mechanical engagement of the external thread rather than a precise torque specification. Recommended practice: - Tighten to a firm, hand-initiated engagement followed by a moderate wrench turn sufficient to compress the NBR seal evenlyâavoid excessive torque that could damage the seal or deform the brass thread. - If assembling into a calibrated port or into components with manufacturer torque specs, follow the port/component torque recommendations for brass threads (typical ranges for similar brass pneumatic fittings are modest; if required, consult the mating componentâs documentation). - Use thread sealant only if specified by the mating part; the connectorâs NBR sealing typically provides the pneumatic seal. If a critical application requires a numerical torque value (e.g., to meet installation control or warranty), request the exact mating-port specifications or contact the connector manufacturer for a recommended torque value.

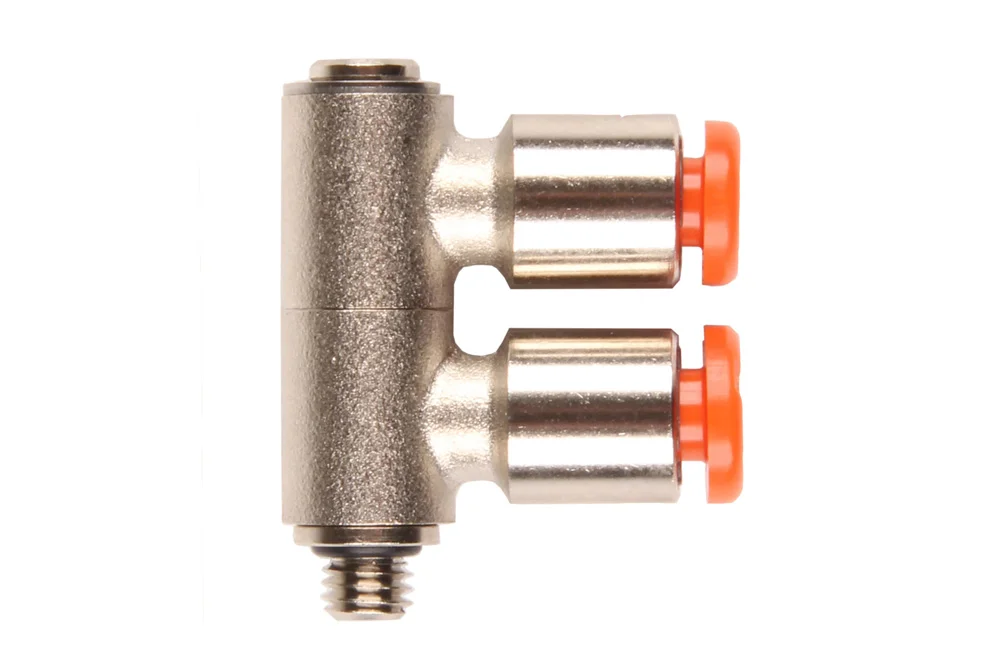

Coupling push-in angled 90°, adjustable double with a thread external, type R50

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Coupling push-in angled 90°, adjustable double with a thread external, type R50, Intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2033002	Fitting angled double adjustable R33 hose 5 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L50001	Fitting angled double adjustable RL50 hose 4 mm, M5 male	-	16	In stock	Enquiry
MW-2L50002	Fitting angled double adjustable RL50 hose 4 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L50007	Fitting angled double adjustable RL50 hose 6 mm, M5 male	-	16	In stock	Enquiry
MW-2L50008	Fitting angled double adjustable RL50 hose 6 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L50009	Fitting angled double adjustable RL50 hose 6 mm, 1/4" BSP male	-	16	In stock	Enquiry
MW-2L50010	Fitting angled double adjustable RL50 hose 8 mm, 1/8" BSP male	-	16	In stock	Enquiry
MW-2L50011	Fitting angled double adjustable RL50 hose 8 mm, 1/4" BSP male	-	16	In stock	Enquiry
MW-2L50013	Fitting angled double adjustable RL50 hose 10 mm, 1/4" BSP male	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Coupling push-in angled 90°, adjustable double with a thread external, type R50, Intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.
