Is the 90Â° angle plug connector, inch version, type PULC compatible with standard 1" flexible pneumatic hoses and easy to install without special tools?

Yes. The 90Â° angle plug connector, inch version, type PULC is designed specifically for inch-calibrated outer-diameter flexible pneumatic hoses, so it is compatible with standard 1" flexible pneumatic hoses. Itâs described as an economical solution that is âeasy and quick to use,â made of plastic, rated to 10 bar working pressure (vacuum 0.99 bar) and â0Â°C to +60Â°C, with NBR sealing. No special tools are required for typical push-in style installation; itâs intended for simple, rapid hose connection. Ensure your hose outer diameter matches the inch calibration and that application pressure/temperature are within the specified limits.

Can the 90Â° angle plug connector, inch version, type PULC withstand continuous use at 10 bar and maintain a reliable seal with NBR under typical shop temperatures?

Yes. The 90Â° angle plug connector, inch version, type PULC is rated for a working pressure of 10 bar and uses NBR sealing, with an operating temperature range of 0Â°C to +60Â°C. Under typical shop temperatures within that range and at continuous 10 bar, it should maintain a reliable seal and function as intended. Note that performance depends on correct hose fit, proper installation, and avoiding temperatures, pressures or chemical exposures outside the specified limits.

Does the 90Â° angle plug connector, inch version, type PULC resist chemical exposure common in workshops (oil, coolant)?

No. the 90Â° angle plug connector, inch version, type PULC is not designed to resist significant chemical exposure common in workshops (oil, coolant). Based on the provided specification, key points that limit chemical resistance are: - Material: plastic. unspecified polymer; many commodity plastics (e.g., polyethylene, polypropylene, ABS) have limited resistance to oils, coolants and solvents used in workshops. Without a specific polymer listed, you cannot assume strong chemical compatibility. - Sealing: NBR (nitrile rubber). NBR has good resistance to mineral oils and many hydraulic fluids, but its resistance to some coolants, skydrol-type fluids, brake fluids, and aggressive solvents is limited. Prolonged or repeated exposure to certain oils, glycol-based coolants, or aggressive chemicals can cause swelling, hardening or loss of sealing performance. - Operating temperature: 0Â°C to +60Â°C. chemical degradation can accelerate with temperature; many workshop environments may expose fittings to higher local temperatures, reducing longevity. - Intended use: described as an economical solution for flexible pneumatic hoses. pneumatic applications typically involve compressed air, not continuous contact with oils/coolants; the design and materials reflect that application. Recommendation: If the connector will be exposed to workshop oils, coolants or solvents, verify the exact plastic type and perform chemical compatibility checks, or choose a connector specified for oil/chemical resistance (e.g., metal body with FKM/Viton or PTFE seals).

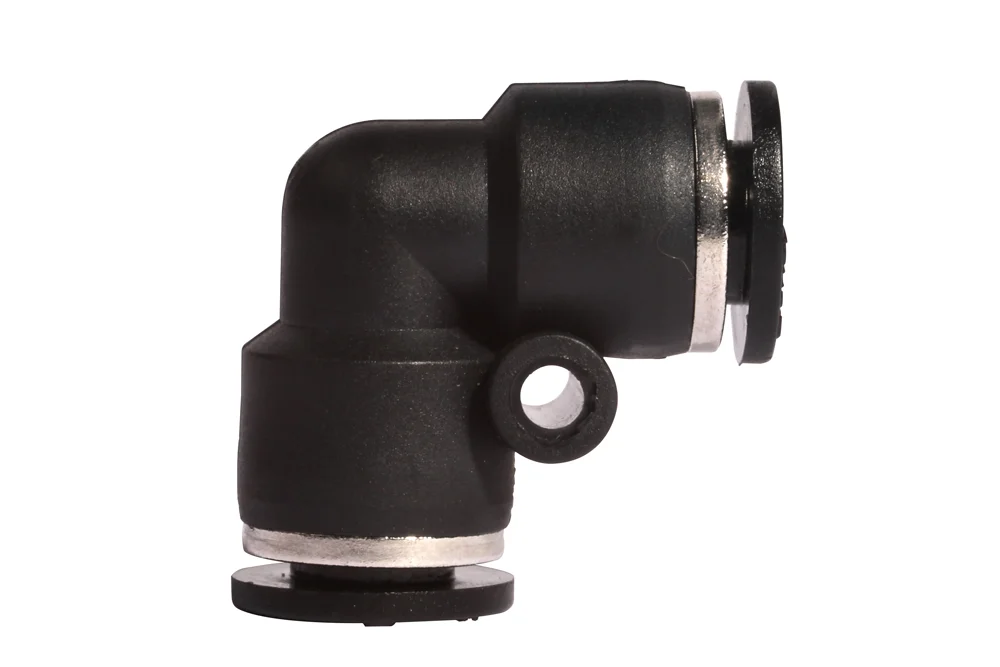

90° angle plug connector, inch version, type PULC

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

90° angled plug connector with hose plug connections for inch diameter hoses, series S, type PULC. An economical solution for connecting flexible pneumatic hoses with an inch calibrated outer diameter. Easy and quick to use. Material: plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: from 0°C to +60°C. Sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SH-PULC-02,5	PULC angle connector, hose 5/32	-	10	In stock	Enquiry
SH-PULC-03	PULC angle connector, 3/16" hose	-	10	In stock	Enquiry
SH-PULC-04	PULC angle connector, 1/4" hose	-	10	In stock	Enquiry
SH-PULC-05	PULC angle connector, 5/16" hose	-	10	In stock	Enquiry
SH-PULC-06	PULC angle connector, 3/8" hose	-	10	In stock	Enquiry
SH-PULC-08	PULC angle connector, 1/2" hose	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° angled plug connector with hose plug connections for inch diameter hoses, series S, type PULC. An economical solution for connecting flexible pneumatic hoses with an inch calibrated outer diameter. Easy and quick to use. Material: plastic. Working pressure: 10 bar. Vacuum: 0.99 bar. Operating temperature: from 0°C to +60°C. Sealing: NBR.
