Is Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 compatible with standard hydraulic fittings and BSP-threaded hoses?

Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 is designed with an internal BSP thread (GW BSP) and compact 90Â° SAE 3000 flange interface. It is compatible with hydraulic systems that use standard BSP-threaded hoses or fittings, provided the mating component has matching BSP female/male thread dimensions and is rated for the same pressure class. The partâs internal BSP thread allows direct connection to BSP-threaded hoses or adapters; the supplied O-ring (NBR) and mounting screws ensure a sealed flange joint when assembled correctly. Important considerations: 1) Thread match . ensure thread type (BSPP/G parallel vs BSPT/tapered) and size correspond to the hose/fitting; mismatched thread forms will leak or fail. 2) Pressure rating . SAE 3000 flange and the component must be compatible with the system pressure; confirm hoses/fittings are rated for equivalent pressure. 3) Materials and temperature . carbon steel, galvanized, with NBR O-ring is suitable for -20Â°C to +100Â°C; confirm compatibility with fluid and operating temperature. 4) Proper installation . use correct torque for screws and a good O-ring seat to ensure leak-free connection. In summary: Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 can be used with standard hydraulic fittings and BSP-threaded hoses if thread form/size, pressure rating, material compatibility and correct assembly are all matched.

Can Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 be used with metric-threaded hydraulic hoses or adapters?

Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 Format is designed with an internal BSP thread (British Standard Pipe) and compact SAE 3000 flange interface. It is not directly compatible with metric-threaded hydraulic hoses or adapters because BSP threads differ in pitch and diameter from metric (ISO/metric) threads. To use metric-threaded components you must employ a proper adapter or coupling that converts BSP to the required metric thread and maintains thread seal/integrity, plus ensure pressure rating, material compatibility (carbon steel, galvanized) and O-ring (NBR) sealing are suitable for the system and operating temperature (-20Â°C to +100Â°C). Always verify thread type, size and pressure rating before assembly.

Does Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 require specific torque for mounting screws?

Yes. The Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 requires specific torque for its mounting screws to ensure proper sealing and mechanical integrity. Although the product is supplied with mounting screws and an NBR O-ring, correct tightening is necessary to avoid leaks, O-ring damage, or flange deformation. Recommended approach: - Follow the screw torque values specified by the manufacturer or engineering drawings for the screw size and property class supplied. If no manufacturer torque is given, use standard torque values for the screw material, diameter and grade. - Use a cross (star) tightening pattern to achieve even flange compression on the O-ring. - Tighten incrementally in steps (e.g., 30%, 60%, 100% of target torque) to prevent uneven loading. - Do not exceed torque that could damage the O-ring (NBR) or distort the carbon steel flange; if unsure, err on the lower side within recommended ranges and verify seal integrity under pressure. - Consider lubrication or anti-seize on threads only if specified by the manufacturer, as it affects required torque. - After initial pressure testing, recheck torque after the first operational cycle. If exact screw size/grade or manufacturer torque data for Flanged connection 90Â° SAE 3000 / GW BSP, carbon steel, type D3 is needed, obtain the supplierâs technical sheet or contact the manufacturer for precise torque values.

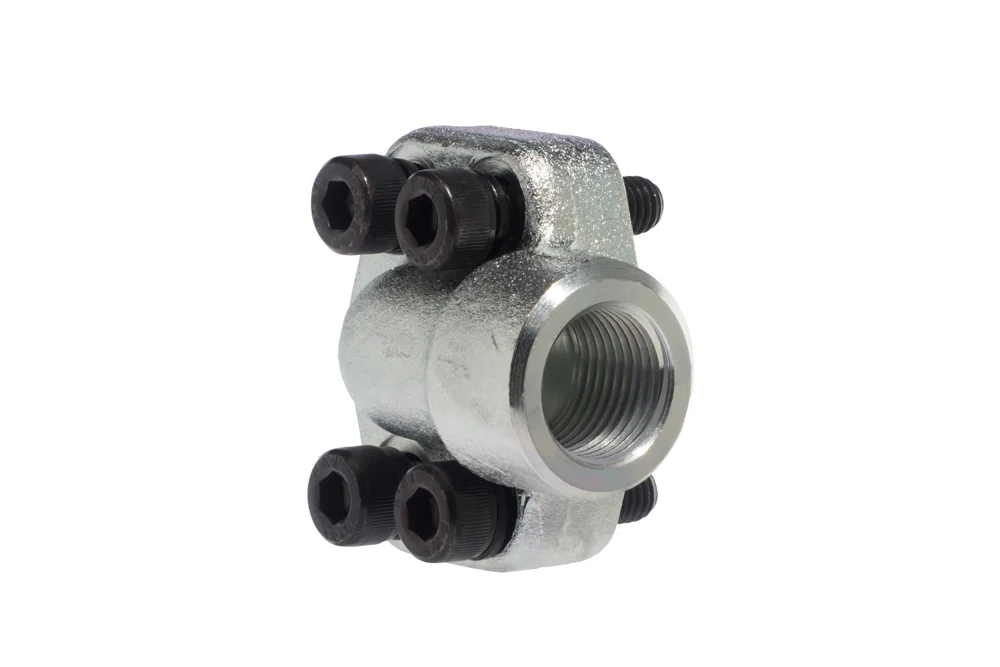

Flange connection 90° SAE 3000 / BSP female, carbon steel, type D3

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Flange connection 90° SAE 3000 of compact design with BSP female thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-D3-B-90-08-08	Flange connection 90° SAE 3000 1/2", 1/2" BSP female	-	348	In stock	Enquiry
HK-D3-B-90-12-12	Flange connection 90° SAE 3000 3/4", 3/4" BSP female	-	348	In stock	Enquiry
HK-D3-B-90-16-16	Flange connection 90° SAE 3000 1", 1" BSP female	-	348	In stock	Enquiry
HK-D3-B-90-20-20	Flange connection 90° SAE 3000 1.1/4", 1.1/4" BSP female	-	278	In stock	Enquiry
HK-D3-B-90-24-24	Flange connection 90° SAE 3000 1.1/2", 1.1/2" BSP female	-	210	In stock	Enquiry
HK-D3-B-90-32-32	Flange connection 90°SAE 3000 2", 2" BSP female	-	210	In stock	Enquiry
HK-D3-B-90-40-40	Flange connection 90°SAE 3000 2.1/2", 2.1/2" BSP female	-	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Flange connection 90° SAE 3000 of compact design with BSP female thread for use in hydraulic systems. Supplied with mounting screws and an O-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
