Is the Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 compatible with other SAE 6000 fittings and what sealing precautions are needed for BSP external threads?

Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 Format is mechanically compatible with other SAE 6000 flange fittings that follow the same SAE J518 (6000) dimensions.same bolt hole pattern, sealing face and bore.so it will mate with standard SAE 6000 counterpart flanges. However, this specific part has an external BSP (GZ BSP) thread for attachment, so ensure the mating component accepts the external BSP configuration while maintaining the SAE 6000 flange sealing interface. Sealing precautions for the BSP external threads: - The primary pressure seal for SAE 6000 flanges is the flange face and the supplied NBR Oâring; do not rely on thread engagement for the main sealing of the hydraulic circuit. - Threads should be clean and free of damage. Light thread sealant (PTFE tape or anaerobic thread sealant) may be used on the BSP external threads to prevent leakage past the threads and to provide corrosion protection, but avoid excess sealant that could contaminate the Oâring or enter the hydraulic system. - Use a compatible thread sealant for hydraulic systems and for the operating temperature range (â20Â°C to +100Â°C) and compatible with NBR. - When assembling, ensure proper torque on mounting screws to compress the Oâring evenly; overâtightening can damage the Oâring and underâtightening can lead to face leaks. - Inspect and, if needed, replace the NBR Oâring during reassembly; degraded Oârings compromise the flange face seal.

Can Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 be used with different BSP-threaded components without adapters?

Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 has an external BSP (GZ BSP) thread and a compact SAE 6000 flange interface. It can mate directly with other components that accept the same external BSP thread size and type without adapters. However, compatibility requires matching thread size, pitch and sealing method (this fitting uses an Oâring NBR and mounting screws and is designed for flange sealing, not solely metalâtoâmetal thread seal). Also confirm pressure rating and mounting hole pattern of the mating flange, and ensure operating temperature range (â20Â°C to +100Â°C) and galvanization are acceptable. If any of those differ, an adapter or different component may be needed.

Can Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 withstand hydraulic system vibrations and pressure spikes?

Yes. Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 is suitable for typical hydraulic system vibrations and moderate pressure spikes, with some practical limits. Reasons: - Construction: Carbon steel (galvanized) provides good mechanical strength and fatigue resistance vs. softer materials, so the flange body tolerates dynamic loads and vibration common in hydraulic systems. - Sealing: Supplied with an NBR Oâring, which offers reliable sealing under vibration and repeated pressure fluctuations within its temperature and chemical limits. Proper groove fit and correct Oâring size are essential to avoid extrusion or leakage under spikes. - Mounting: Delivered with mounting screws and a compact 90Â° design with external BSP thread; correct torqueing of screws and proper thread engagement are critical to maintain joint integrity under vibration. - Temperature range: Rated â20Â°C to +100Â°C. within this range NBR retains elasticity; outside it, Oâring performance and pressure capability degrade, increasing risk under spikes. Limitations and recommendations: - Verify system maximum pressure vs. the SAE 6000 rating and flangeâs pressure class. if pressure spikes exceed the componentâs rated pressure, use a higher-rated fitting or pressure dampening measures. - Use correct assembly practice: specified screw torque, clean mating surfaces, proper Oâring lubrication, and avoid overâtightening which can damage threads or Oâring. - For severe vibration or high-frequency pulsation, consider auxiliary measures: vibration dampers, hose routing changes, or fittings with metal-to-metal backup seals or higher durometer seals. - For extreme temperatures, aggressive fluids, or very high/rapid pressure spikes, confirm compatibility (NBR limits) or choose seals/materials rated for those conditions. Conclusion: Flange connection 90Â° SAE 6000 / GZ BSP, carbon steel, type C6 can withstand typical hydraulic vibrations and moderate pressure spikes if used within its pressure rating and â20Â°C to +100Â°C temperature range, properly assembled and maintained. For severe conditions, validate ratings or select upgraded components.

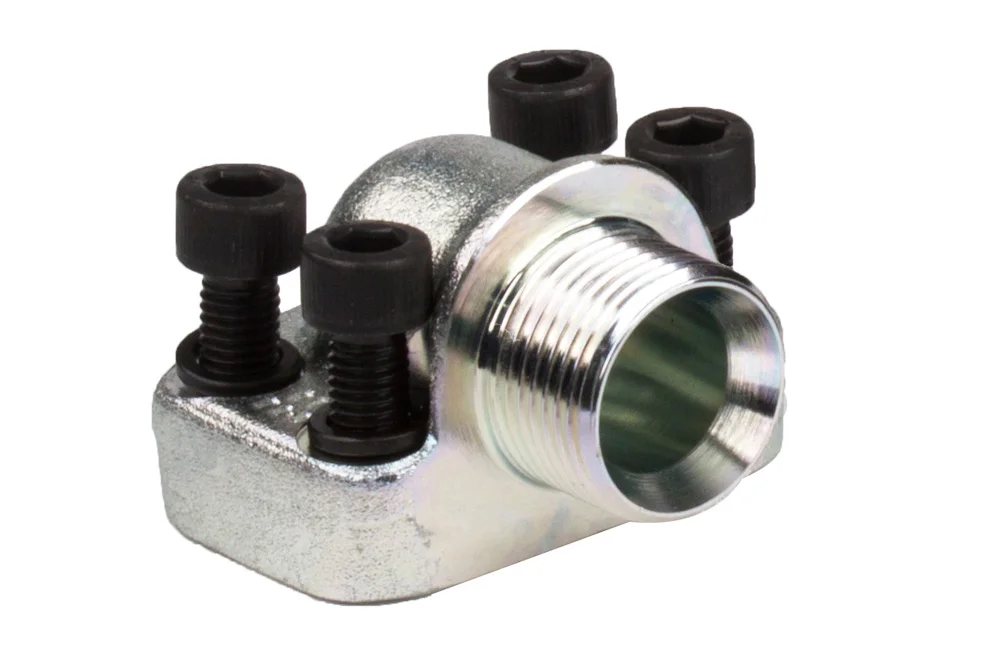

Flange connection 90° SAE 6000 / GZ BSP, carbon steel, type C6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

90° SAE 6000 flange connection with a compact design and external BSP thread for use in hydraulic systems. Supplied with mounting screws and an o-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-C6-B-90-08-06	90° flange fitting SAE 6000 1/2", GZ 3/8" BSP	-	420	In stock	Enquiry
HK-C6-B-90-08-08	90° flange fitting SAE 6000 1/2", GZ 1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-90-08-12	90° flange fitting SAE 6000 1/2", GZ 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-12-08	90° flange fitting SAE 6000 3/4", G 1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-90-12-12	90° flange fitting SAE 6000 3/4", G 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-12-16	90° flange fitting SAE 6000 3/4", G 1" BSP	-	420	In stock	Enquiry
HK-C6-B-90-16-12	90° flange fitting SAE 6000 1", G 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-16-16	90° flange fitting SAE 6000 1", G1" BSP	-	420	In stock	Enquiry
HK-C6-B-90-16-20	90° flange fitting SAE 6000 1", G1 1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-20-16	90° flange fitting SAE 6000 1.1/4", G 1" BSP	-	420	In stock	Enquiry
HK-C6-B-90-20-20	90° flange fitting SAE 6000 1.1/4", G 1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-20-24	90° flange fitting SAE 6000 1.1/4", G 1.1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-90-24-20	90° flange fitting SAE 6000 1.1/2", G 1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-24-24	90° flange fitting SAE 6000 1.1/2", G 1.1/2" BSP	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° SAE 6000 flange connection with a compact design and external BSP thread for use in hydraulic systems. Supplied with mounting screws and an o-ring seal (NBR). Material: carbon steel, galvanized. Operating temperature: from -20°C to +100°C.
