Is the Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 compatible with both Komatsu 60Â° inverted cone and ISO-6149 type G BSP O-ring sealing systems?

Yes. The Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 is compatible with both sealing systems specified: the METRIC (Komatsu) side uses a 60Â° inverted cone seat (JIS Komatsu) and the BSP side uses ISO-6149 type G O-ring with retaining ring. The product description explicitly shows one end with external metric thread sealing on a 60Â° inverted cone and the other end with external BSP thread sealing via ISO-6149 type G O-ring, so it will mate correctly with corresponding Komatsu 60Â° inverted-cone ports and ISO-6149 type G BSP O-ring ports. Material (carbon steel, galvanized) is standard for such high-pressure fittings.

Does the Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 support both Komatsu 60Â° cone and ISO-6149 type G O-ring sealing?

Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 supports both sealing types: the metric (Komatsu) side uses an inverted 60Â° cone, and the BSP side uses ISO-6149 type G O-ring with a retaining ring.

Can Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 be used interchangeably between Komatsu 60Â° cone and ISO-6149 G O-ring systems?

Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 cannot be used interchangeably between Komatsu 60Â° cone and ISO-6149 G O-ring systems without confirming compatibility of mating parts. The described fitting features two different sealing methods on each end: one end seals on an inverted 60Â° cone (Komatsu metric GZ. metal-to-metal cone) and the other end seals with an ISO-6149 G O-ring plus retaining ring (BSP external thread). These are distinct sealing principles and are not directly interchangeable. Key points: - Komatsu 60Â° cone relies on metal-to-metal contact at a specific 60Â° seat; it requires a matching conical female port designed for that cone angle and seating dimensions. - ISO-6149 G uses an elastomer O-ring seated in a groove with a retaining ring in the female port; it requires the correct O-ring groove and port geometry. - Using the cone end into an ISO-6149 port or the O-ring end into a cone port will not provide proper sealing and risks leaks, damage, or failure. - Interchange is possible only if adapters or ports specifically accept the alternative sealing type (for example, a port designed to accept a cone fitting and an appropriate adapter to convert to O-ring sealing), or if the mating component is manufactured to accept both standards (rare). - Also verify thread forms and sizes: metric GZ (Komatsu) and BSP threads differ; mechanical thread compatibility must be confirmed separately. Conclusion: Use Adaptor - elbow 90Â° JIS Komatsu GZ METRIC x GZ BSP, carbon steel, type A505 only where the mating ports are specifically designed for the respective Komatsu 60Â° cone on the metric side and ISO-6149 G O-ring with retaining ring on the BSP side, or use a certified conversion adapter.

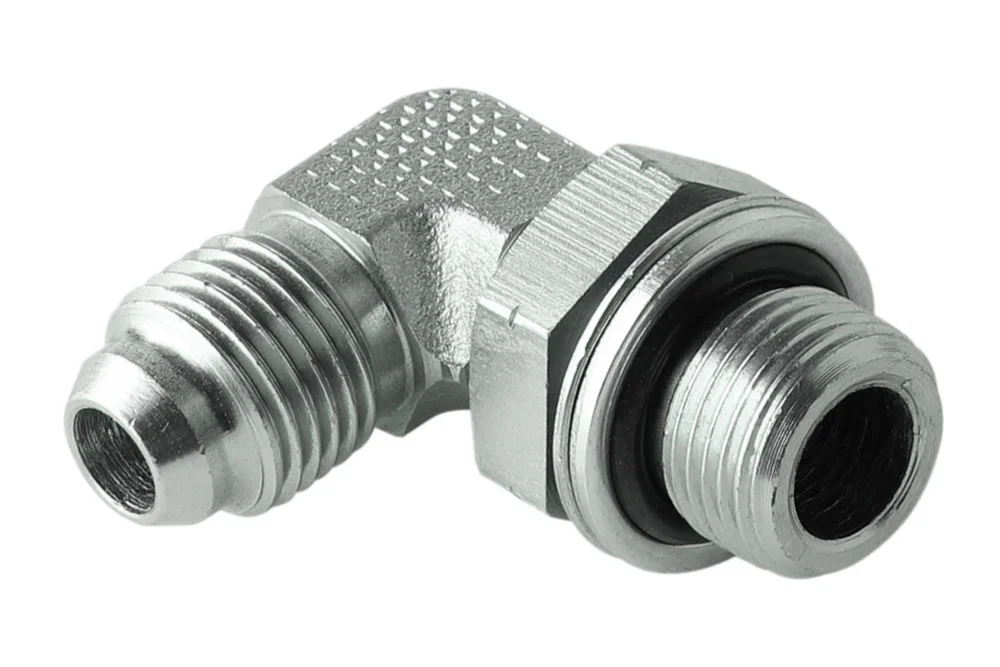

Adapter – elbow 90° JIS Komatsu metric male x BSP male, carbon steel, type A505

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure 90° adapter JIS type A505 with metric male thread (inverted 60° cone sealing) – KOMATSU and with BSP male thread (ISO-6149 type G sealing – O-ring with retaining ring). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A505-14-04	Adapter 90° M14x1.5 male JIS / adjustable 1/4" BSP male	-	315	In stock	Enquiry
TI-A505-16-06	Adapter 90° M16x1.5 male JIS / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A505-18-06	Adapter 90° M18x1.5 male JIS / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A505-22-08	Adapter 90° M22x1.5 male JIS / adjustable 1/2" BSP male	-	250	In stock	Enquiry
TI-A505-30-12	Adapter 90° M30x1.5 male JIS / adjustable 3/4" BSP male	-	205	In stock	Enquiry
TI-A505-33-16	Adapter 90° M33x1.5 male JIS / adjustable 1" BSP male	-	200	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure 90° adapter JIS type A505 with metric male thread (inverted 60° cone sealing) – KOMATSU and with BSP male thread (ISO-6149 type G sealing – O-ring with retaining ring). Material: carbon steel, galvanized.
