Is the Adaptor - plug with GZ BSP, carbon steel, type A113 suitable for high-pressure hydraulic systems with 60Â° cone sealing?

Yes. The Adaptor - plug with GZ BSP, carbon steel, type A113 is designed as a highâpressure plug with an external BSP thread and a 60Â° cone seal, made of carbon steel and galvanized. That configuration (external BSP thread + 60Â° cone sealing surface) is suitable for highâpressure hydraulic systems that require a 60Â° cone seal, provided the pressure rating, thread size, and material compatibility meet your systemâs specific requirements. Verify the adapterâs rated working pressure and BSP size match your system and confirm galvanizing is acceptable for your hydraulic fluid and operating environment.

Does the Adaptor - plug with GZ BSP, carbon steel, type A113 resist corrosion in marine environments after galvanization?

Adaptor - plug with GZ BSP, carbon steel, type A113: Galvanization provides a protective zinc coating that improves corrosion resistance compared with bare carbon steel and offers reasonable short- to medium-term protection in marine atmospheres. However, in aggressive marine environments (salt spray, splash zones, long-term exposure) zinc galvanizing will eventually corrode, potentially allowing substrate corrosion and compromising the 60Â° cone seal over time. For durable long-term marine service, consider additional measures: thicker/hot-dip galvanizing or duplex systems (galvanize + suitable paint or conversion coating), stainless steel alternative, or regular inspection and maintenance.

Can the Adaptor - plug with GZ BSP, carbon steel, type A113 be used with compatible BSP-threaded couplings and fittings?

Yes. The Adaptor - plug with GZ BSP, carbon steel, type A113 is designed as a high-pressure plug with an external BSP thread and a 60Â° cone seal, so it is compatible with couplings and fittings that accept BSP external threads and rely on a 60Â° cone sealing face. Its carbon steel, galvanized construction matches typical material expectations for pressure applications, but compatibility depends on these practical points: - Thread type and size: The mating coupling/fitting must have the corresponding internal BSP thread (same nominal size and pitch). BSP comes in parallel (BSPP) and tapered (BSPT); the A113âs description indicates an external BSP thread with a 60Â° cone seal, which is characteristic of a BSPP/BSP male with a cone sealing face or of specialized BSP configurationsâconfirm exact thread form and nominal size match before assembly. - Sealing method: The 60Â° cone seal requires the mating part to provide a matching cone seat. If the coupling/fitting is designed for a flat gasket or O-ring instead of a cone seat, proper sealing will not occur. - Pressure rating and service conditions: Ensure the coupling/fittingâs pressure rating, temperature limits, and media compatibility match those of the A113 and your application. Carbon steel (galvanized) is suitable for many fluids but may be unsuitable for corrosive media or specific temperature ranges. - Surface condition and installation: Threads and cone sealing faces must be clean, undamaged, and installed with correct torque to achieve leak-free connection. In summary, the Adaptor - plug with GZ BSP, carbon steel, type A113 can be used with compatible BSP-threaded couplings and fittings provided the mating part has the matching BSP thread size/form and a matching 60Â° cone seat, and the materials and pressure/temperature ratings are suitable for your application.

Adaptor – plug with GZ BSP, carbon steel, type A113

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

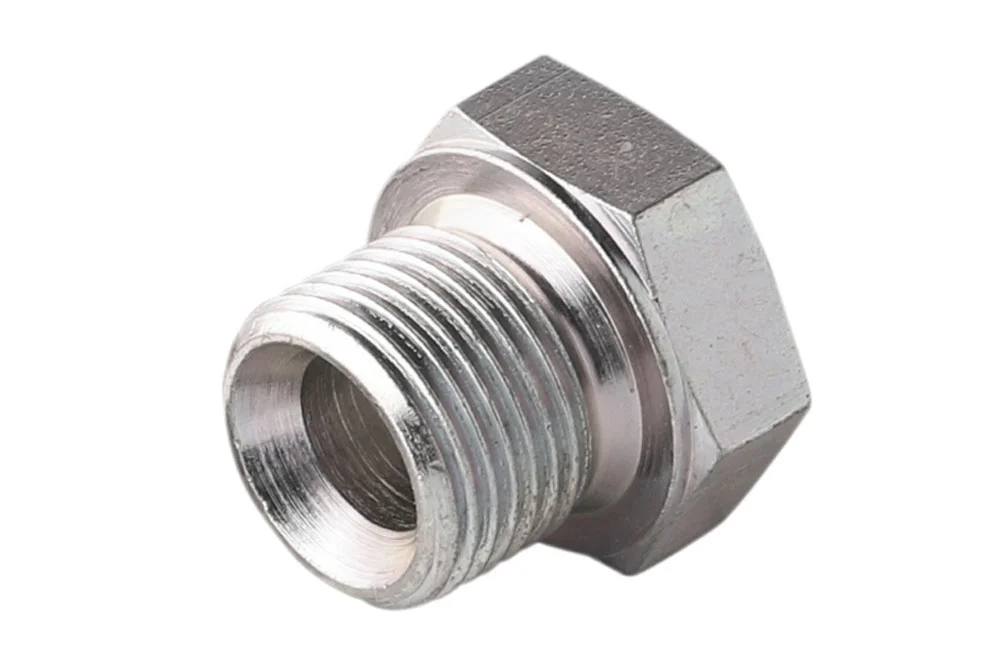

Adaptor – high-pressure plug with external BSP thread (60° cone seal), type A113. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A113-02	GZ BSP 1/8" plug	-	400	In stock	Enquiry
TI-A113-04	GZ BSP 1/4" plug	-	400	In stock	Enquiry
TI-A113-06	GZ BSP 3/8" plug	-	400	In stock	Enquiry
TI-A113-08	GZ BSP 1/2" plug	-	350	In stock	Enquiry
TI-A113-10	GZ BSP 5/8" plug	-	350	In stock	Enquiry
TI-A113-12	GZ BSP 3/4" plug	-	315	In stock	Enquiry
TI-A113-16	GZ BSP 1 plug	-	250	In stock	Enquiry
TI-A113-20	GZ BSP plug 1.1/4"	-	200	In stock	Enquiry
TI-A113-24	GZ BSP 1.1/2"" plug	-	160	In stock	Enquiry
TI-A113-32	GZ BSP 2 plug	-	125	In stock	Enquiry
TI-A113-40	GZ BSP 2.1/2" plug	-		In stock	Enquiry
