Is the Adaptor - angled nipple 90Â°, GZ NPT, carbon steel, type A305 suitable for thread sealant use on external NPT threads and compatible with galvanized carbon steel fittings?

Adaptor - angled nipple 90Â°, GZ NPT, carbon steel, type A305 Format Yes. The 90Â° high-pressure adapter type A305 is specified with external NPT threads (thread seal) and is made of galvanized carbon steel, so it is intended for use with thread sealant on the external NPT threads. Galvanized carbon steel fittings can be compatible with common thread sealants (PTFE tape, anaerobic liquid sealants, pipe dope) when applied correctly; however, ensure the chosen sealant is suitable for galvanized surfaces and the system media/temperature/pressure. Also confirm proper surface preparation, torque, and that any sealant does not interfere with galvanizing protection or downstream components. If the application involves aggressive chemicals, high temperatures, or critical safety requirements, verify compatibility with manufacturer specs or perform testing.

Can Adaptor - angled nipple 90Â°, GZ NPT, carbon steel, type A305 be used with PTFE tape or pipe dope on its external NPT threads?

Yes. Adaptor - angled nipple 90Â°, GZ NPT, carbon steel, type A305 with external NPT threads is designed to be used with a thread sealant. You can use PTFE tape or compatible pipe dope on the external NPT threads to ensure a pressure-tight seal. For best results: wrap PTFE tape 2â3 turns clockwise (so it wonât unwind during assembly) starting at the second thread, or apply a suitable oil- and solvent-resistant pipe dope rated for high pressure and carbon steel. Avoid sealing compounds incompatible with galvanizing or the system medium. Hand-start then tighten to recommended torque for NPT fittings; do not overtighten.

Does Adaptor - angled nipple 90Â°, GZ NPT, carbon steel, type A305 require specific thread sealants for galvanized surfaces?

Adaptor - angled nipple 90Â°, GZ NPT, carbon steel, type A305: Yes. because the product is carbon steel with a galvanized (zinc-coated) surface and uses external NPT threads (noted as "thread seal"), you should use a thread sealant compatible with galvanized surfaces. Avoid standard petroleum-based pipe dope or anaerobic sealants that can react with zinc or damage the galvanizing; instead choose a non-corrosive, zinc-safe option such as PTFE tape rated for gas/liquid service or a silicone-free, non-acidic pipe thread compound specifically formulated for galvanized steel. Apply PTFE tape by wrapping 3â5 turns clockwise on the male NPT threads, keeping tape clear of the first thread to prevent contamination; for paste, apply a thin, even layer on male threads only. Always confirm compatibility with the media, operating pressure and temperature, and follow applicable safety and installation standards.

Adaptor – angled nipple 90°, GZ NPT, carbon steel, type A305

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

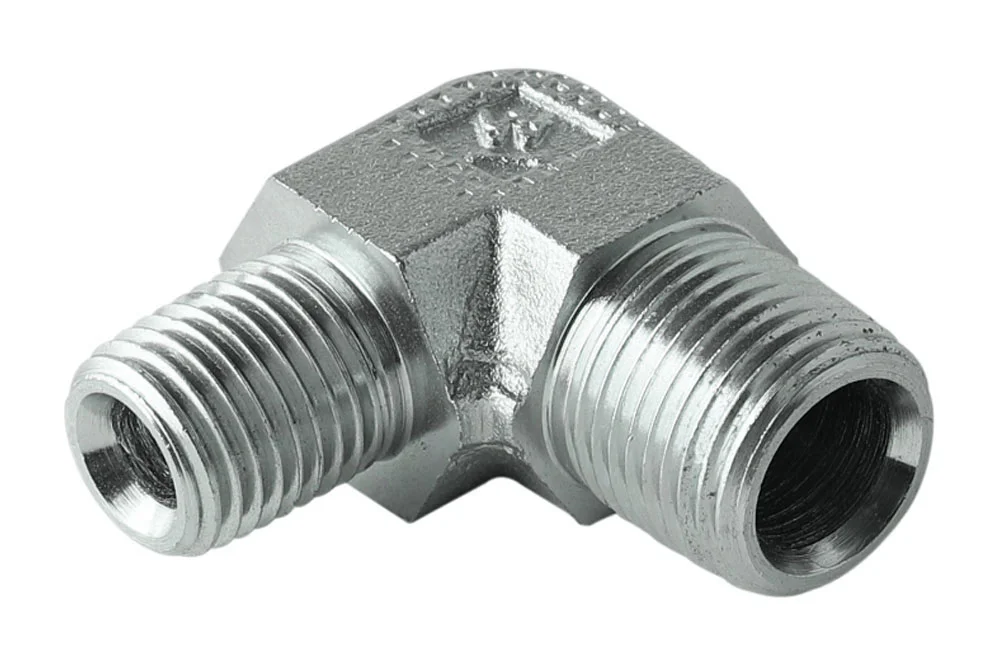

90° high-pressure adapter type A305 with external NPT threads (thread seal). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A305-02-02	90° Adapter GZ NPT 1/8" / GZ NPT 1/8"	-	345	In stock	Enquiry
TI-A305-04-04	90° Adapter GZ NPT 1/4" / GZ NPT 1/4"	-	345	In stock	Enquiry
TI-A305-04-06	90° Adapter GZ NPT 1/4" / GZ NPT 3/8"	-	276	In stock	Enquiry
TI-A305-06-06	90° Adapter GZ NPT 3/8" / GZ NPT 3/8"	-	276	In stock	Enquiry
TI-A305-08-08	90° Adapter GZ NPT 1/2" / GZ NPT 1/2"	-	241	In stock	Enquiry
TI-A305-12-12	90° Adapter GZ NPT 3/4" / GZ NPT 3/4"	-	155	In stock	Enquiry
TI-A305-16-16	90° Adapter GZ NPT 1" / GZ NPT 1"	-	138	In stock	Enquiry
TI-A305-20-20	90° Adapter GZ NPT 1.1/4" / GZ NPT 1.1/4"	-	112	In stock	Enquiry
TI-A305-24-24	90° Adapter GZ NPT 1.1/2" / GZ NPT 1.1/2"	-	86	In stock	Enquiry
TI-A305-32-32	90° Adapter GZ NPT 2" / GZ NPT 2"	-	78	In stock	Enquiry
