Is the Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N compatible with hydraulic systems using ISO-1179 G o-ring sealing?

Yes. The Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N is compatible with hydraulic systems using ISO 1179 G Oâring sealing. The product description explicitly states the external BSP thread is sealed per ISO 1179 type G (Oâring with retaining ring). That means the external port is designed to accept the ISO 1179 G Oâring sealing system. The internal BSP thread and swivel nut provide a 60Â° cone plus Oâring sealing, which is a common hybrid configuration in hydraulic fittings and supports reliable highâpressure connections when used with the correct Oâring size and groove/retaining ring as specified by ISO 1179. Ensure compatibility by verifying: - Oâring size and material meet system pressure, temperature, and fluid compatibility requirements. - Mating port or fitting conforms to ISO 1179 G (retaining ring groove) dimensions. - Proper installation torque and assembly procedures are followed. When those conditions are met, the Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N will work with ISO 1179 G Oâring sealed hydraulic systems.

Does the Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N include a swivel nut with 60Â° cone and o-ring sealing?

Yes. The Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N includes a swivel nut with 60Â° cone sealing and an Oâring; the description also specifies external BSP thread sealed by an Oâring with retaining ring (ISOâ1179 type G) and internal BSP thread.

Can the Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N be installed in high-pressure applications?

Yes. the Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N can be used in high-pressure applications, with qualifications. Why: the part is described as a 90Â° high-pressure elbow (type A114N) with external BSP thread sealed by an Oâring with retaining ring (ISOâ1179 type G) and an internal BSP thread with a swivel nut sealed by a 60Â° cone plus Oâring. Those features. Oâring face sealing, retaining ring, metal cone seat and swivel nut. are specifically engineered to provide robust, leakâtight joints under elevated pressures. Carbon steel construction with galvanised finish adds mechanical strength and corrosion resistance suitable for demanding environments. Considerations and limitations: - Exact maximum working pressure is not stated in the brief description. You must verify the manufacturerâs rated pressure (PN/PSI) for type A114N in the required size, thread class and temperature, since pressure capacity depends on dimensions and sealing details. - Ensure compatibility of the Oâring material with operating fluid and temperature; elastomer properties significantly affect highâpressure sealing. - Proper installation torque, correct assembly of the retaining ring and cone seat, and use of the specified threads are essential to achieve rated performance. - For critical or extreme highâpressure systems, follow applicable standards and consider pressure testing or certification. Conclusion: Functionally designed for highâpressure service, the Adaptor - elbow 90Â° GZ BSP/GW BSP adjustable, carbon steel, type A114N is suitable provided you confirm the manufacturerâs pressure rating, select compatible Oâring material, and follow correct installation procedures.

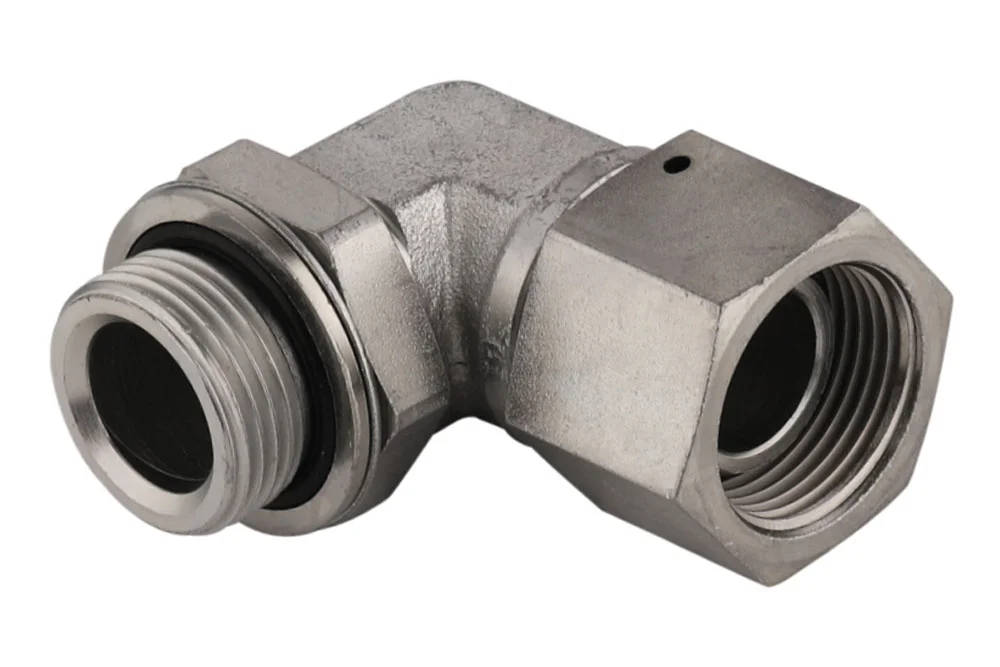

Adapter – elbow 90° BSP male/BSP female adjustable, carbon steel, type A114N

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adapter – elbow 90° high-pressure type A114N, adjustable, with BSP male thread (ISO-1179 type G sealing – O-ring with retaining ring) and with BSP female thread, with a swivel nut (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A114N-02	Adapter 90° 1/8" BSP female / adjustable 1/8" BSP male	-	350	In stock	Enquiry
TI-A114N-04	Adapter 90° 1/4" BSP female / adjustable 1/4" BSP male	-	315	In stock	Enquiry
TI-A114N-06	Adapter 90° 3/8" BSP female / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A114N-06-04	Adapter 90° 3/8" BSP female / adjustable 1/4" BSP male	-	250	In stock	Enquiry
TI-A114N-08	Adapter 90° 1/2" BSP female / adjustable 1/2" BSP male	-	250	In stock	Enquiry
TI-A114N-08-06	Adapter 90° 1/2" BSP female / adjustable 3/8" BSP male	-	250	In stock	Enquiry
TI-A114N-12	Adapter 90° 3/4" BSP female / adjustable 3/4" BSP male	-	250	In stock	Enquiry
TI-A114N-12-08	Adapter 90° 3/4" BSP female / adjustable 1/2" BSP male	-	250	In stock	Enquiry
TI-A114N-16	Adapter 90° 1" BSP female / adjustable 1" BSP male	-	200	In stock	Enquiry
TI-A114N-20	Adapter 90° 1.1/4" BSP female / adjustable 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A114N-24	Adapter 90° 1.1/2" BSP female / adjustable 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A114N-32	Adapter 90° 2" BSP female / adjustable 2" BSP male	-	125	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter – elbow 90° high-pressure type A114N, adjustable, with BSP male thread (ISO-1179 type G sealing – O-ring with retaining ring) and with BSP female thread, with a swivel nut (60° cone sealing). Material: carbon steel, galvanized.
