Is the Adaptor - reducing nipple from GZ BSPT/GZ BSP, carbon steel, type A102 suitable for use with mineral and synthetic hydraulic oils at 350 bar operating pressure?

Yes. The Adaptor - reducing nipple from GZ BSPT/GZ BSP, carbon steel, type A102 is suitable for use with mineral and synthetic hydraulic oils at an operating pressure of 350 bar, with the following caveats: - The adapter is described as a high-pressure hydraulic adapter, type A102, with external BSPT thread (thread seal) and external BSP thread with 60Â° cone seal . a design intended for high-pressure hydraulic systems. - Material: carbon steel, galvanized . carbon steel is commonly used for hydraulic fittings and is compatible with most mineral and synthetic hydraulic oils. - Ensure that 350 bar does not exceed the specific pressure rating of the exact size and variant of the A102 adapter you intend to use; adapter ratings can vary by nominal size and wall thickness. Confirm the manufacturerâs maximum working pressure for that specific part number or size. - Verify sealing method compatibility (BSPT thread seal plus 60Â° cone) and use correct installation torque and sealing practice to prevent leakage under 350 bar. - Check galvanizing/coating and any dynamic sealing components (O-rings, if present) for chemical compatibility with the particular synthetic oil type and operating temperature. If you need absolute confirmation for your specific size and application, request the manufacturerâs datasheet or pressure rating for that exact A102 part number.

Can the Adaptor - reducing nipple from GZ BSPT/GZ BSP, carbon steel, type A102 be used with water-glycol fluids?

Adaptor - reducing nipple from GZ BSPT/GZ BSP, carbon steel, type A102 can generally be used with water-glycol fluids, but confirm compatibility before use. Carbon steel with galvanization resists corrosion moderately, yet water-glycol mixtures can promote corrosion, erosion or degrade plating over time, especially with additives or high temperatures. Also check seal types: BSPT thread seal on threads and BSP 60Â° cone seal must be compatible with fluid and any seal material used in the system. Verify operating pressure, temperature limits and manufacturerâs chemical compatibility data; if uncertain, consult supplier or choose a stainless-steel or corrosion-resistant variant.

Does the Adaptor - reducing nipple from GZ BSPT/GZ BSP, carbon steel, type A102 support high-temperature hydraulic fluids?

Adaptor - reducing nipple from GZ BSPT/GZ BSP, carbon steel, type A102 is a high-pressure hydraulic adapter with external BSPT thread (seal on the thread) and external BSP thread with 60Â° cone seal, made of carbon steel and galvanized. The description specifies materials and sealing types but does not state temperature ratings or compatibility with high-temperature hydraulic fluids. Carbon steel and standard galvanizing can handle moderate temperatures, but performance depends on thread sealant, cone seal materials, and any elastomer seals used in the system. Because the product data provided lacks explicit temperature limits and seal material information, you cannot assume suitability for high-temperature hydraulic fluids. To confirm suitability, obtain the adapterâs rated temperature range and seal material specifications from the manufacturer or datasheet; if seals are metal-to-metal (thread/cone only) and the temperature rating meets your fluidâs temperature, it may be acceptableâotherwise select an adapter specified for high-temperature service.

Adapter – Reducing nipple BSPT male/BSP male, carbon steel, type A102

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

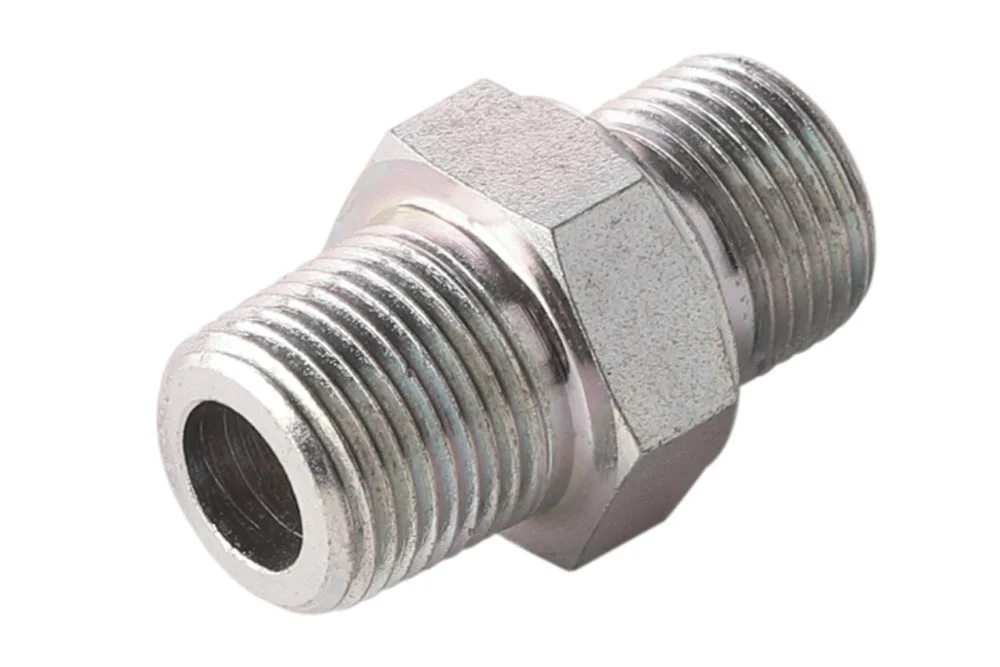

High-pressure adapter, hydraulic, type A102, with BSPT male thread (thread sealing) and with BSP male thread (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A102-02-02	Adapter 1/8" BSPT male / 1/8" BSP male	-	350	In stock	Enquiry
TI-A102-02-04	Adapter 1/8" BSPT male / 1/4" BSP male	-	350	In stock	Enquiry
TI-A102-04-04	Adapter 1/4" BSPT male / 1/4" BSP male	-	350	In stock	Enquiry
TI-A102-04-06	Adapter 1/4" BSPT male / 3/8" BSP male	-	250	In stock	Enquiry
TI-A102-04-08	Adapter 1/4" BSPT male / 1/2" BSP male	-	225	In stock	Enquiry
TI-A102-06-04	Adapter 3/8" BSPT male / 1/4" BSP male	-	250	In stock	Enquiry
TI-A102-06-06	Adapter 3/8" BSPT male / 3/8" BSP male	-	250	In stock	Enquiry
TI-A102-06-08	Adapter 3/8" BSPT male / 1/2" BSP male	-	225	In stock	Enquiry
TI-A102-06-24	Adapter 3/8" BSPT male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A102-08-04	Adapter 1/2" BSPT male / 1/4" BSP male	-	225	In stock	Enquiry
TI-A102-08-06	Adapter 1/2" BSPT male / 3/8" BSP male	-	225	In stock	Enquiry
TI-A102-08-08	Adapter 1/2" BSPT male / 1/2" BSP male	-	225	In stock	Enquiry
TI-A102-08-12	Adapter 1/2" BSPT male / 3/4" BSP male	-	200	In stock	Enquiry
TI-A102-12-06	Adapter 3/4" BSPT male / 3/8" BSP male	-	200	In stock	Enquiry
TI-A102-12-08	Adapter 3/4" BSPT male / 1/2" BSP male	-	200	In stock	Enquiry
TI-A102-12-12	Adapter 3/4" BSPT male / 3/4" BSP male	-	200	In stock	Enquiry
TI-A102-12-16	Adapter 3/4" BSPT male / 1" BSP male	-	160	In stock	Enquiry
TI-A102-16-08	Adapter 1" BSPT male / 1/2" BSP male	-	160	In stock	Enquiry
TI-A102-16-12	Adapter 1" BSPT male / 3/4" BSP male	-	160	In stock	Enquiry
TI-A102-16-16	Adapter 1" BSPT male / 1" BSP male	-	160	In stock	Enquiry
TI-A102-16-20	Adapter 1" BSPT male / 1.1/4" BSP male	-	160	In stock	Enquiry
TI-A102-20-16	Adapter 1.1/4" BSPT male / 1" BSP male	-	160	In stock	Enquiry
TI-A102-20-20	Adapter 1.1/4" BSPT male / 1.1/4" BSP male	-	160	In stock	Enquiry
TI-A102-24-24	Adapter 1.1/2" BSPT male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A102-24-32	Adapter 1.1/2" BSPT male / 2" BSP male	-	100	In stock	Enquiry
TI-A102-32-32	Adapter 2" BSPT male / 2" BSP male	-	100	In stock	Enquiry
TI-A102-40-40	Adapter 2.1/2" BSPT male / 2.1/2" BSP male	-		In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter, hydraulic, type A102, with BSPT male thread (thread sealing) and with BSP male thread (60° cone sealing). Material: carbon steel, galvanized.
