Is the Adaptor - nipple GZ BSPT, carbon steel, type A101T compatible with standard high-pressure BSPT female ports and does the thread seal require additional tape or sealant?

Adaptor - nipple GZ BSPT, carbon steel, type A101T Format is designed with external BSPT threads and a sealing surface on the thread, so it is intended to be compatible with standard high-pressure BSPT female ports. Because the description specifies "seal on the thread," the male thread provides the primary metal-to-metal (or metal-faced) seal when properly tightened into a matching BSPT female port. However, for reliable high-pressure service you should follow these precautions: - Ensure the female port is a matching BSPT (tapered) and in good condition (clean, undamaged threads and correct taper). - Tighten to the manufacturerâs recommended torque to achieve the thread sealing contact; under- or over-tightening can compromise the seal. - Although the part seals on the thread, many installers still use an appropriate thread sealant (PTFE tape or anaerobic/sealant paste) rated for high-pressure hydraulic applications to provide additional sealing and lubrication during assembly. If you choose PTFE tape, apply it carefully (wrap in the direction of the thread, avoid over-wrapping) and use tape formulated for hydraulic/high-pressure use. Use of sealant should be compatible with system fluid and pressure ratings. In short: yes, it is compatible with standard high-pressure BSPT female ports; the thread is designed to seal, but using a compatible high-pressure-rated thread sealant or PTFE tape is common practice to ensure leak-free assembly unless manufacturer instructions forbid it.

Does Adaptor - nipple GZ BSPT, carbon steel, type A101T require specific torque values for sealing on BSPT female ports?

Adaptor - nipple GZ BSPT, carbon steel, type A101T does require proper tightening to achieve thread sealing on BSPT female ports, but no universal torque value is given in the provided description. BSPT is a tapered thread that seals on the thread, and sealing depends on correct engagement, proper thread lubricant/sealant (e.g., PTFE tape or pipe dope rated for hydraulic use), and appropriate wrenching to avoid under- or over-tightening. For safe, leak-free assembly follow manufacturer torque recommendations or, if unavailable, use standard practice: hand-tight plus 2â4 turns with a wrench for small sizes, fewer turns for larger sizes, while monitoring for leaks. Always consult system pressure rating, thread size, and material limits; if in doubt, contact the manufacturer or a qualified hydraulic technician for specific torque values.

Can Adaptor - nipple GZ BSPT, carbon steel, type A101T be used with female BSPT ports of different pressure ratings?

Adaptor - nipple GZ BSPT, carbon steel, type A101T can be physically screwed into female BSPT ports of different pressure ratings because BSPT is a standardized thread form (British Standard Pipe Taper) and the external taper thread will mechanically engage matching internal taper threads. However, safe and reliable use depends on the following: - Pressure rating compatibility: The joint must be rated for the maximum system pressure. If the female BSPT port has a lower pressure rating than the adaptor, the port may fail even if the threads fit. Always ensure both componentsâ rated working pressures meet or exceed system pressure. - Seal integrity: Type A101T seals on the thread (metal-to-metal or with thread sealant). Using thread sealant or tape appropriate for the system fluid and pressure is necessary when manufacturer recommends it. Some high-pressure assemblies rely on precise thread engagement and specified sealants; mixing components with different ratings or unspecified sealing methods can cause leaks. - Material and galvanization: Both parts should be compatible in material and surface treatment to avoid galvanic corrosion or degradation under pressure/temperature conditions. Carbon steel, galvanized finish is common, but mating port material must be considered. - Standards and manufacturer guidance: Follow manufacturer specifications for torque, thread engagement length, and pressure-temperature limits. Using an adaptor with a port rated for lower pressure or not listed by the manufacturer for that combination is not recommended. Conclusion: Mechanically, Adaptor - nipple GZ BSPT, carbon steel, type A101T can fit into female BSPT ports of different pressure ratings, but it should only be used when both adaptor and female port have compatible (equal or higher) pressure ratings, appropriate sealing methods are applied, and manufacturer guidelines are followed.

Adapter – nipple BSPT male, carbon steel, type A101T

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

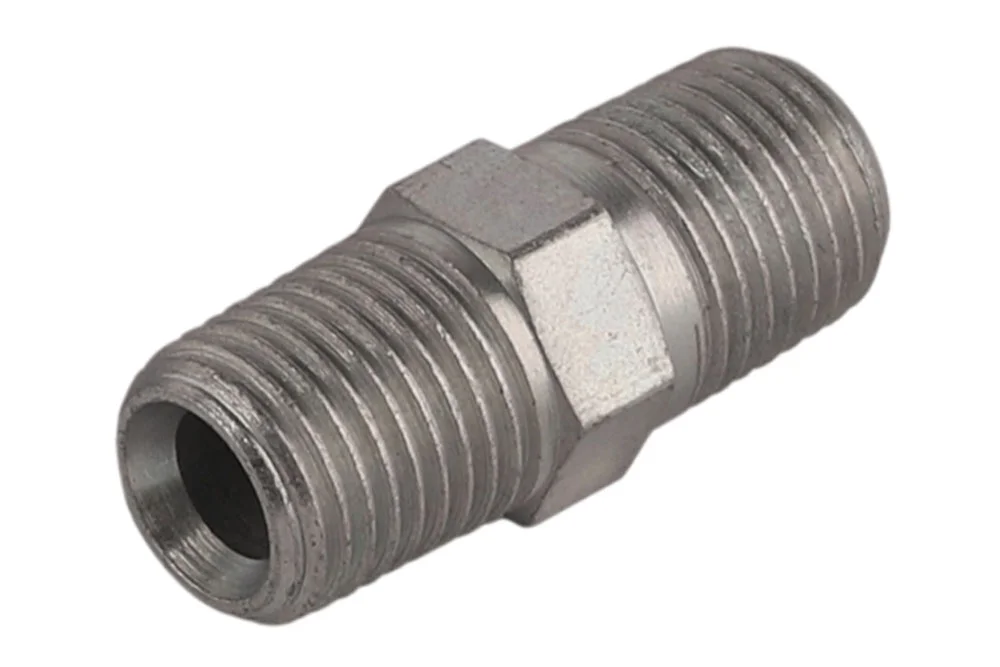

Hydraulic high-pressure adapter, type A101 with BSPT male thread (thread sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A101T-02-02	Adapter 1/8" BSPT male / 1/8" BSPT male	-	350	In stock	Enquiry
TI-A101T-04-04	Adapter 1/4" BSPT male / 1/4" BSPT male	-	350	In stock	Enquiry
TI-A101T-06-04	Adapter 3/8" BSPT male / 1/4" BSPT male	-	250	In stock	Enquiry
TI-A101T-06-06	Adapter 3/8" BSPT male / 3/8" BSPT male	-	250	In stock	Enquiry
TI-A101T-08-06	Adapter 1/2" BSPT male / 3/8" BSPT male	-	225	In stock	Enquiry
TI-A101T-08-08	Adapter 1/2" BSPT male / 1/2" BSPT male	-	225	In stock	Enquiry
TI-A101T-12-08	Adapter 3/4" BSPT male / 1/2" BSPT male	-	200	In stock	Enquiry
TI-A101T-12-12	Adapter 3/4" BSPT male / 3/4" BSPT male	-	200	In stock	Enquiry
TI-A101T-16-12	Adapter 1" BSPT male / 3/4" BSPT male	-	160	In stock	Enquiry
TI-A101T-16-16	Adapter 1" BSPT male / 1" BSPT male	-	160	In stock	Enquiry
TI-A101T-20-20	Adapter 1.1/4" BSPT male / 1.1/4" BSPT male	-	160	In stock	Enquiry
TI-A101T-24-24	Adapter 1.1/2" BSPT male / 1.1/2" BSPT male	-	160	In stock	Enquiry
TI-A101T-32-32	Adapter 2" BSPT male / 2" BSPT male	-	100	In stock	Enquiry
