Is the Adaptor for high-pressure cleaning equipment, nut on both sides, brass compatible with M22x1.5 fittings and safe for use up to 280 bar and +160Â°C?

Yes. The Adaptor for high-pressure cleaning equipment, nut on both sides, brass is described with metric connections M22x1.5 on both sides, so it is compatible with M22x1.5 fittings. Its material is brass, and the specified working pressure is up to 280 bar with an operating temperature up to +160Â°C, so it is rated safe for those conditions. Ensure fittings are matched, threads are undamaged, and use appropriate seals (e.g., PTFE or compatible O-rings) and proper tightening torque. If application involves aggressive chemicals or extreme thermal cycling, verify brass suitability for the specific media and consult manufacturer if needed.

Can the Adaptor for high-pressure cleaning equipment, nut on both sides, brass be used interchangeably with other M22x1.5 brass fittings under 280 bar and 160Â°C?

Yes - the Adaptor for high-pressure cleaning equipment, nut on both sides, brass can generally be used interchangeably with other M22x1.5 brass fittings provided those fittings are rated for the same or higher specifications. The adaptorâs metric M22x1.5 threads match standard M22x1.5 components; its material (brass), maximum working pressure (up to 280 bar) and maximum operating temperature (up to +160Â°C) are the key compatibility limits. Ensure any mating fitting has equivalent thread quality, pressure and temperature ratings, and suitable seal type (e.g., O-ring, flat seat) and that the systemâs actual operating conditions (pressure spikes, chemical exposure, vibration) do not exceed these limits. If in doubt for critical or safety applications, consult the equipment manufacturer or perform a pressure-rated compatibility check.

Does the Adaptor for high-pressure cleaning equipment, nut on both sides, brass require thread sealant for M22x1.5 connections?

Adaptor for high-pressure cleaning equipment, nut on both sides, brass: For M22x1.5 connections the need for thread sealant depends on the type of mating fitting and the sealing method intended. M22x1.5 on pressure-cleaning equipment commonly uses one of these sealing approaches: - Metal-to-metal cone or washer seal: If the mating part provides a built-in sealing face (e.g., a copper/Brass crush washer, an O-ring, or a conical seat), the mechanical seal is formed at that face and thread sealant is not required on the threads. - Threaded seal (pipe-style): If the connection relies on the thread crests to seal (rare for M22x1.5 metric hydraulic fittings), a suitable thread sealant (PTFE tape or liquid thread sealant rated for high pressure and temperature) must be used. Given the product description. brass adaptor with M22x1.5 on both sides, rated to 280 bar and 160Â°C. these fittings are typically intended to seal by a mating sealing face or O-ring rather than by the threads. Therefore you should not apply general-purpose thread sealant to the thread form if the mating fitting uses a sealing washer, cone or O-ring, because sealant can interfere with the intended metal/soft-seal contact and may contaminate the sealing surface. If the mating componentâs documentation explicitly requires thread sealant for its M22x1.5 thread, use a high-pressure, high-temperature-compatible thread sealant rated for hydraulic/pressure-washer applications. Always follow the equipment manufacturersâ assembly instructions and use sealants compatible with brass and with the working pressure (â¤280 bar) and temperature (â¤160Â°C). If unsure, consult the OEM or a qualified technician before assembly.

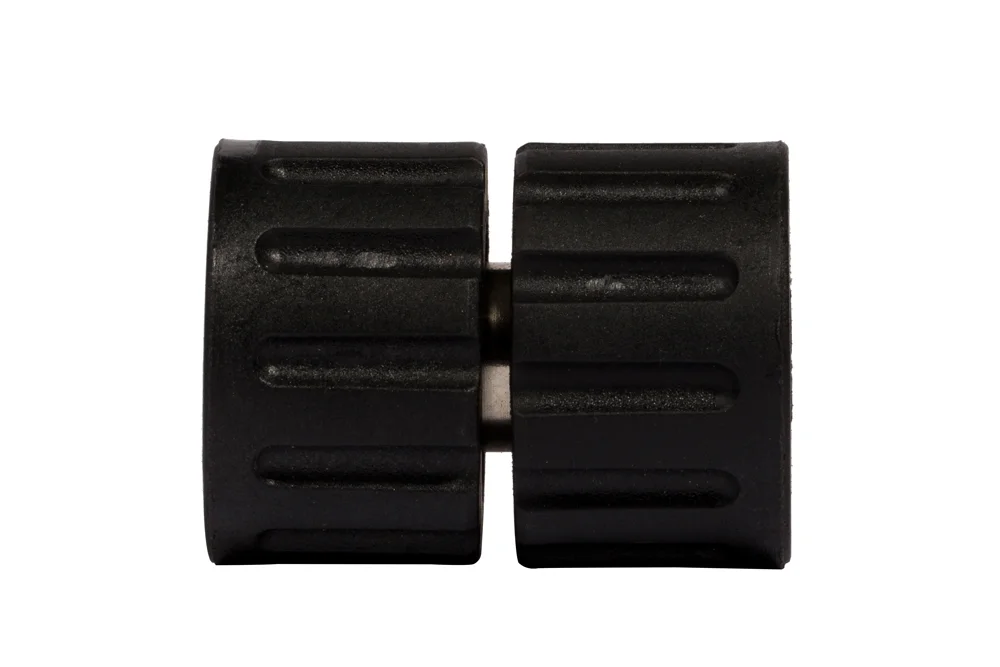

Adaptor for high-pressure cleaning equipment, nut on both sides, brass

Additional information

Material	B – brass (bronze)

Adapter for high-pressure cleaning devices with a metric connection M22x1.5 on both sides. Material: brass. Working pressure: up to 280 bar. Operating temperature: up to +160°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MH-240032	Adapter GW M22x1.5 / GW M22x1.5	-	280	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter for high-pressure cleaning devices with a metric connection M22x1.5 on both sides. Material: brass. Working pressure: up to 280 bar. Operating temperature: up to +160°C.
