Is the Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series compatible with CJ-H-14716 plugs only, and what is the maximum working pressure by size?

Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series is compatible only with plugs CJ-H-14716. Maximum working pressure by size: up to 3/4" . 350 bar; 1" . 250 bar. Additional data: material hardened steel, sealing NBR, operating temperature -30Â°C to +100Â°C.

Does the Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series allow plug movement to prevent hose twisting and what temperatures can it tolerate?

Yes. The Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series allows the plug freedom of movement in the socket, which prevents twisting of hoses during installation. It is rated for working pressures of 350 bar (sizes up to 3/4") and 250 bar (size 1"), and its operating temperature range is -30Â°C to +100Â°C.

Can the Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series be used with other plug models besides CJ-H-14716?

No. The product description for Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series explicitly states: "For use only with plugs CJ-H-14716." That means it is designed, dimensioned and sealed to mate specifically with the CJ-H-14716 WEO plug. Using other plug models risks improper fit, loss of sealing (NBR rectangular seal type E), reduced working pressure capability (350 bar up to 3/4", 250 bar for 1"), and potential safety or performance failures. Use only CJ-H-14716 as specified.

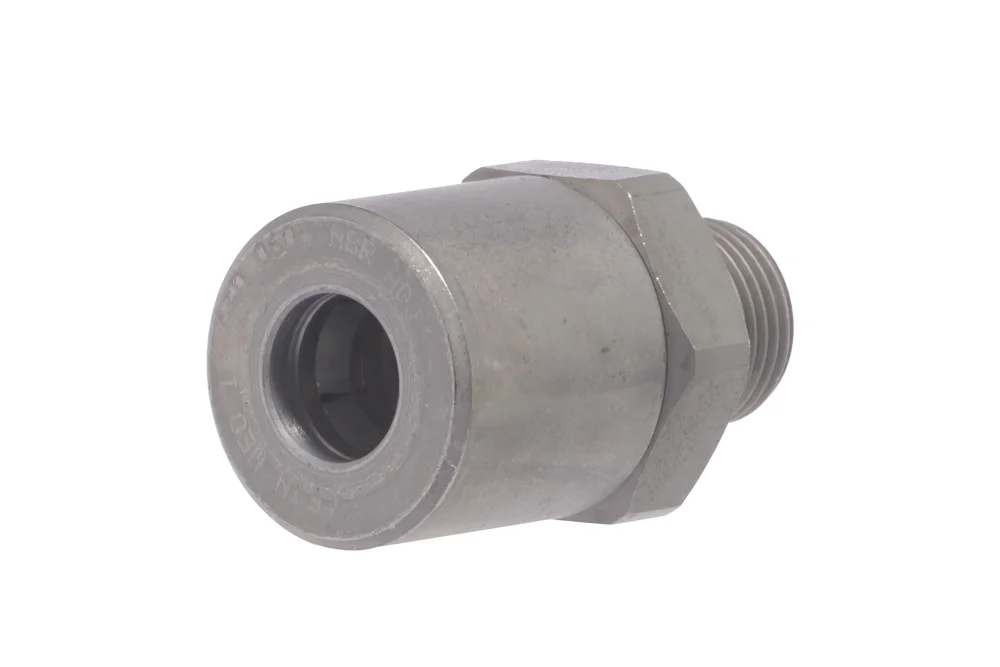

Adaptor GZ BSP / WEO swivel socket seal type E, hardened steel, 860 series

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Adaptor with external BSP thread (sealing DIN 3852 type E – elastomeric seal with rectangular cross-section) and rotating WEO socket for use in hydraulic systems; designed for easy connection of hydraulic hoses terminated with WEO plug. Once connected, the plug has freedom of movement in the socket, preventing twisting of hoses during installation. For use only with plugs CJ-H-14716… Working pressure: 350 bar (for size up to 3/4″), 250 bar (for size 1″). Material: hardened steel. Operating temperature: from -30°C to +100°C. Sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CJ-H-148600606	Adapter GZ BSP 3/8", seal E / socket rotating WEO 3/8", 350 bar	-	350	In stock	Enquiry
CJ-H-148600808	Adaptor GZ BSP 1/2", seal E / socket rotating WEO 1/2", 350 bar	-	350	In stock	Enquiry
CJ-H-148601222	Adapter GZ BSP 3/4", seal E / socket rotating WEO 3/4", 350 bar	-	350	In stock	Enquiry
CJ-H-148601616	Adaptor GZ BSP 1", seal E / socket rotating WEO 1", 250 bar	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adaptor with external BSP thread (sealing DIN 3852 type E – elastomeric seal with rectangular cross-section) and rotating WEO socket for use in hydraulic systems; designed for easy connection of hydraulic hoses terminated with WEO plug. Once connected, the plug has freedom of movement in the socket, preventing twisting of hoses during installation. For use only with plugs CJ-H-14716… Working pressure: 350 bar (for size up to 3/4″), 250 bar (for size 1″). Material: hardened steel. Operating temperature: from -30°C to +100°C. Sealing: NBR.
