Is the Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 suitable for high-pressure applications and does its galvanized finish resist corrosion?

Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 is designed for high-pressure use in that it is explicitly described as a high-pressure adapter and features threaded seals on both the external BSPT and external NPT threads, which supports reliable pressure-tight connections when correctly installed with appropriate thread sealing method (e.g., PTFE tape or liquid sealant where applicable). Carbon steel offers good strength for many high-pressure applications, but suitability for a specific pressure depends on the exact pressure rating, temperature, fluid type and applicable standards.information not provided in the brief description. You should verify the adapterâs maximum working pressure (MWP), operating temperature range and compatibility with your fluid and system standards before use in critical high-pressure systems. Regarding corrosion resistance: the adapter has a galvanized finish, which provides sacrificial and barrier protection against corrosion and is suitable for many environments. However, galvanized carbon steel is not as corrosion-resistant as stainless steel or specialized coatings in aggressive environments (e.g., seawater, high chloride, acidic or alkaline conditions). Over time the zinc layer can wear, chip or corrode, reducing protection. For long-term corrosion resistance in harsh conditions, consider alternative materials or additional protective measures. Conclusion: The Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 can be suitable for high-pressure applications if its specific pressure and temperature ratings match your system requirements; its galvanized finish offers corrosion protection for many environments but may be insufficient for highly aggressive or long-term corrosive conditions.verify technical specifications and environment compatibility before use.

Does the Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 require specific torque values for sealing on BSPT and NPT threads?

Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 does not include specific torque values in the provided description. Sealing on BSPT and NPT threads is typically achieved by thread deformation or thread sealant (tape/sealant) rather than a defined torque; recommended installation torque depends on thread size, material and sealant used. For safe and reliable sealing, follow manufacturerâs assembly instructions or industry standards for BSPT/NPT fittings, and if unavailable, use hand-tight plus a specified number of wrench turns (commonly 1â2 turns) while avoiding over-torquing to prevent thread damage. For critical or high-pressure applications, obtain exact torque guidance from the manufacturer or perform a qualified assembly procedure.

Can Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 be used with different sealing compounds for thread sealing?

Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 can be used with different thread sealing compounds, but several important points must be observed: 1. Thread sealing method compatibility - The product description states both BSPT and NPT threads seal on the thread. BSPT is a tapered British Standard Pipe thread designed to seal by metal-to-metal interference and/or with a sealant, while NPT is an American National Pipe Taper thread that typically requires a thread sealant (tape or paste) to achieve a leak-tight connection. Use of appropriate sealants for each thread standard is acceptable. 2. Sealant selection - For carbon steel, common suitable options are PTFE (pipe) tape, anaerobic thread sealants, or approved pipe joint compounds formulated for metals and the media/pressure involved. Choose sealants rated for the system pressure, operating temperature, and fluid compatibility (hydraulic fluid, gas, oil, water, etc.). Avoid sealants that attack zinc plating (galvanization) or leave corrosive residues. 3. Application considerations - Apply PTFE tape or paste appropriately: wrap NPT threads following taper direction and avoid excess material that could shear into the system. For BSPT, if relying on metal-to-metal fit, a light sealant or specified paste may be used to improve sealing and corrosion resistance, but careful assembly torque is required to prevent thread damage. - Some sealants harden and can make disassembly difficult; choose reversible compounds if frequent maintenance is expected. 4. Safety and standards - Ensure the chosen sealant is compatible with the pressure rating of the high-pressure adapter and complies with relevant industry standards for the service (e.g., hydraulic or gas service). When used in high-pressure systems, prefer sealants with proven performance in high-pressure metal taper threads. 5. Manufacturer guidance - If available, follow the adapter or system manufacturerâs recommendations on acceptable sealants and torque values. If uncertain, consult technical data sheets or the supplier. Summary: Yes. Adaptor - nipple GZ BSPT x GZ NPT, carbon steel, type A201 may be used with various thread sealants (PTFE tape, pipe dope, anaerobic sealants), provided the sealant is compatible with carbon steel and zinc plating, rated for the system pressure/temperature/media, and applied correctly for BSPT and NPT threads.

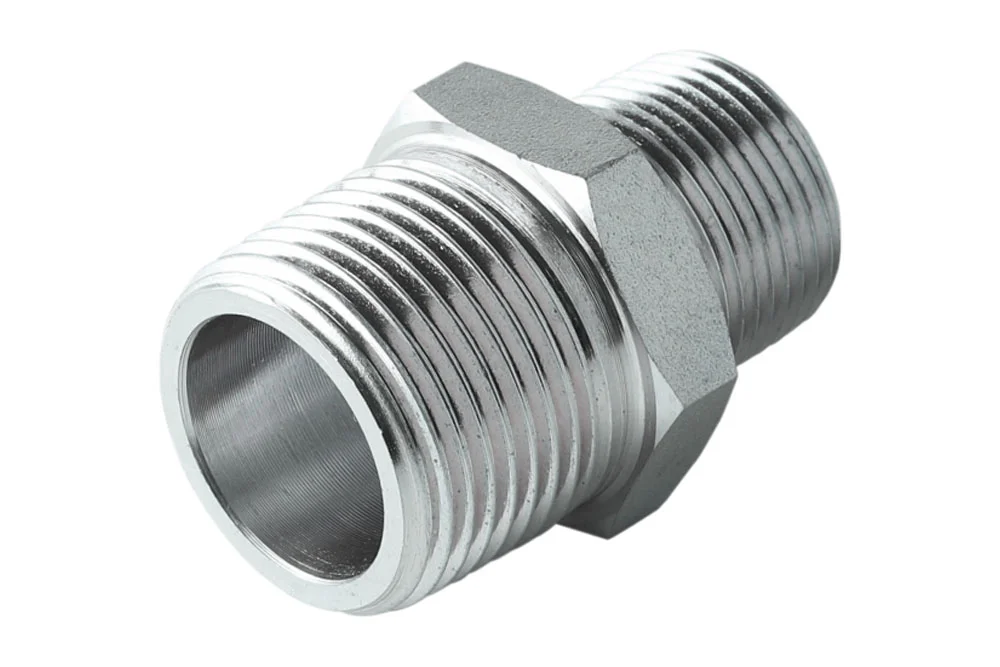

Adaptor – nipple GZ BSPT x GZ NPT, carbon steel, type A201

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adapter type A201, with external BSPT thread (seal on the thread) and external NPT thread (seal on the thread). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A201-02-02	Adapter GZ BSPT 1/8" / GZ NPT 1/8"	-	345	In stock	Enquiry
TI-A201-04-04	Adaptor GZ BSPT 1/4" / GZ NPT 1/4"	-	345	In stock	Enquiry
TI-A201-04-06	Adapter GZ BSPT 1/4" / GZ NPT 3/8"	-	276	In stock	Enquiry
TI-A201-06-04	Adapter GZ BSPT 3/8" / GZ NPT 1/4"	-	276	In stock	Enquiry
TI-A201-06-06	Adapter GZ BSPT 3/8" / GZ NPT 3/8"	-	276	In stock	Enquiry
TI-A201-08-08	Adaptor GZ BSPT 1/2" / GZ NPT 1/2"	-	241	In stock	Enquiry
TI-A201-12-12	Adaptor GZ BSPT 3/4" / GZ NPT 3/4"	-	155	In stock	Enquiry
TI-A201-16-12	Adaptor GZ BSPT 1" / GZ NPT 3/4"	-	138	In stock	Enquiry
TI-A201-16-16	Adaptor GZ BSPT 1" / GZ NPT 1"	-	138	In stock	Enquiry
TI-A201-16-20	Adaptor GZ BSPT 1" / GZ NPT 1.1/4"	-	112	In stock	Enquiry
TI-A201-20-20	Adaptor GZ BSPT 1.1/4" / GZ NPT 1.1/4"	-	112	In stock	Enquiry
TI-A201-24-24	Adapter GZ BSPT 1.1/2" / GZ NPT 1.1/2"	-	86	In stock	Enquiry
TI-A201-32-32	Adaptor GZ BSPT 2" / GZ NPT 2"	-	78	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

High-pressure adapter type A201, with external BSPT thread (seal on the thread) and external NPT thread (seal on the thread). Material: carbon steel, galvanized.
