Is the Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407 compatible with Toyota high-pressure systems using a 60Â° inverted cone seal and internal BSP thread?

Yes. The Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407 is compatible with Toyota high-pressure systems that use a 60Â° inverted cone seal and an internal BSP thread. The product description explicitly states it is a high-pressure blind plug JIS type A407 with internal BSP thread and sealing via a 60Â° inverted cone, and its carbon steel, galvanized construction is suitable for high-pressure hydraulic applications. Ensure thread size and pressure rating match your specific system, but in terms of sealing style (60Â° inverted cone) and internal BSP thread form, this adaptor is appropriate.

Does the Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407 require specific torque values for proper sealing with a 60Â° inverted cone?

Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407: The product description (high-pressure blind plug JIS type A407 with internal BSP thread, sealing on a 60Â° inverted cone) implies metal-to-metal cone sealing. Proper sealing typically requires correct tightening torque to ensure sufficient contact without damaging the cone or threads. However, the provided description does not specify exact torque values. Therefore, specific torque values are not given in the description; follow manufacturerâs assembly instructions or industry torque charts for carbon-steel BSP connections with 60Â° cone seats, or consult Toyota/JIS specifications for precise torque.

Can the Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407 withstand high-pressure hydraulic cycles in Toyota systems?

Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407 is described as a high-pressure blind plug JIS type A407 with internal BSP thread and a 60Â° inverted cone sealing surface, made of carbon steel and galvanized. These features indicate it is designed for high-pressure hydraulic applications typical in Toyota systems, with the inverted cone providing reliable metal-to-metal sealing and the BSP internal thread matching standard fittings. However, whether it can withstand specific high-pressure hydraulic cycles depends on several factors not provided in the brief description: the exact pressure rating (maximum working pressure and burst pressure), fatigue resistance under cyclic loading, compatibility with the hydraulic fluid and operating temperature range in the Toyota system, thread engagement length and torque used during installation, and any applicable Toyota or JIS certification/approval. In absence of explicit pressure and fatigue specifications, one cannot conclusively guarantee suitability for repeated high-pressure cycles. To confirm compatibility, obtain the productâs technical datasheet or manufacturer certification showing rated working pressure, cycle life/fatigue test data, material heat treatment details, and conformity to Toyota or JIS hydraulic standards. If those ratings meet or exceed the Toyota systemâs maximum pressure and cycle requirements, the Adaptor - cap JIS Toyota GW BSP, carbon steel, type A407 should be suitable.

Adaptor – cap JIS Toyota GW BSP, carbon steel, type A407

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

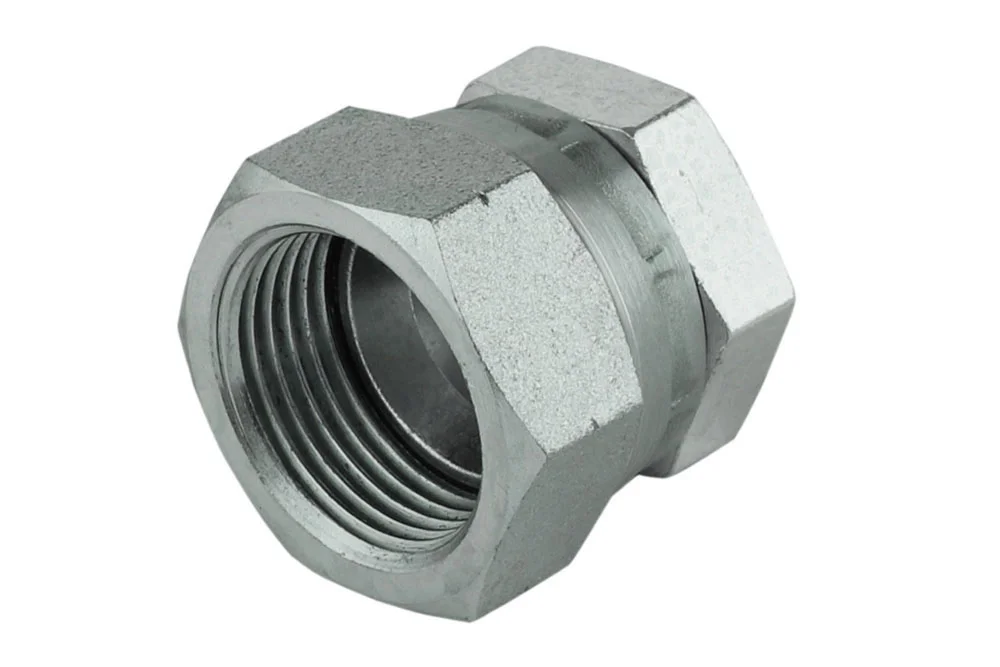

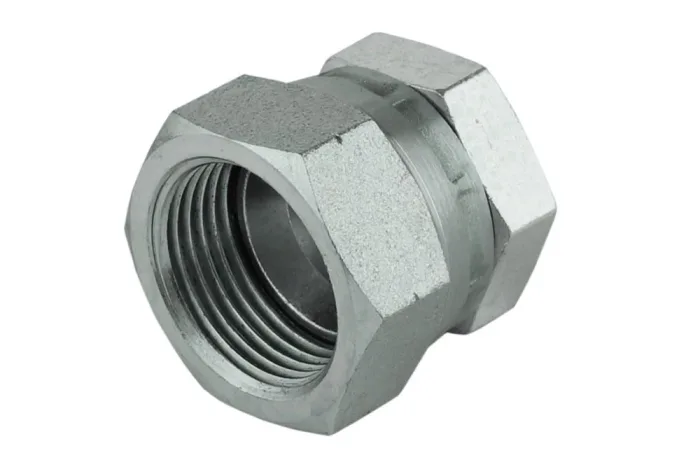

Adaptor – high-pressure blind plug JIS type A407 with internal BSP thread (sealing inverted cone 60°) – TOYOTA. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A407-04	Blind plug G1/4" JIS	-	345	In stock	Enquiry
TI-A407-06	Blind plug G 3/8" BSP JIS	-	345	In stock	Enquiry
TI-A407-08	Blind plug GW BSP 1/2" JIS	-	275	In stock	Enquiry
TI-A407-12	Blind plug G 3/4" BSP JIS	-	275	In stock	Enquiry
TI-A407-16	Blind plug G1" BSP JIS	-	205	In stock	Enquiry
