Is the JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 compatible with standard 60Â° inverted-cone BSP fittings and pressure-rated for high-pressure hydraulic systems?

Yes. The JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 is described as a high-pressure adaptor JIS type A401 with external BSP threads and a 60Â° inverted-cone sealing face (TOYOTA). That means it is physically compatible with standard 60Â° inverted-cone BSP fittings (BSPP/BSPT mating faces that use the 60Â° cone sealing geometry), and its carbon steel, galvanized construction is typical for highâpressure hydraulic applications. However, for safe use in highâpressure hydraulic systems you must verify the specific pressure rating for the exact part number from the manufacturer or datasheet and ensure compatibility with your systemâs thread type (BSPP vs BSPT), sealing method, and working/burst pressure requirements. Materials, plating, and assembly torque should also match system specifications to meet required pressure and service conditions.

Does the JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 require specific torque values for sealing the 60Â° inverted cone connection?

JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 Format: The 60Â° inverted cone connection used on this JIS Toyota adaptor typically seals metal-to-metal by cone contact and relies on correct thread tightening for axial compression. Manufacturers or standards for JIS hydraulic fittings normally specify recommended torque or tightening procedure (often hand-tight plus a specified number of wrench turns, or torque values based on thread size/diameter and material). Because the product description does not list a specific torque, you should consult the makerâs datasheet or JIS/BSP torque tables for carbon steel fittings of the given thread size. If unavailable, follow standard practice: assemble hand-tight, then tighten with a wrench per the manufacturerâs recommended turns or torque for that BSP thread size to achieve proper cone seating without over-torquing.

Can the JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 be used with stainless steel mating fittings without galvanic corrosion concerns?

possibly, but caution is required. Details: - The JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 is made of carbon steel and is galvanized (zinc coating). When mated with stainless steel fittings, a galvanic couple can form. Zinc (galvanizing) is anodic relative to stainless steel, so the zinc coating will preferentially corrode and sacrificially protect the carbon steel. That can be beneficial short-term, but it also means the zinc layer will degrade over time, exposing base carbon steel to corrosion and potential galvanic attack against the stainless steel in certain environments. Key factors that determine risk: - Environment: wet, salty, acidic, or humid environments greatly increase galvanic corrosion risk. Dry, indoor, non-corrosive environments reduce risk. - Electrical continuity and area ratio: small-area anodic (zinc/carbon steel) coupled to large-area cathodic stainless steel accelerates anodic corrosion of the zinc/steel. Large-area zinc/steel coupled to small-area stainless reduces relative attack on the zinc. - Integrity of galvanizing: damaged or thin zinc exposes carbon steel and increases corrosion risk. - Type of stainless steel: more noble grades (e.g., 316) are cathodic to zinc; some grades are more compatible. - Sealing and assembly: sealed joints that exclude moisture reduce galvanic action. Recommendations: - For corrosive environments or long-term reliability, avoid direct contact of galvanized carbon steel with stainless fittings. Use compatible materials (stainless steel adaptor or stainless mating fittings of same family) or add an insulating barrier (non-conductive gasket, sleeves, or dielectric unions) to break electrical contact. - If using the galvanized JIS Toyota adaptor in benign environments, ensure good galvanize thickness, minimize differential area effects, and inspect periodically for zinc degradation. - Consider upgrading to stainless steel adaptors or consulting supplier corrosion data and application specifics for safety-critical or high-pressure systems. Conclusion: You can use the JIS Toyota adaptor - nipple GZ BSP, carbon steel, type A401 with stainless steel fittings in non-aggressive environments with precautions, but for long-term or corrosive conditions choose compatible stainless components or isolate the metals to avoid galvanic corrosion.

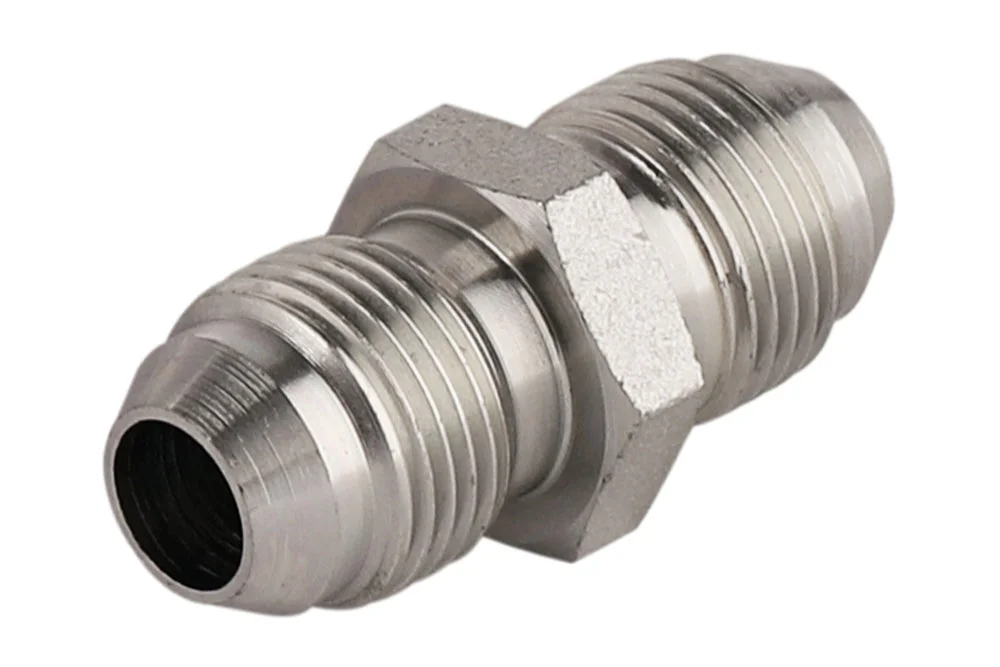

JIS Toyota adaptor – nipple GZ BSP, carbon steel, type A401

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

High-pressure adaptor JIS type A401 with external BSP threads (sealing inverted cone 60°) – TOYOTA. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A401-04-04	Adaptor GZ BSP 1/4" JIS / GZ BSP 1/4" JIS	-	345	In stock	Enquiry
TI-A401-06-06	Adaptor GZ BSP 3/8" JIS / GZ BSP 3/8" JIS	-	345	In stock	Enquiry
TI-A401-08-08	Adaptor GZ BSP 1/2" JIS / GZ BSP 1/2" JIS	-	275	In stock	Enquiry
TI-A401-12-12	Adaptor GZ BSP 3/4" JIS / GZ BSP 3/4" JIS	-	275	In stock	Enquiry
TI-A401-16-16	Adaptor GZ BSP 1" JIS / GZ BSP 1" JIS	-	205	In stock	Enquiry
