Is the Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 compatible with high-pressure hydraulic systems using 60Â° cone sealing?

Yes. The Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 is compatible with high-pressure hydraulic systems using 60Â° cone sealing. The product description specifies an internal BSP thread with 60Â° cone sealing and two external BSP threads with 60Â° cone sealing, and it is manufactured from AISI 316L stainless steel, which is suitable for high-pressure hydraulic applications due to its corrosion resistance and mechanical strength. Ensure thread sizes, pressure ratings and material compatibility match your system specifications and follow proper installation torques and sealing practices.

Can Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 withstand corrosion in seawater environments?

Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 Format: Made of AISI 316L, which offers excellent resistance to general corrosion and pitting in chloride-containing environments, so it is commonly suitable for seawater applications. However, actual performance depends on factors: seawater temperature, oxygenation, flow velocity, presence of biofouling, crevice areas, and chloride concentration. 316L can suffer crevice corrosion and stress corrosion cracking in aggressive warm seawater or polluted conditions; for long-term duty in harsh marine environments, duplex or superaustenitic alloys are preferable. Recommendation: for short-term or moderate seawater exposure 316L is generally acceptable; for continuous, warm, high-chloride or critical service choose more resistant alloys or seek corrosion testing/engineering validation.

Does Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 support use with compatible BSP fittings without adapters?

Yes. Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 supports direct use with compatible BSP fittings without additional adapters, provided the fittings conform to the same BSP thread types and 60Â° cone sealing specification. Reasoning: - Thread types: The product description specifies one internal (GW) BSP thread and two external (GZ) BSP threads. Those are standard BSP female/male designations, so mating BSP male/female fittings of matching size will engage directly. - Sealing type: All three connections use 60Â° cone sealing. For a proper, leak-free joint you must use mating fittings with the corresponding 60Â° cone face (not flat-faced or different-angle sealing). Using fittings with the same cone angle eliminates need for separate seals or adapters. - Material compatibility: Made of AISI 316L stainless steel, it is suitable for use with other stainless or compatible metal BSP fittings; avoid dissimilar-metal galvanic issues if service conditions demand. - Pressure and assembly: As a high-pressure tee, ensure the mating fittings and installation torque/assembly practices meet the systemâs pressure rating. Use appropriate thread engagement and follow manufacturer torque recommendations. In summary, Adaptor - tee "L" with GW BSP/2 x GZ BSP, stainless steel, type A126 can be used directly with compatible BSP fittings that match the BSP sizes and 60Â° cone sealing specification; no extra adapters are needed if those conditions are met.

Adaptor – tee “L” with GW BSP/2 x GZ BSP, stainless steel, type A126

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

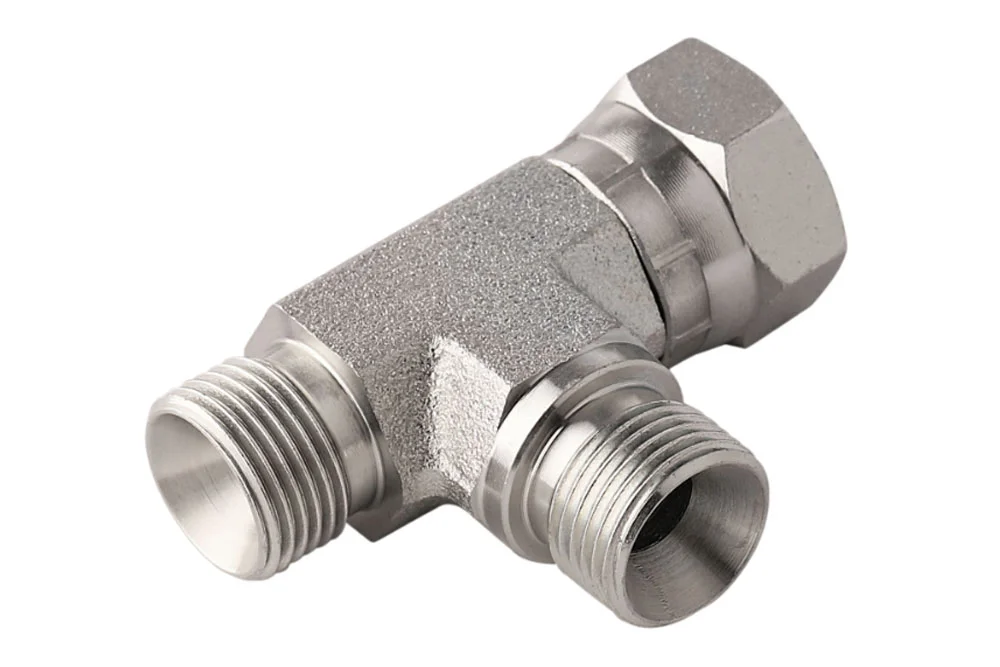

Adaptor – “L” high-pressure tee type A126 with internal BSP thread (60° cone sealing) and 2 x external BSP threads (60° cone sealing). Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A126-02-SS	L-shaped tee, G thread BSP 1/8" / 2 x G thread BSP 1/8", AISI 316	-	400	In stock	Enquiry
TI-A126-04-SS	L-shaped tee, G thread BSP 1/4" / 2 x F thread BSP 1/4", AISI 316	-	400	In stock	Enquiry
TI-A126-06-SS	L-shaped tee, G thread BSP 3/8" / 2 x G thread BSP 3/8", AISI 316	-	400	In stock	Enquiry
TI-A126-08-SS	L-shaped tee, G thread BSP 1/2" / 2 x G thread BSP 1/2", AISI 316	-	350	In stock	Enquiry
TI-A126-12-SS	L-shaped tee, G thread BSP 3/4" / 2 x female G thread BSP 3/4", AISI 316	-	315	In stock	Enquiry
TI-A126-16-SS	L-shaped tee GW BSP 1" / 2 x GZ BSP 1", AISI 316	-	250	In stock	Enquiry
TI-A126-20-SS	L-shaped tee, G thread BSP 1.1/4" / 2 x female G thread BSP 1.1/4", AISI 316	-	200	In stock	Enquiry
TI-A126-24-SS	L-shaped tee, G thread BSP 1.1/2" / 2 x G thread BSP 1.1/2", AISI 316	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adaptor – “L” high-pressure tee type A126 with internal BSP thread (60° cone sealing) and 2 x external BSP threads (60° cone sealing). Material: AISI 316L steel.
