Is the Adaptor - tee T with GW BSP, carbon steel, type A117 suitable for high-pressure hydraulic systems and what pressure rating does it support?

Adaptor - tee T with GW BSP, carbon steel, type A117 Format is designed for high-pressure hydraulic applications. The description specifies it is a high-pressure tee with internal BSP threads and swivel nuts using 60Â° cone sealing, made of carbon steel and galvanized . features typical for components intended to handle substantial hydraulic pressures. However, the exact pressure rating (maximum working pressure) is not stated in the provided description. To determine the safe operating pressure you must consult the manufacturer's technical datasheet or contact the supplier for the rated maximum working pressure and applicable standards (e.g., DIN/ISO), as ratings depend on size, thread, wall thickness and heat treatment. Without that documentation, a precise pressure value cannot be confirmed.

Does the Adaptor - tee T with GW BSP, carbon steel, type A117 include swivel nuts with 60Â° cone sealing for BSP male fittings?

Yes. The Adaptor - tee T with GW BSP, carbon steel, type A117 includes swivel nuts with 60Â° cone sealing for BSP male fittings, as described: high-pressure tee type A117 with internal BSP threads, with swivel nuts (60Â° cone sealing). Material: carbon steel, galvanized.

Can the Adaptor - tee T with GW BSP, carbon steel, type A117 be used with non-BSP threaded components?

Adaptor - tee T with GW BSP, carbon steel, type A117 cannot be reliably used with nonâBSP threaded components. The product description specifies internal BSP threads and swivel nuts with 60Â° cone sealing designed for British Standard Pipe (BSP) thread geometry and sealing practice. BSP threads have specific pitch, thread angle and diameter standards (parallel BSPP or tapered BSPT) that differ from other common thread systems (e.g., NPT, metric, UN). Mixing thread forms typically prevents proper thread engagement, risks thread damage, and can create leaks or unsafe mechanical connections. Additionally, the 60Â° cone sealing and swivel nut arrangement are engineered to seal against BSPâcompatible mating faces; a nonâBSP counterpart will not match the seating geometry, compromising the highâpressure sealing performance. For safe, pressureârated, and leakâfree assemblies you should use mating components with matching BSP threads or obtain an appropriate adapter explicitly designed to convert between BSP and the target thread standard. If in doubt, consult manufacturer specifications or a qualified engineer to verify compatibility for your specific pressure and application.

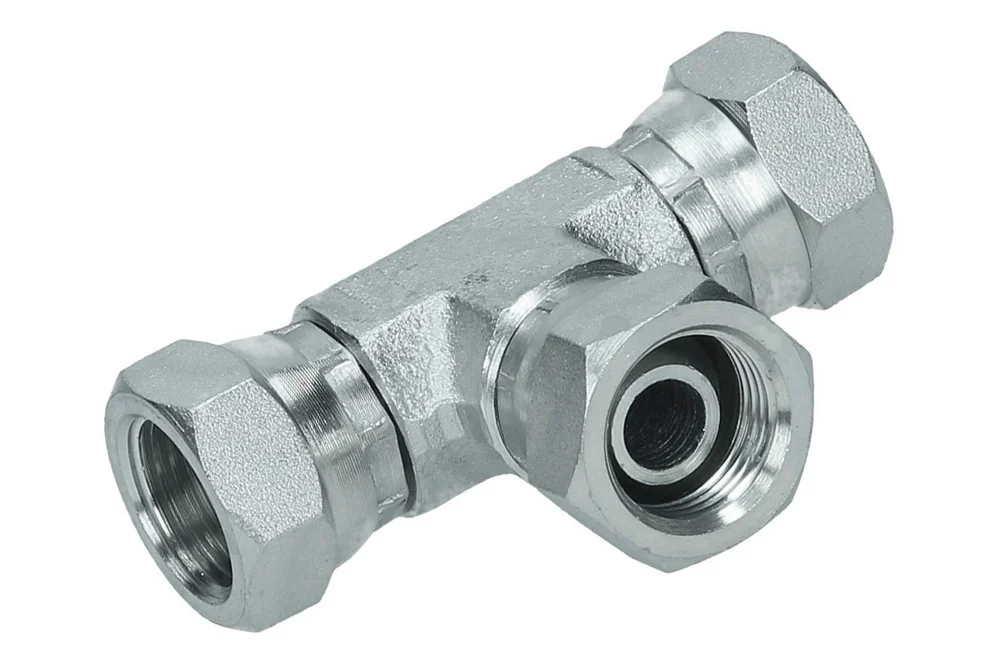

Adaptor – tee T with GW BSP, carbon steel, type A117

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adaptor – high-pressure tee type A117 with internal BSP threads, with swivel nuts (60° cone sealing). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A117-02	Tee 3 x G 1/8 BSP	-	400	In stock	Enquiry
TI-A117-04	Tee 3 x G 1/4" BSP	-	400	In stock	Enquiry
TI-A117-06	Tee 3 x G threaded BSP 3/8"	-	400	In stock	Enquiry
TI-A117-08	Tee 3 x G 1/2" BSP	-	350	In stock	Enquiry
TI-A117-12	Tee 3 x G threaded BSP 3/4"	-	315	In stock	Enquiry
TI-A117-16	3-way tee 3 x G threaded BSP 1"	-	250	In stock	Enquiry
TI-A117-20	Tee 3 x G 1/4 BSP	-	200	In stock	Enquiry
TI-A117-24	Tee 3 x G threaded BSP 1.1/2"	-	160	In stock	Enquiry
TI-A117-32	3-way tee 3 x G threaded BSP 2"	-	125	In stock	Enquiry
