Is the Adaptor - plug with GZ BSP, stainless steel, type A113 compatible with high-pressure systems using a 60Â° cone sealing and AISI 316L construction?

Yes. Adaptor - plug with GZ BSP, stainless steel, type A113 is compatible. The product description specifies it is a high-pressure plug type A113 with external BSP thread and 60Â° cone sealing, manufactured from AISI 316L stainless steel. That matches your requirements for a 60Â° cone sealing and AISI 316L construction suitable for high-pressure systems. Ensure thread size and pressure rating match your system specifications before installation.

Does the Adaptor - plug with GZ BSP, stainless steel, type A113 support sealing with external BSP thread and 60Â° cone at high pressures?

Yes. The Adaptor - plug with GZ BSP, stainless steel, type A113 (Adaptor - high-pressure plug type A113 with external BSP thread (60Â° cone sealing). Material: AISI 316L steel) is designed for 60Â° cone sealing on an external BSP thread and, being made of corrosion-resistant AISI 316L stainless steel and specified for high-pressure use, supports reliable sealing at high pressures when installed correctly and used with compatible mating surfaces.

Can the Adaptor - plug with GZ BSP, stainless steel, type A113 withstand corrosion in aggressive media due to its AISI 316L construction?

Yes. The Adaptor - plug with GZ BSP, stainless steel, type A113, manufactured from AISI 316L, offers good resistance to corrosion in many aggressive media. AISI 316L is a low-carbon austenitic stainless steel with significant molybdenum content, which improves resistance to pitting and crevice corrosion compared with 304-grade steels, especially in chloride-containing environments. Its low carbon content also reduces susceptibility to sensitization and intergranular corrosion after welding or exposure to elevated temperatures. Practical considerations: - Suitable media: seawater splashes, many acids, alkalis and chloride-bearing environments at moderate temperatures and concentrations are typically tolerated. - Limitations: Highly oxidizing acids (e.g., concentrated nitric acid), hot concentrated chlorides, strong reducing acids, and halide-rich high-temperature environments can still cause corrosion or stress corrosion cracking. Localized attack is possible under stagnant conditions, deposits, or where crevices form. - Temperature and concentration: Corrosion resistance depends on temperature, chemical concentration, flow, and oxygen content. Elevated temperatures and high chloride concentrations reduce performance. - Surface condition and design: Proper surface finish, avoidance of crevices, correct installation and regular inspection extend service life. - Verification: For critical or unusually aggressive service, consult specific chemical compatibility charts, perform site-specific testing, or consider higher-alloy materials (e.g., duplex, superaustenitic, or nickel-based alloys). Conclusion: The Adaptor - plug with GZ BSP, stainless steel, type A113 will withstand corrosion in many aggressive media due to its AISI 316L construction, but confirm compatibility for the exact chemicals, temperatures, and service conditions to ensure long-term performance.

Adaptor – plug with GZ BSP, stainless steel, type A113

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

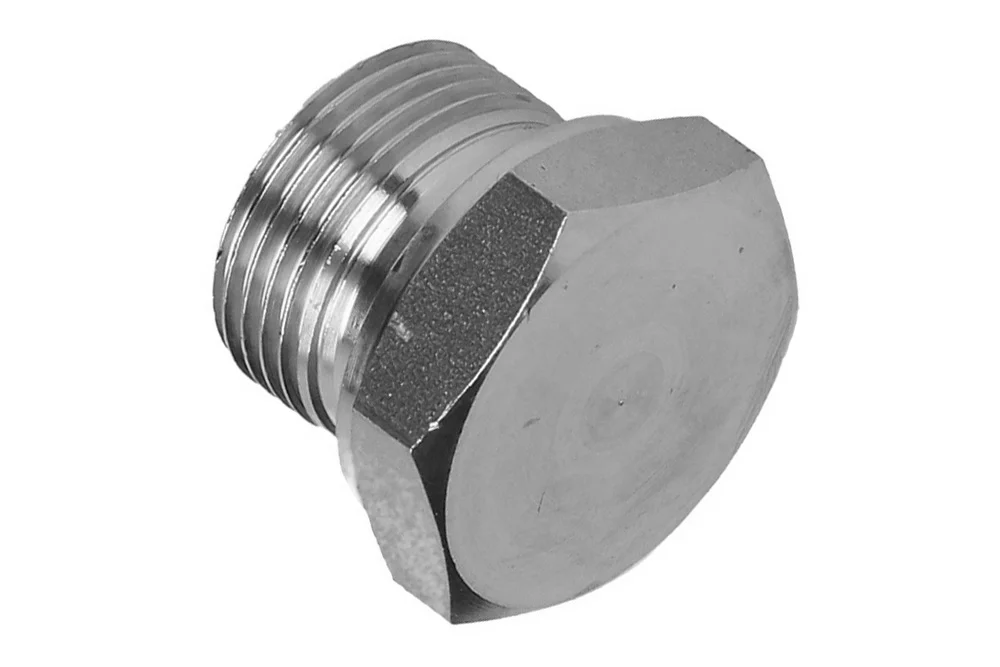

Adaptor – high-pressure plug type A113 with external BSP thread (60° cone sealing). Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A113-02-SS	GZ BSP plug 1/8", AISI 316	-	400	In stock	Enquiry
TI-A113-04-SS	Plug GZ BSP 1/4", AISI 316	-	400	In stock	Enquiry
TI-A113-06-SS	GZ BSP plug 3/8", AISI 316	-	400	In stock	Enquiry
TI-A113-08-SS	GZ BSP plug 1/2", AISI 316	-	350	In stock	Enquiry
TI-A113-12-SS	GZ BSP plug 3/4", AISI 316	-	315	In stock	Enquiry
TI-A113-16-SS	GZ BSP 1" plug, AISI 316	-	250	In stock	Enquiry
TI-A113-20-SS	GZ BSP plug 1.1/4", AISI 316	-	200	In stock	Enquiry
TI-A113-24-SS	GZ BSP plug 1.1/2", AISI 316	-	160	In stock	Enquiry
TI-A113-32-SS	GZ BSP 2" plug, AISI 316	-	125	In stock	Enquiry
