Is the Adaptor - plug with GZ NPT, stainless steel, type A313 compatible with other thread sealants or must the thread-only (NPT) seal be used?

Adaptor - plug with GZ NPT, stainless steel, type A313 uses an external NPT thread with sealing on the thread (threaded seal). NPT threads seal by metal-to-metal fit plus deformation of thread sealant; therefore the component is designed to be sealed at the threads rather than relying on a separate face or gasket seal. You may use common NPT thread sealants (PTFE tape, pipe dope/pipe thread compounds) compatible with stainless steel and the service media (pressure, temperature, chemicals). Ensure the sealant is rated for the systemâs pressure and chemical exposure and that application follows manufacturer recommendations to avoid excess build-up that could alter thread engagement or contaminate the system. Do not use seal methods intended for parallel threads or face-sealing fittings (e.g., O-rings or flat gaskets) as primary sealing for this part.those will not provide a reliable seal on a tapered NPT external thread. In short: thread-only (NPT) sealing is required; approved NPT-compatible sealants (PTFE tape or pipe dope) are acceptable if compatible with AISI 316L and operating conditions.

Can the Adaptor - plug with GZ NPT, stainless steel, type A313 withstand high-pressure cycling and repeated installations without seal degradation?

Adaptor - plug with GZ NPT, stainless steel, type A313 is made of AISI 316L and uses the seal on the thread (external NPT). AISI 316L offers excellent corrosion resistance and mechanical strength suitable for high-pressure environments. However, NPT thread seals rely on thread deformation and sealing material (tape/compound) rather than a dedicated elastomeric gasket; repeated high-pressure cycling and multiple installations/removals can accelerate thread wear and compromise the seal if improper sealing practice or insufficient torque is used. In summary: the material is appropriate for high-pressure use, but seal longevity under frequent cycling and repeated installations depends on correct sealing procedure, proper torque, and inspection - repeated removals increase risk of seal degradation.

Does the Adaptor - plug with GZ NPT, stainless steel, type A313 require torque limits during installation to avoid damage?

Yes. The Adaptor - plug with GZ NPT, stainless steel, type A313 requires controlled torque during installation to avoid damage. Although made of AISI 316L stainless steel (good corrosion and strength properties), NPT threads seal by interference and thread deformation; overâtightening can strip threads, gall or crack the fitting, damage the mating thread, or compromise the thread sealant. Underâtightening risks leaks. Recommendations: - Follow the torque limits or installation procedure provided by the manufacturer. If no specific torque is given, tighten to typical torque ranges for stainless steel NPT fittings of comparable size and wall thickness, using calibrated tools. - Use a proper thread sealant (PTFE tape or pipe dope) compatible with NPT and the service medium; apply correctly to avoid overfilling the first thread. - Apply torque incrementally and stop when a reliable tactile/visual stop and proper seal are achieved; avoid shock or impact wrench overâtorquing. - For critical or highâpressure systems, verify torque on sample fittings, or consult an engineer/manufacturer for exact values based on thread size, pressure rating and service conditions. If you provide the thread size (NPT size) and application pressure/medium, I can suggest more specific torque guidance.

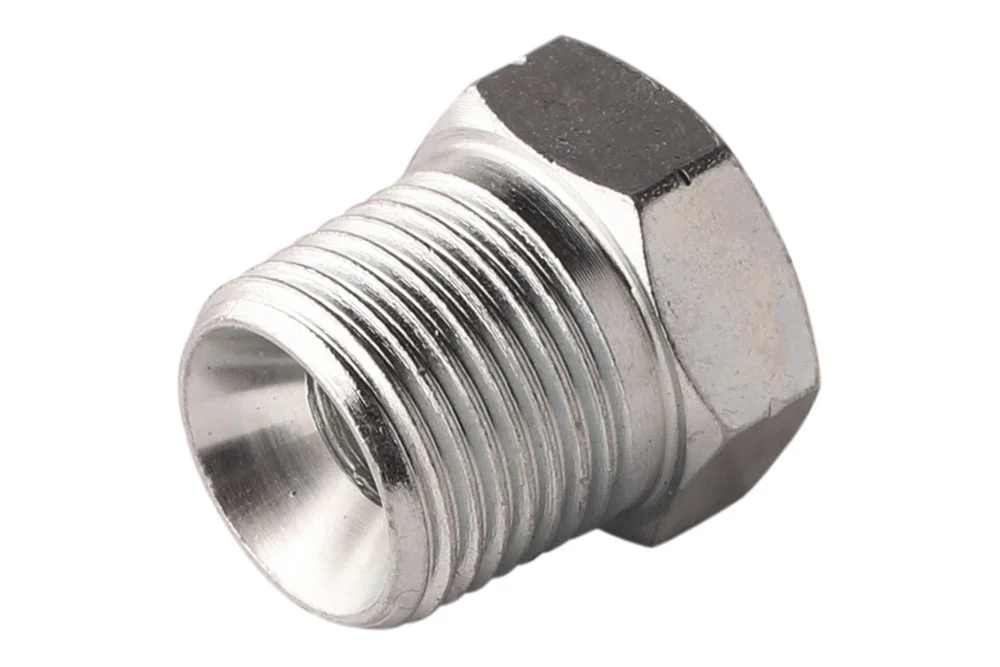

Adaptor – plug with GZ NPT, stainless steel, type A313

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

Adaptor – high-pressure plug type A313 with external NPT thread (seal on the thread). Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A313-02-SS	Plug GZ NPT 1/8", AISI 316	-	345	In stock	Enquiry
TI-A313-04-SS	GZ plug NPT 1/4", AISI 316	-	345	In stock	Enquiry
TI-A313-06-SS	GZ plug NPT 3/8", AISI 316	-	276	In stock	Enquiry
TI-A313-08-SS	GZ plug NPT 1/2", AISI 316	-	241	In stock	Enquiry
TI-A313-12-SS	GZ plug NPT 3/4", AISI 316	-	155	In stock	Enquiry
TI-A313-16-SS	NPT 1" GZ plug, AISI 316	-	138	In stock	Enquiry
TI-A313-20-SS	GZ plug NPT 1.1/4", AISI 316	-	112	In stock	Enquiry
TI-A313-24-SS	GZ plug NPT 1.1/2", AISI 316	-	86	In stock	Enquiry
TI-A313-32-SS	NPT 2" GZ Plug, AISI 316	-	78	In stock	Enquiry
