Is the Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 suitable for high-pressure hydraulic systems with 60Â° cone BSP seals?

Yes. The Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 is suitable for high-pressure hydraulic systems that use 60Â° cone BSP seals. The product description specifies a high-pressure "T" fitting with an internal BSP thread (60Â° cone seal) and two external BSP threads (60Â° cone seal), and it is made of AISI 316L stainless steel.materials and sealing geometry compatible with high-pressure hydraulic applications. Ensure thread sizes and rated pressure of this specific A127 variant match your system requirements and follow proper assembly torques and sealing practices.

Does the Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 support 60Â° cone BSP sealing for high-pressure applications?

Yes. The Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 supports 60Â° cone BSP sealing for high-pressure applications. Its design includes an internal BSP thread with a 60Â° cone seal and two external BSP threads with 60Â° cone seals, and it is manufactured from AISI 316L stainless steel suitable for high-pressure service.

Can the Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 be used with BSP 60Â° cone seals under high pressure?

Yes. the Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 can be used with BSP 60Â° cone seals under high pressure. Rationale: - The product description specifies a high-pressure "T" fitting type A127 with internal BSP thread (60Â° cone seal) and 2 x external BSP threads (60Â° cone seal), explicitly indicating compatibility with BSP 60Â° cone seals on all ports. - Material is AISI 316L stainless steel, which is commonly used for high-pressure hydraulic and process fittings due to good strength, corrosion resistance and suitability for demanding environments. - The design intent (high-pressure adaptor and 60Â° cone sealing faces) means it is manufactured for metal-to-metal cone sealing, which provides reliable sealing under elevated pressures when correctly assembled with matching BSP cone-threaded counterparts and appropriate torque. Important practical notes (for safe use): - Ensure mating male/female BSP threads and cone angles match precisely (60Â°) and surfaces are undamaged. - Use correct thread engagement and recommended torque values; avoid over- or under-tightening. - Inspect cone seats for burrs or contamination; replace any damaged fittings or seals. - Verify pressure ratings for the specific size and application from manufacturer documentation and ensure system pressure does not exceed those limits. - Consider temperature, media compatibility and any applicable safety standards or certifications. Conclusion: The Adaptor - T-piece "T" with GW BSP/2 x GZ BSP, stainless steel, type A127 is designed for use with BSP 60Â° cone seals under high pressure, provided proper matching, assembly and adherence to specified pressure/temperature limits.

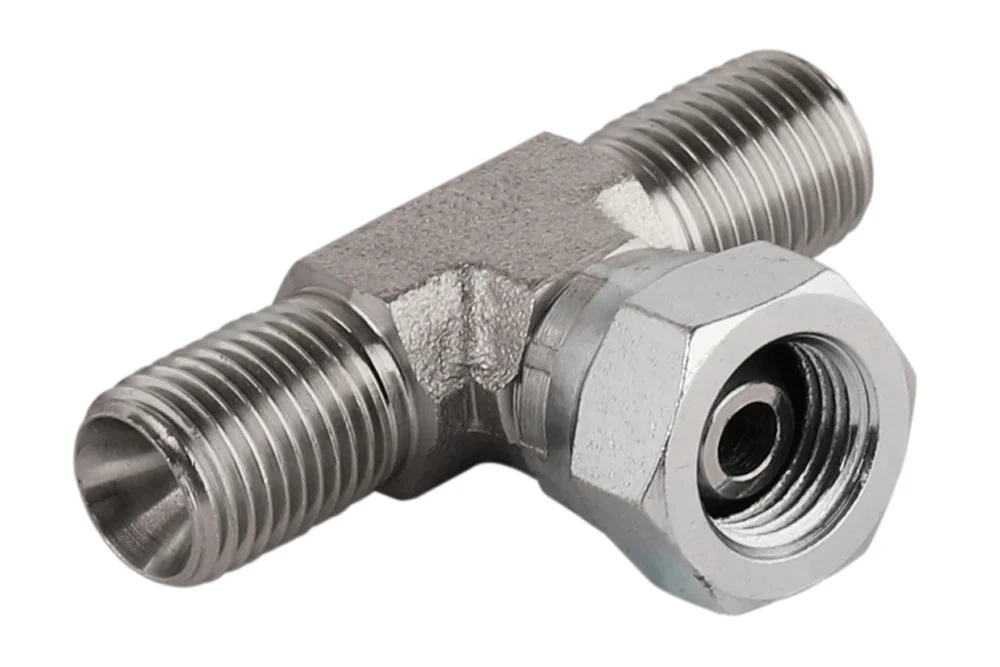

Adapter – tee “T” with BSP female/2 x BSP male, stainless steel, type A127

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

Adapter – tee “T” high-pressure type A127 with BSP female thread (60° cone sealing) and with 2 x BSP male thread (60° cone sealing). Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A127-02-SS	Tee "T" 1/8" BSP female / 2 x 1/8" BSP male, AISI 316	-	400	In stock	Enquiry
TI-A127-04-SS	Tee "T" 1/4" BSP female / 2 x 1/4" BSP male, AISI 316	-	400	In stock	Enquiry
TI-A127-06-SS	Tee "T" 3/8" BSP female / 2 x 3/8" BSP male, AISI 316	-	400	In stock	Enquiry
TI-A127-08-SS	Tee "T" 1/2" BSP female / 2 x 1/2" BSP male, AISI 316	-	350	In stock	Enquiry
TI-A127-12-SS	Tee "T" 3/4" BSP female / 2 x 3/4" BSP male, AISI 316	-	315	In stock	Enquiry
TI-A127-16-SS	Tee "T" 1" BSP female / 2 x 1" BSP male, AISI 316	-	250	In stock	Enquiry
TI-A127-20-SS	Tee "T" 1.1/4" BSP female / 2 x 1.1/4" BSP male, AISI 316	-	200	In stock	Enquiry
TI-A127-24-SS	Tee "T" 1.1/2" BSP female / 2 x 1.1/2" BSP male, AISI 316	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adapter – tee “T” high-pressure type A127 with BSP female thread (60° cone sealing) and with 2 x BSP male thread (60° cone sealing). Material: AISI 316L.
