Is the Adaptor - T-piece with GW NPT, stainless steel, type A309 compatible with high-pressure systems using 3 x NPT connections and seal-on-thread fittings?

Yes. The Adaptor - T-piece with GW NPT, stainless steel, type A309 is suitable for highâpressure systems that use three NPT connections with sealâonâthread fittings. Its design features three internal NPT threads (3 x NPT) intended for sealâonâthread installation, and construction from AISI 316L stainless steel provides excellent strength, corrosion resistance and pressure capability typical for highâpressure fluid and gas applications. Ensure compatibility by verifying the systemâs maximum operating pressure against the pressure rating specified by the manufacturer for type A309 and confirming correct thread size, proper thread sealing method (sealant or PTFE tape rated for the media and pressure), and torque to avoid thread damage or leaks.

Does the Adaptor - T-piece with GW NPT, stainless steel, type A309 meet pressure ratings and certification for use with high-pressure seal-on-thread 3 x NPT systems?

Based on the provided description, Adaptor - T-piece with GW NPT, stainless steel, type A309 (high-pressure tee type A309 with internal thread 3 x NPT, seal on the thread, material AISI 316L) is designed for seal-on-thread NPT connections and uses corrosion-resistant AISI 316L suitable for high-pressure applications. However, the description does not specify rated pressure limits, applicable pressure class, nor any certification (e.g., PED, ASME, ISO) or test data. Therefore you cannot confirm conformance to specific pressure ratings or required certifications for high-pressure seal-on-thread 3 x NPT systems without manufacturer-supplied pressure ratings and certification documentation. Request the manufacturerâs pressure rating table, maximum allowable working pressure (MAWP), and relevant certificates to verify suitability.

Can the Adaptor - T-piece with GW NPT, stainless steel, type A309 with internal 3 x NPT threads be used with seal-on-thread fittings in corrosive environments?

Yes. the Adaptor - T-piece with GW NPT, stainless steel, type A309 with internal 3 x NPT threads can be used with seal-on-thread fittings in corrosive environments, with these important caveats: 1. Material compatibility: The part is made of AISI 316L stainless steel, which offers good corrosion resistance in many corrosive media (chlorides, mild acids, seawater aerosols). For highly aggressive chemicals (concentrated chlorides, strong acids, HCl, H2SO4 at elevated temperature, some reducing environments) 316L may not be sufficient; consider higher-alloy materials (e.g., duplex, superaustenitic, or nickel alloys). 2. Seal-on-thread suitability: The A309 is specified as âseal on the thread.â Proper sealing requires appropriate thread sealant (PTFE tape rated for pressure/chemical service, anaerobic sealants, or gasket compounds compatible with NPT and media). Use sealants compatible with both the process fluid and 316L, and rated for the operating pressure and temperature. 3. Corrosion points: Threads and sealing compound can create crevice or galvanic sites. Ensure threads are clean, correctly assembled (proper torque, avoid over-tightening), and that thread sealant does not promote crevice corrosion. 4. Operating conditions: Verify service pressure, temperature, and mechanical loading. High temperature or pressure can reduce sealant performance and accelerate corrosion. Confirm A309âs pressure-temperature ratings and that the chosen sealant maintains integrity in those conditions. 5. Maintenance and inspection: In corrosive environments, plan periodic inspection for corrosion, thread wear, or sealant degradation. Replace sealant or the fitting if signs of attack appear. Conclusion: For many corrosive environments the Adaptor - T-piece with GW NPT, stainless steel, type A309 (AISI 316L, internal 3 x NPT) can be used with seal-on-thread fittings if media, temperature, and pressure are compatible with 316L and an appropriate chemical-resistant thread sealant is applied and maintained. For highly aggressive chemistries or critical services, specify a more corrosion-resistant material and consult materials/chemical compatibility data and the manufacturerâs pressure-temperature limits.

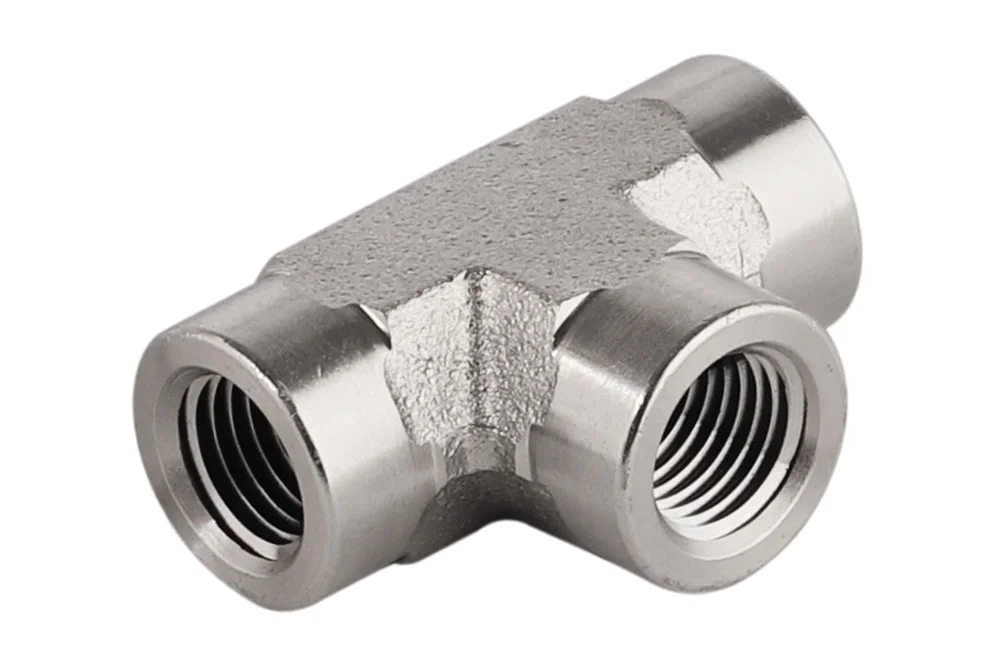

Adaptor – T-piece with GW NPT, stainless steel, type A309

All products, High-pressure adapters/

Additional information

Material	SS – stainless steel

Adaptor – high-pressure tee type A309 with internal thread 3 x NPT (seal on the thread). Material: AISI 316L steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A309-02-SS	3-way tee 3 x GW NPT 1/8", AISI 316	-	345	In stock	Enquiry
TI-A309-04-SS	3-way tee 3 x GW NPT 1/4", AISI 316	-	345	In stock	Enquiry
TI-A309-06-SS	3-way tee 3 x GW NPT 3/8", AISI 316	-	276	In stock	Enquiry
TI-A309-08-SS	3-way tee 3 x GW NPT 1/2", AISI 316	-	241	In stock	Enquiry
TI-A309-12-SS	3-way tee 3 x GW NPT 3/4", AISI 316	-	155	In stock	Enquiry
TI-A309-16-SS	3-way tee 3 x GW NPT 1", AISI 316	-	138	In stock	Enquiry
