Is the Adaptor - tee with GZ BSP, carbon steel, type A109 suitable for high-pressure hydraulic systems with 60Â° cone BSP external threads?

Yes. The Adaptor - tee with GZ BSP, carbon steel, type A109 is described as a high-pressure tee with three external BSP threads featuring a 60Â° sealing cone and is made of carbon steel with galvanised finish. That specification indicates it is intended for high-pressure hydraulic systems that use BSP external threads with a 60Â° cone seal. Ensure the specific pressure rating and compatibility with your systemâs fluid, operating temperature, and required certification are confirmed against the supplierâs datasheet, but based on the provided description the part is suitable for 60Â° cone BSP high-pressure hydraulic applications.

Does the Adaptor - tee with GZ BSP, carbon steel, type A109 require specific torque values for sealing 60Â° cone BSP external threads?

Adaptor - tee with GZ BSP, carbon steel, type A109 Format: The description ("high-pressure tee type A109 with external thread 3 x BSP (seal cone 60Â°). Material: carbon steel, galvanized") does not state specific torque values. For sealing 60Â° cone BSP external threads, torque depends on thread size, lubrication/galvanizing, and mating material. Use manufacturerâs torque spec if provided; otherwise follow standard BSP 60Â° cone torque guidelines or calculate using recommended preload tables for thread size and coating. If unavailable, tighten until metal-to-metal cone contact is achieved plus an additional fraction of a turn (commonly 1/8â1/4 turn) while avoiding over-torquing. For safety and leak-free joints on high-pressure fittings, consult product datasheet or supplier for exact torque values.

How do I properly maintain the Adaptor - tee with GZ BSP, carbon steel, type A109 to prevent corrosion after galvanization damage?

To properly maintain the Adaptor - tee with GZ BSP, carbon steel, type A109 and prevent corrosion after galvanization damage, follow these steps: 1. Immediate cleaning - Remove loose zinc, rust, grease and dirt with a wire brush or non-metallic abrasive pad. - Degrease the surface using a suitable solvent (e.g., acetone or white spirit). Rinse and dry thoroughly. 2. Surface preparation - Lightly abrade the damaged area to bright metal with fine abrasive (P120âP220) to create a clean, slightly roughened surface for coating adhesion. - Remove dust and residues with a clean cloth and solvent. 3. Apply corrosion-inhibiting primer - Use a zinc-rich cold galvanizing compound or zinc-rich epoxy primer compatible with carbon steel. Apply according to manufacturer instructions to restore sacrificial protection. - Ensure full coverage of exposed steel and feather the primer onto adjacent intact galvanizing to avoid abrupt edges. 4. Topcoat protection - After primer cure, apply a corrosion-resistant topcoat (epoxy or polyurethane) suitable for the service environment (industrial, marine, high humidity). Two coats are recommended for long-term protection. - For threaded sealing areas (cone 60Â°), avoid heavy coating on threads; protect sealing surfaces while ensuring threads remain functionalâmask or carefully brush on product. 5. Thread and sealing care - For external BSP threads, apply a suitable thread sealant or PTFE tape rated for pressure and media used, after coatings cure. Do not coat the cone sealing faces where metal-to-metal contact is required; keep them clean and lightly lubricated with anti-seize if appropriate and compatible with the sealant. 6. Mechanical damage prevention - Protect the Adaptor - tee with GZ BSP, carbon steel, type A109 during handling and installation using protective caps or wrapping. - Avoid overtightening and use correct tools to prevent scratches or gouges of coated areas. 7. Regular inspection and touch-up - Inspect periodically for chips, scratches, or corrosionâfrequency based on environment (e.g., monthly in aggressive environments). - Touch up minor damage immediately: clean, prime with zinc-rich product, then topcoat. 8. Environmental and operational considerations - Minimize exposure to corrosive chemicals, salt spray, and moisture when possible. - If used in highly corrosive or offshore environments, consider replacing with stainless steel or applying additional protective systems (mechanical barriers, cathodic protection). Following these steps will restore sacrificial protection lost from damaged galvanization and prolong the service life of the Adaptor - tee with GZ BSP, carbon steel, type A109.

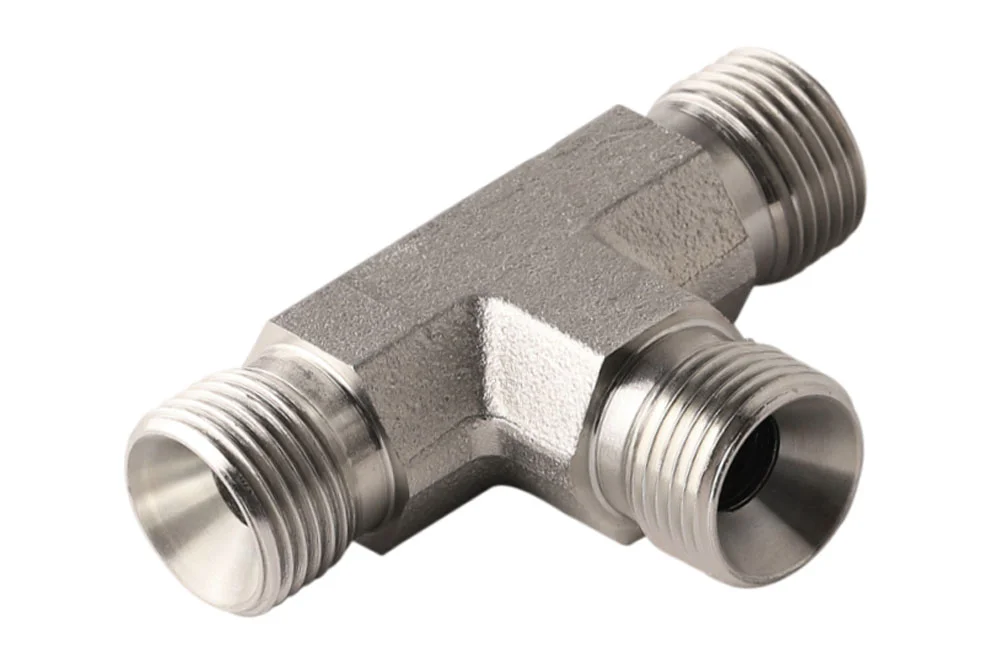

Adaptor – tee with GZ BSP, carbon steel, type A109

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Adaptor – high-pressure tee type A109 with external thread 3 x BSP (seal cone 60°). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A109-02	Tee 3 x G threaded BSP 1/8"	-	400	In stock	Enquiry
TI-A109-04	Tee 3 x G threaded BSP 1/4"	-	400	In stock	Enquiry
TI-A109-06	Tee 3 x G threaded BSP 3/8"	-	400	In stock	Enquiry
TI-A109-08	Tee 3 x G threaded BSP 1/2"	-	350	In stock	Enquiry
TI-A109-10	Tee 3 x GZ BSP 5/8"	-	350	In stock	Enquiry
TI-A109-12	Tee 3 x G threaded BSP 3/4"	-	315	In stock	Enquiry
TI-A109-16	Tee 3 x G threaded BSP 1"	-	250	In stock	Enquiry
TI-A109-20	Tee 3 x G threaded BSP 1.1/4"	-	200	In stock	Enquiry
TI-A109-24	Tee 3 x G threaded BSP 1.1/2"	-	160	In stock	Enquiry
TI-A109-32	Tee 3 x G threaded BSP 2"	-	125	In stock	Enquiry
