Is the Straight nipple adjustable SNV, carbon steel compatible with both L (light) and S (heavy) series per DIN 2353?

Yes. The Straight nipple adjustable SNV, carbon steel is offered in both L (light) and S (heavy) series per DIN 2353. The fitting is a 24Â° DIN 2353 socket with Oâring and internal metric thread on both sides; availability in L and S series means configurations exist for the light and heavy pressure/size ranges defined by DIN 2353. Ensure you select the correct series and corresponding dimensions/pressure ratings for your application.

Can the Straight nipple adjustable SNV, carbon steel be fitted with O-rings and internal metric threads on both sides per DIN 2353?

Yes. The Straight nipple adjustable SNV, carbon steel can be fitted with O-rings and internal metric threads on both sides per DIN 2353 - it is described as a 24Â° DIN 2353 socket with O-ring and internal metric thread on both sides, available in L (light) and S (heavy) series, made of carbon steel, galvanized.

Does Straight nipple adjustable SNV, carbon steel meet DIN 2353 torque and sealing requirements for L and S series?

Yes. Straight nipple adjustable SNV, carbon steel is designed to meet DIN 2353 requirements for both torque and sealing when used in the L (light) and S (heavy) series, provided the correct series components and proper installation procedures are followed. Key points: - Design: Straight nipple adjustable SNV, carbon steel is a 24Â° DIN 2353 type with an O-ring and internal metric thread on both sides, which matches the DIN 2353 straight adjustable fitting specification. - Sealing: The 24Â° cone plus O-ring arrangement is the DIN-intended sealing method. When mated with corresponding DIN 2353 L- or S-series sockets and properly fitted O-rings, the assembly achieves the required metal-to-metal cone and elastomeric secondary seal, ensuring leak-tight performance per the standard. - Torque: DIN 2353 specifies assembly torques and tightening procedures appropriate to the series and thread sizes. Using components from the same series (L or S), correct threads, and applying the specified torque values during assembly ensures the joint attains the required preload and sealing integrity. Torque requirements differ between L and S series and by nominal size; always follow the DIN-prescribed torque table or manufacturer's equivalent. - Materials and plating: Carbon steel, galvanized, is a standard material for DIN fittings and, when within manufacturer material specifications and surface treatment tolerances, is acceptable for meeting the standard's mechanical and sealing criteria. Conditions and cautions: - Use matching series components (L with L, S with S); mixing series can compromise torque/seal performance. - Use correct O-ring type, size, and condition as specified for the fitting and application. - Follow DIN 2353 tightening sequence, lubrication, and torque values for the specific thread size and series. - Ensure components are undamaged, clean, and within manufacturing tolerances. Conclusion: Straight nipple adjustable SNV, carbon steel will meet DIN 2353 torque and sealing requirements for both L and S series when paired with corresponding series components and assembled per DIN 2353 specifications.

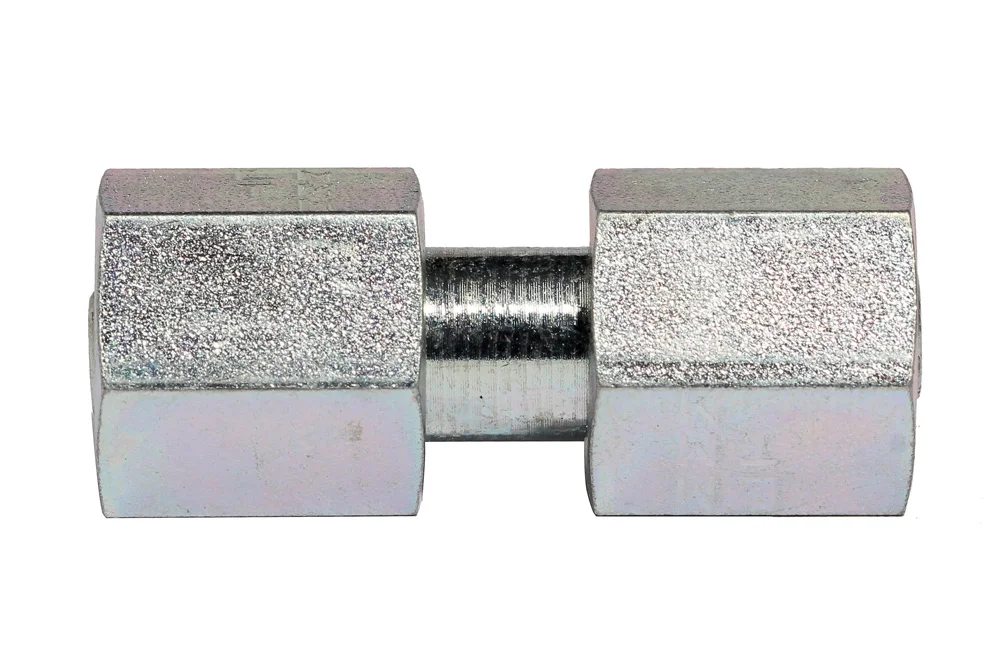

Fitting straight adjustable SNV, carbon steel

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 straight adjustable, type SNV: 24° DIN 2353 socket on both sides with an O-ring with metric female thread. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-SNV-06L	Fitting DIN 2353 SNV 6L	-	315	In stock	Enquiry
HD-SNV-06S	Fitting DIN 2353 SNV 6S	-	630	In stock	Enquiry
HD-SNV-08L	Fitting DIN 2353 SNV 8L	-	315	In stock	Enquiry
HD-SNV-08S	Fitting DIN 2353 SNV 8S	-	630	In stock	Enquiry
HD-SNV-10L	Fitting DIN 2353 SNV 10L	-	315	In stock	Enquiry
HD-SNV-10S	Fitting DIN 2353 SNV 10S	-	630	In stock	Enquiry
HD-SNV-12L	Fitting DIN 2353 SNV 12L	-	315	In stock	Enquiry
HD-SNV-12S	Fitting DIN 2353 SNV 12S	-	630	In stock	Enquiry
HD-SNV-14S	Fitting DIN 2353 14S	-	630	In stock	Enquiry
HD-SNV-15L	Fitting DIN 2353 SNV 15L	-	315	In stock	Enquiry
HD-SNV-16S	Fitting DIN 2353 SNV 16S	-	400	In stock	Enquiry
HD-SNV-18L	Fitting DIN 2353 SNV 18L	-	315	In stock	Enquiry
HD-SNV-20S	Fitting DIN 2353 SNV 20S	-	400	In stock	Enquiry
HD-SNV-22L	Fitting DIN 2353 SNV 22L	-	160	In stock	Enquiry
HD-SNV-25S	Fitting DIN 2353 SNV 25S	-	400	In stock	Enquiry
HD-SNV-28L	Fitting DIN 2353 SNV 28L	-	160	In stock	Enquiry
HD-SNV-30S	Fitting DIN 2353 SNV 30S	-	400	In stock	Enquiry
HD-SNV-35L	Fitting DIN 2353 SNV 35L	-	160	In stock	Enquiry
HD-SNV-38S	Fitting DIN 2353 SNV 38S	-	315	In stock	Enquiry
HD-SNV-42L	Fitting DIN 2353 SNV 42L	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 straight adjustable, type SNV: 24° DIN 2353 socket on both sides with an O-ring with metric female thread. Available as: L (series light), S (series heavy). Material: carbon steel, galvanized.
