Can the Plug tee "T" adjustable with male thread, type R32 be used with gases other than air and vacuum, and are there special precautions for temperatures between -20Â°C and +80Â°C?

Plug tee "T" adjustable with male thread, type R32 is specified for vacuum and air only. Use with other gases is not recommended unless the gas is compatible with the materials and sealing specified: nickel-plated brass body and NBR (nitrile) seals. Many gases (inert gases like nitrogen, argon) may be compatible, but reactive, corrosive, oxygen-enriched, flammable or toxic gases can pose material, safety and certification issues. Before using other gases, verify chemical compatibility of brass and NBR with the specific gas, confirm leak-tightness under expected pressure (max 16 bar), and ensure compliance with safety and regulatory requirements for that gas. For the stated temperature range (-20Â°C to +80Â°C) note: NBR loses flexibility and sealing performance below about -20Â°C and degrades above ~80Â°C; near these limits seal life and leak tightness can be compromised. Take these precautions: - Do not exceed -20Â°C / +80Â°C for continuous operation. - If temperature cycles or extremes are expected, test sealing performance with the actual gas and pressure. - For oxygen or other reactive gases, even within temperature limits, consult standards and use oxygen-clean materials and compatible seals. - Inspect and replace seals regularly if used near temperature limits or with aggressive gases. If using gases other than air/vacuum, contact the manufacturer or a materials compatibility expert and perform suitability and safety checks before application.

Is the Plug tee "T" adjustable with male thread, type R32 compatible with oil mist or inert gases, and any special sealing checks required?

Plug tee "T" adjustable with male thread, type R32 is specified for vacuum and air only; compatible media listed are air and vacuum (inert gases like nitrogen likely acceptable but not explicitly stated). Oil mist is not specified and therefore not recommended. Sealing is NBR (nitrile rubber), which is generally compatible with many inert gases but may swell or degrade with oil, certain synthetic oils, and aggressive chemicals. No special threads or sealing methods are mentioned beyond the built-in NBR seal; for use with oils or non-specified media, verify NBR compatibility with the specific oil and consider alternative sealing materials or additional sealing checks (leak test at working pressure 16 bar, inspect NBR condition, and monitor for degradation).

Does the Plug tee "T" adjustable with male thread, type R32 require special maintenance when used at the 16 bar working pressure?

No special maintenance is required solely because the Plug tee "T" adjustable with male thread, type R32 is used at the specified working pressure of 16 bar, provided the connector is used within its stated parameters and in accordance with good practice. Recommendations to ensure reliable performance: - Operate only within declared limits: working pressure up to 16 bar, temperature range -20Â°C to +80Â°C, and compatible media (vacuum, air). - Inspect seals periodically: the Plug tee "T" adjustable with male thread, type R32 uses NBR sealing; check for wear, hardening or damage and replace seals if compromised (more frequent checks in aggressive or dusty environments). - Check threads and mechanical parts for damage or corrosion: nickel-plated brass resists corrosion, but inspect mating threads and tightening to avoid leaks or galling. - Ensure proper assembly: use correct thread engagement and torque; avoid over-tightening which can damage threads or seals. Use suitable sealing compound only if recommended by manufacturer. - Keep components clean: prevent particulate contamination that can affect sealing surfaces. - Schedule periodic leak tests: especially after installation, maintenance, or if system performance changes. Following these standard maintenance and inspection practices will maintain sealing and function of the Plug tee "T" adjustable with male thread, type R32 at 16 bar.

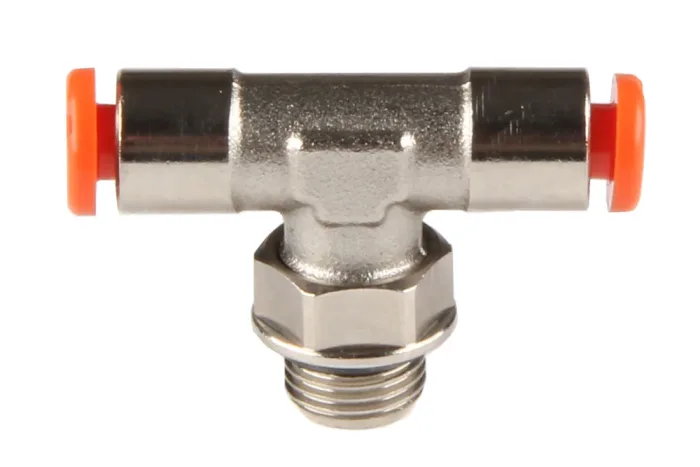

Plug tee “T” adjustable with male thread, type R32

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Adjustable “T” plug connector with external thread, type R32, intended for connecting hoses and other components in pneumatic systems. Easy and quick to use for multiple assemblies without loss of sealing on the mechanical and pneumatic sides. Material: nickel-plated brass. Working pressure: 16 bar. Working medium: vacuum, air. Operating temperature: from -20°C to +80°C. Sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2032005	Adjustable T-connector R32 hose 5 mm, GZ BSP 1/8"	-	16	In stock	Enquiry
MW-2032017	Adjustable T-connector RL32 hose 12 mm, GZ BSP 3/8"	-	16	In stock	Enquiry
MW-2032018	Adjustable T-connector RL32 hose 12 mm, GZ BSP 1/2"	-	16	In stock	Enquiry
MW-2032019	Adjustable T-connector RL32 hose 14 mm, GZ BSP 1/2"	-	16	In stock	Enquiry
MW-2L32001	Adjustable T-connector RL32 hose 4 mm, GZ M5	-	16	In stock	Enquiry
MW-2L32002	Adjustable T-connector RL32 hose 4 mm, GZ BSP 1/8"	-	16	In stock	Enquiry
MW-2L32003	Adjustable T-connector RL32 hose 4 mm, GZ BSP 1/4"	-	16	In stock	Enquiry
MW-2L32004	Adjustable T-connector RL32 hose 6 mm, GZ M5	-	16	In stock	Enquiry
MW-2L32008	Adjustable T-connector RL32 hose 6 mm, GZ BSP 1/8"	-	16	In stock	Enquiry
MW-2L32009	Adjustable T-connector RL32 hose 6 mm, GZ BSP 1/4"	-	16	In stock	Enquiry
MW-2L32010	Adjustable T-connector RL32 hose 8 mm, GZ BSP 1/8"	-	16	In stock	Enquiry
MW-2L32011	Adjustable T-connector RL32 hose 8 mm, GZ BSP 1/4"	-	16	In stock	Enquiry
MW-2L32012	Adjustable T-connector RL32 hose 8 mm, GZ BSP 3/8"	-	16	In stock	Enquiry
MW-2L32013	Adjustable T-connector RL32 hose 10 mm, GZ BSP 1/4"	-	16	In stock	Enquiry
MW-2L32014	Adjustable T-connector RL32 hose 10 mm, GZ BSP 3/8"	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Adjustable “T” plug connector with external thread, type R32, intended for connecting hoses and other components in pneumatic systems. Easy and quick to use for multiple assemblies without loss of sealing on the mechanical and pneumatic sides. Material: nickel-plated brass. Working pressure: 16 bar. Working medium: vacuum, air. Operating temperature: from -20°C to +80°C. Sealing: NBR.
