Is the Ball valve for gas with aluminum butterfly with GW BSP/GZ BSPT, type 7224 suitable for use at -20Â°C to +60Â°C and compliant with PED 2014/68/EU and EN 331+A1?

Yes. Ball valve for gas with aluminum butterfly with GW BSP/GZ BSPT, type 7224 is suitable for use at -20Â°C to +60Â°C and is compliant with PED 2014/68/EU and EN 331+A1. The product description explicitly states the operating temperature range (â20Â°C to +60Â°C) and declares conformity with PED 2014/68/EU and 2009/142/EC in accordance with EN 331 + A1. Materials and seals (nickel-plated brass body, chrome-plated brass ball, aluminum lever, PTFE ball sealing, FKM + NBR stem sealing) are consistent with gas service within that temperature range and pressure class MOP 5.

Does the Ball valve for gas with aluminum butterfly with GW BSP/GZ BSPT, type 7224 meet EN 331 + A1 and PED 2014/68/EU requirements?

Yes. Ball valve for gas with aluminum butterfly with GW BSP/GZ BSPT, type 7224 meets EN 331 + A1 and the PED 2014/68/EU requirements: the product description explicitly states it âComplies with the requirements of the PED directive 2014/68/EU and 2009/142/EC, in accordance with standard EN 331 + A1.â It is intended for gas installations (MOP 5), with materials and seals listed and operating temperature -20Â°C to +60Â°C, consistent with those standards.

Can the Ball valve for gas with aluminum butterfly with GW BSP/GZ BSPT, type 7224 be used in MOP 5 gas systems?

Yes. Ball valve for gas with aluminum butterfly with GW BSP/GZ BSPT, type 7224 is intended for gas installations and explicitly specified for pressure class MOP 5. It complies with PED 2014/68/EU, 2009/142/EC and EN 331 + A1, and its materials and sealing (nickelâplated brass body, chromeâplated brass ball, PTFE ball sealing, FKM+NBR stem sealing) and BSP/Gas BSPT connections are suitable for typical MOP 5 gas system conditions within the stated operating temperature range (â20Â°C to +60Â°C). Based on the provided description, it can be used in MOP 5 gas systems.

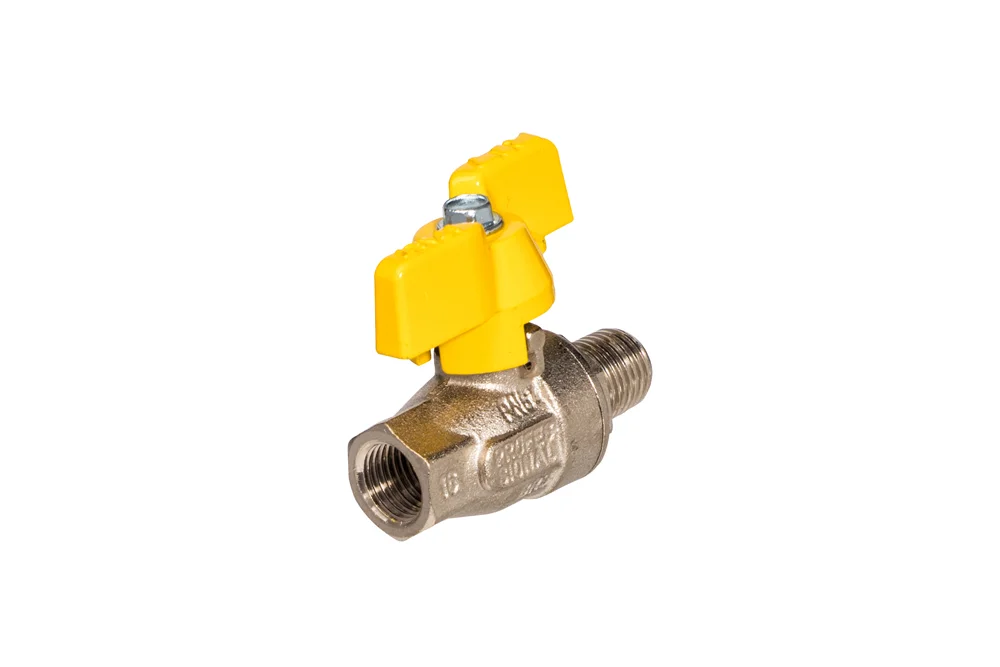

Ball valve for gas with a butterfly handle aluminum with female thread BSP/BSPT male, type 7224

All products, Ball valves/

Additional information

Material	B – brass (bronze)

Universal ball valve type 7224 with full bore, intended for installations gas, in class pressure MOP 5. Meets the requirements of the PED 2014/68/EU directive and 2009/142/WE, compliant with the standard EN 331 + A1. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. connection: BSP female/BSPT male. Operating temperature: from -20°C to +60°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
RV-7224-06	Valve ball for gas type 7224 BSP female/1/4" BSPT male, brass, butterfly lever aluminum	-	5	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal ball valve type 7224 with full bore, intended for installations gas, in class pressure MOP 5. Meets the requirements of the PED 2014/68/EU directive and 2009/142/WE, compliant with the standard EN 331 + A1. Material the body: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. connection: BSP female/BSPT male. Operating temperature: from -20°C to +60°C.
