Is RILSAN HT black polyamide air hose suitable for transporting fuels and oils up to +150Â°C under 44 bar working pressure?

Yes. Based on the provided description, RILSAN HT black polyamide air hose is suitable for transporting fuels and oils up to +150Â°C at working pressures up to 44 bar, with the following caveats: - The hose is explicitly intended for oil and fuel installations and is recommended for hot fluids (fuels, oils, refrigerants) and air. - Operating temperature range is â40Â°C to +150Â°C; note the manufacturer limits water-based media to +70Â°C, but fuels and oils are covered to +150Â°C. - Working pressure is specified from 10 to 44 bar depending on hose diameter and wall thickness, so you must confirm the specific size/version you plan to use can sustain the required 44 bar working pressure. - Material is modified polyamide (PPA) and standards listed (DIN 73378, ISO 7628) support suitability for pneumatic/hydraulic/oil applications. Recommendation: verify the exact part number/dimension to ensure that particular diameter/wall thickness is rated for 44 bar, and check chemical compatibility with the specific fuel/oil at operating temperature.

Can RILSAN HT black polyamide air hose be used for chemical transport at -40Â°C to +150Â°C and which fluids are excluded?

RILSAN HT black polyamide air hose can be used for transporting many pneumatic, hydraulic, oil, fuel, lubrication and chemical fluids across the stated temperature range of -40Â°C to +150Â°C. However, for water-based media the maximum recommended temperature is +70Â°C, and the product description explicitly excludes use with water. Additionally, although chemicals are mentioned, compatibility depends on specific chemical type and concentration-some aggressive solvents, strong acids, bases or swell-inducing chemicals may be incompatible with modified polyamide (PPA). Always verify compatibility for the exact fluid, temperature and pressure conditions against manufacturer chemical-resistance data before use.

Is RILSAN HT black polyamide air hose compatible with refrigeration systems and refrigerants at up to +150Â°C?

Yes. RILSAN HT black polyamide air hose is suitable for refrigeration systems and compatible with refrigerants up to +150Â°C, as the product is specifically recommended for hot fluids including refrigerants and air. Key supporting points from the description: - Hose material: modified polyamide (PPA), designed for pneumatic, hydraulic, oil, fuel, lubrication and chemical installations. - Intended use: particularly recommended for industrial or automotive installations of hot fluids (fuels, oils, refrigerants) or air. water excluded. - Operating temperature range: â40Â°C to +150Â°C (note: for water-based media the maximum is +70Â°C). - Working pressure: 10â44 bar depending on diameter and wall thickness. - Standards: DIN 73378, ISO 7628. Caveats: verify compatibility with the specific refrigerant type, system pressures and any regulatory or safety requirements for your application, and ensure fittings and system components are rated for the same temperatures and pressures.

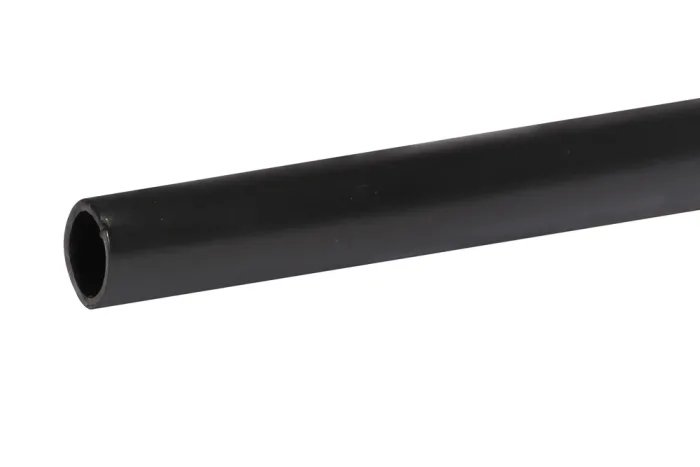

Hose pneumatic polyamide black RILSAN HT

All products, Pneumatic hoses/

Additional information

Material	PA – polyamide
Maximum operating temperature [°C]	150
Minimum operating temperature [°C]	-40
Vacuum resistance	check
Standard length [m]	100, 50

A light, flexible hose with a calibrated outer diameter, intended for pneumatic, hydraulic, oil, fuel, lubrication and chemical systems. especially recommended for industrial or automotive installations hot liquids (fuels, oils, agents refrigerant) or air, not containing water. Available only in black. Hose material: modified polyamide PPA. Working pressure: from 10 bar to 44 bar (depending on the diameter and wall thickness wall hose). Operating temperature: od -40°C for + 150°C (for media based on water +70°C). standard: DIN 73378, ISO 7628.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ZC-RILSAN-HT-04X02BK	Hose nylonowy PPA 4x2 mm, black	2	44	In stock	Enquiry
ZC-RILSAN-HT-05X03BK	Hose nylonowy PPA 5x3 mm, black	3	33	In stock	Enquiry
ZC-RILSAN-HT-06X04BK	Hose nylonowy PPA 6x4 mm, black	4	28	In stock	Enquiry
ZC-RILSAN-HT-08X06BK	Hose nylonowy PPA 8x6 mm, black	6	20	In stock	Enquiry
ZC-RILSAN-HT-10X08BK	Hose nylonowy PPA 10x8 mm, black	8	16	In stock	Enquiry
ZC-RILSAN-HT-12X10BK	Hose nylonowy PPA 12x10 mm, black	10	12	In stock	Enquiry
ZC-RILSAN-HT-14X12BK	Hose nylonowy PPA 14x12 mm, black	12	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A light, flexible hose with a calibrated outer diameter, intended for pneumatic, hydraulic, oil, fuel, lubrication and chemical systems. especially recommended for industrial or automotive installations hot liquids (fuels, oils, agents refrigerant) or air, not containing water. Available only in black. Hose material: modified polyamide PPA. Working pressure: from 10 bar to 44 bar (depending on the diameter and wall thickness wall hose). Operating temperature: od -40°C for + 150°C (for media based on water +70°C). standard: DIN 73378, ISO 7628.
