Is the SMS blanking nut, stainless steel, type SNZ compatible with standard SMS chain-for-SMS end fittings and do I need special tools for installation?

The SMS blanking nut, stainless steel, type SNZ is designed as a blind nut with a chain for SMS ends, made of AISI 304 stainless steel. It is compatible with standard SMS chain-for-SMS end fittings: the thread/profile and chain attachment match typical SMS blanking and coupling components, so it will fit standard SMS end connections used for hygienic process lines. No special tools are generally required for installation beyond common hand tools used with SMS fittings. Installation typically involves hand-tightening and, if needed, a standard wrench to secure the nut to the mating SMS fitting; the chain simply clips or loops to the fitting to retain the cap when not in use. Because the part is stainless AISI 304, avoid excessive over-torquing to prevent deformation. If your installation uses torque-sensitive seals or specific sanitary clamps, follow the system manufacturerâs torque recommendations or use a calibrated torque wrench.

Does the SMS blanking nut, stainless steel, type SNZ require periodic inspection or maintenance to ensure chain-for-SMS ends remain secure?

Yes. The SMS blanking nut, stainless steel, type SNZ should be inspected and maintained periodically. Although made of AISI 304 stainless steel and fitted with a chain to retain the nut on SMS ends, regular checks ensure threads, sealing surfaces and the chain connection remain undamaged, corrosion-free and free of debris. Recommended actions: visual inspection before use, clean threads and sealing faces, verify chain attachment and any crimps or rings for wear or loosening, replace the nut or chain if pitting, galling, distortion or compromised attachment is found. Frequency depends on service conditions (e.g. more often in corrosive or high-use environments).

Can the SMS blanking nut, stainless steel, type SNZ be used in high-temperature processing environments?

The SMS blanking nut, stainless steel, type SNZ is made from AISI 304 stainless steel. AISI 304 offers good corrosion resistance and maintains mechanical strength up to moderately elevated temperatures (typical continuous use up to about 350â400Â°C). However, its high-temperature performance is limited compared with heat-resistant stainless grades (e.g., AISI 310 or 316 for some chloride environments). Practical implications for high-temperature processing environments: - Short-term exposure: The SMS blanking nut, stainless steel, type SNZ can tolerate brief exposures to temperatures within the 300â400Â°C range without immediate loss of integrity. - Continuous high temperatures: For sustained operation above ~300â350Â°C, AISI 304 may experience scaling, reduced creep resistance, and possible sensitization (grain boundary carbide precipitation) that can lower corrosion resistance, especially in environments containing chlorides or steam. - Thermal cycles: Repeated heating and cooling can accelerate material degradation and loosening of joints; chain and any nonmetal elements (if present) should also be evaluated for temperature limits. - Process-specific factors: Corrosive media, steam, chemical exposure, and mechanical loads at temperature all affect suitability. If the process involves aggressive chemicals, prolonged high temperatures, or pressures, a more heat-resistant alloy or a component specified for those conditions is recommended. Conclusion: The SMS blanking nut, stainless steel, type SNZ may be acceptable for moderate high-temperature use (up to ~300â350Â°C) for short or intermittent exposure, but it is not ideal for continuous service at higher temperatures or in aggressive high-temperature environments. For critical or prolonged high-temperature applications, select a nut made from a more heat-resistant stainless grade or consult your materials engineer/supplier for confirmation.

A nut blanking SMS, steel stainless, type SNZ

All products, Hygienic stainless steel couplings/

Additional information

Standard length [m]	6

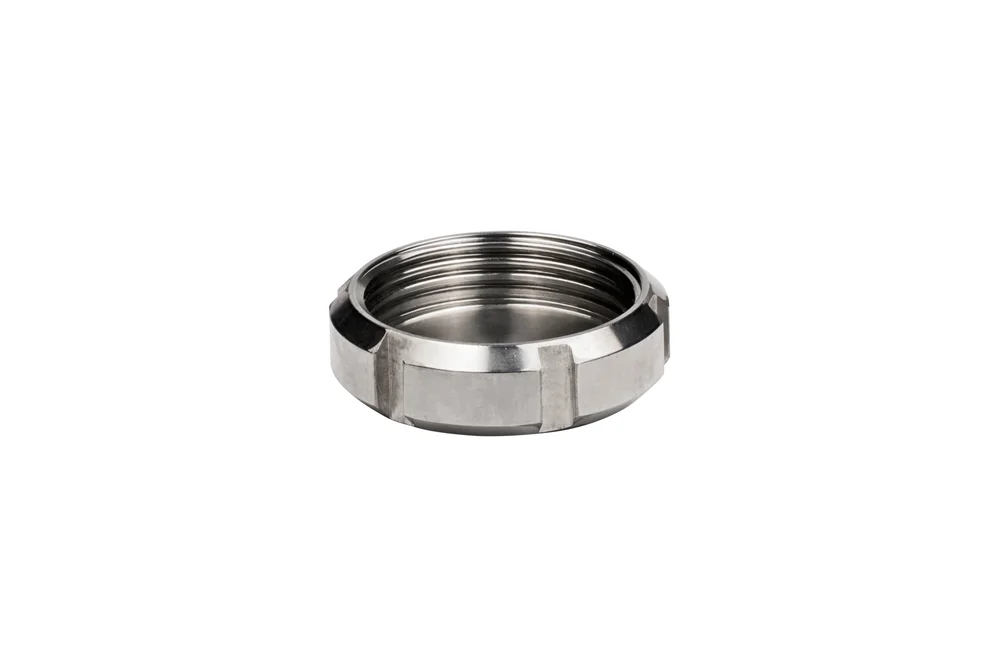

A nut blanking with a chain for ends SMS, type SNZ. Material: steel AISI 304.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-SNZ-025	Nut blanking SMS DN25, Rd 40x1/6"	-	-	In stock	Enquiry
NH-SNZ-038	Nut blanking SMS DN38, Rd 60x1/6"	-	-	In stock	Enquiry
NH-SNZ-050	Nut blanking SMS DN50, Rd 70x1/6"	-	-	In stock	Enquiry
NH-SNZ-063	Nut blanking SMS DN63, Rd 85x1/6"	-	-	In stock	Enquiry
NH-SNZ-075	Nut blanking SMS DN75, Rd 98x1/6"	-	-	In stock	Enquiry
