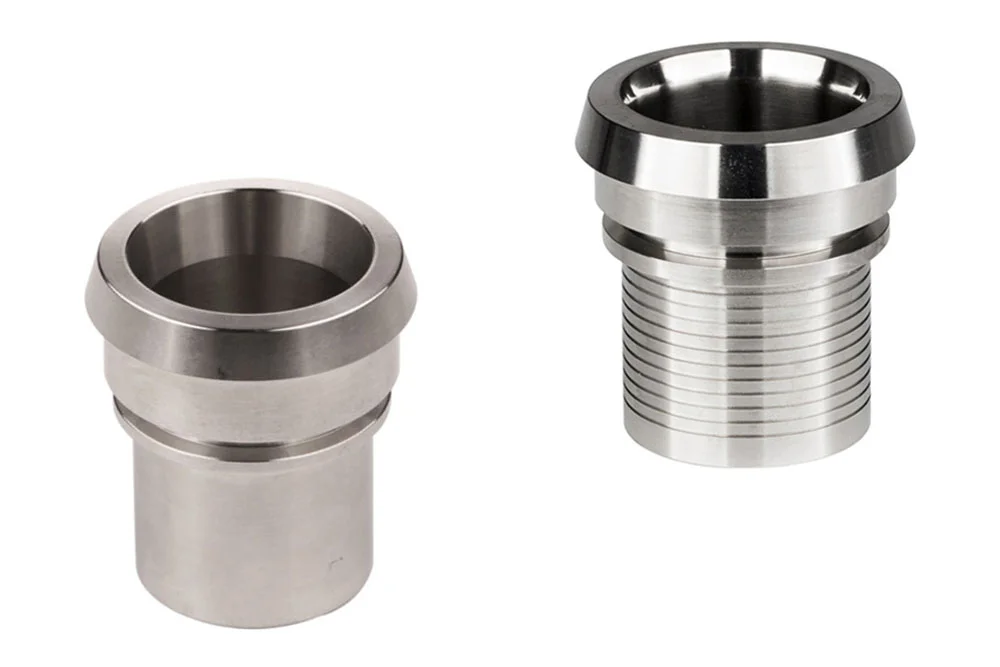

DIN 11851 lug under nut, with tail for RS clamp, stainless steel, type DWR
DIN 11851 end for nut, with tail for RS clamp, is a component of the so-called “milk connection,” most commonly used in the food industry as a threaded connection. It is also utilized in the chemical and cosmetic industries, with many devices and instruments equipped with this connection. The roughness Ra of the hole in the standard version is 0.8 µm (in the economical version, the roughness value is higher than in the standard version). The maximum allowable working pressure (for the connection itself according to DIN 11851): 40 bar (DN10÷DN40), 25 bar (DN50÷DN100). Operating temperature: depending on the type of material used for the gasket. Material: stainless steel AISI 316.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
DIN 11851 end for nut, with tail for RS clamp, is a component of the so-called “milk connection,” most commonly used in the food industry as a threaded connection. It is also utilized in the chemical and cosmetic industries, with many devices and instruments equipped with this connection. The roughness Ra of the hole in the standard version is 0.8 µm (in the economical version, the roughness value is higher than in the standard version). The maximum allowable working pressure (for the connection itself according to DIN 11851): 40 bar (DN10÷DN40), 25 bar (DN50÷DN100). Operating temperature: depending on the type of material used for the gasket. Material: stainless steel AISI 316.
Additional information
| Material | SS – stainless steel |
|---|---|
| Standard length [m] | 25, 60 / 120 |
