Can the Branch module, PA 100 - 200 - 300 SKILLAIRÂ® series, with end plates handle supply pressures up to 15 bar and operate at temperatures up to +50Â°C?

Yes. The Branch module, PA 100 - 200 - 300 SKILLAIRÂ® series, with end plates can handle supply pressures up to 15 bar and operate at temperatures up to +50Â°C. Note: for sizes 200 and 300 the maximum indicated supply pressure is 13 bar.

Does the Branch module, PA 100 - 200 - 300 SKILLAIRÂ® series, with end plates support BSP thread connections from 1/4" to 1"?

Yes. The Branch module, PA 100 - 200 - 300 SKILLAIRÂ® series, with end plates supports BSP thread connections from 1/4" to 1".

Is the Branch module, PA 100 - 200 - 300 SKILLAIRÂ® series, with end plates suitable for air intake from FRL stations at any preparation stage?

Yes. The Branch module, PA 100 - 200 - 300 SKILLAIRÂ® series, with end plates is suitable for air intake from FRL stations at any stage of preparation, regardless of installation location. It is available in sizes 100, 200 and 300, supports supply pressures up to 15 bar (for sizes 200 and 300 up to 13 bar), operates up to +50Â°C, and uses BSP thread connections from 1/4" to 1".

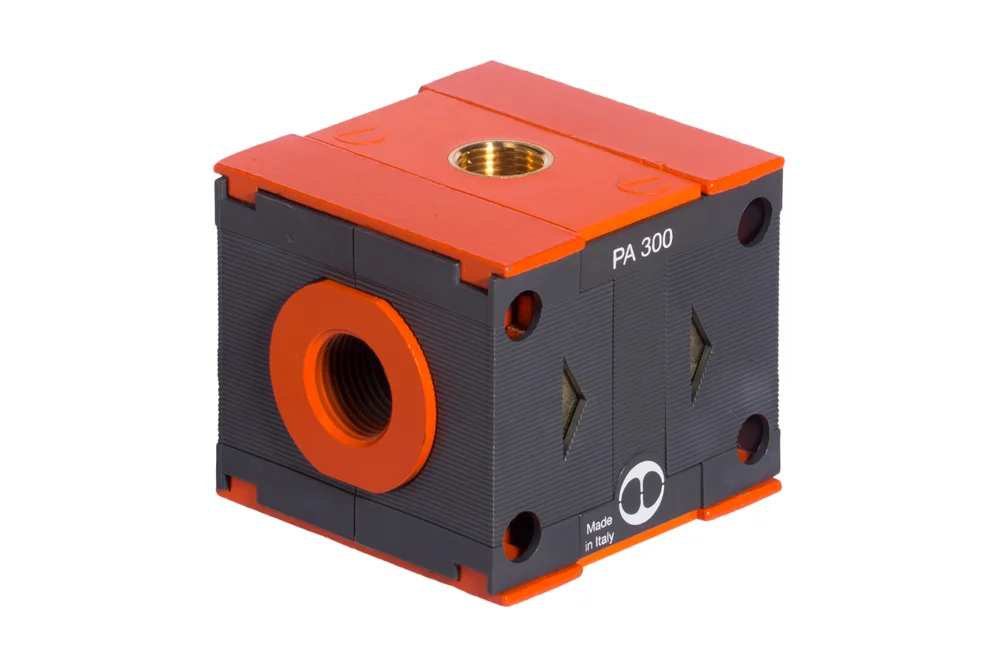

Branch module, PA 100 – 200 – 300 SKILLAIR® series, with end plates

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

PA branching module, SKILLAIR® series, with end plates, is used for air intake from the FRL station at any stage of its preparation, regardless of the installation location. Size: 100, 200, 300. Supply pressure: up to 15 bar (13 bar – size 200, 300). Operating temperature: up to +50°C. Connection: BSP thread 1/4″ ÷ 1″.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-9200402	PA 100 1/4 branching module (SKILLAIR)	-	-	In stock	Enquiry
MW-9300401	Branching module PA 100 3/8 (SKILLAIR)	-	-	In stock	Enquiry
MW-9300402	PA 200 1/4 branching module (SKILLAIR)	-	-	In stock	Enquiry
MW-9300403	Branching module PA 200 3/8 (SKILLAIR)	-	-	In stock	Enquiry
MW-9300404	PA 200 1/2 branching module (SKILLAIR)	-	-	In stock	Enquiry
MW-9400402	PA 300 1/2 branching module (SKILLAIR)	-	-	In stock	Enquiry
MW-9500401	PA 300 3/4 branching module (SKILLAIR)	-	-	In stock	Enquiry
MW-9500402	PA 300 1 branching module (SKILLAIR)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

PA branching module, SKILLAIR® series, with end plates, is used for air intake from the FRL station at any stage of its preparation, regardless of the installation location. Size: 100, 200, 300. Supply pressure: up to 15 bar (13 bar – size 200, 300). Operating temperature: up to +50°C. Connection: BSP thread 1/4″ ÷ 1″.
