Is the T-piece with BSP female thread, cast iron, type 130/25 suitable for temperatures up to 300Â°C and pressures of 20â25 bar?

Yes. The T-piece with BSP female thread, cast iron, type 130/25 is suitable for use up to 300Â°C and at pressures of 20â25 bar, provided you observe the temperature-dependent pressure rating: it is rated for 25 bar up to +120Â°C and for 20 bar up to +300Â°C. Ensure system conditions do not exceed the stated combinations of temperature and pressure, and follow applicable installation, safety and material-compatibility requirements.

Can the T-piece with BSP female thread, cast iron, type 130/25 be used for steam lines at 250â300Â°C under 20 bar?

Yes. The T-piece with BSP female thread, cast iron, type 130/25 is specified for use up to +300Â°C with a working pressure rating of 20 bar at temperatures up to +300Â°C. Therefore it is suitable for steam lines operating at 250â300Â°C under 20 bar, provided installation follows manufacturer guidelines and applicable codes (e.g., proper jointing, thermal expansion allowances, and inspection/maintenance). If your service includes aggressive chemistry, cyclic loading, or safety-critical conditions, verify compatibility and certification with the supplier or an engineer before use.

Does the T-piece with BSP female thread, cast iron, type 130/25 meet pressure ratings of 25 bar (â¤120Â°C) and 20 bar (â¤300Â°C)?

Yes. The T-piece with BSP female thread, cast iron, type 130/25 meets the stated pressure ratings: 25 bar at temperatures up to 120Â°C, and 20 bar at temperatures up to 300Â°C.

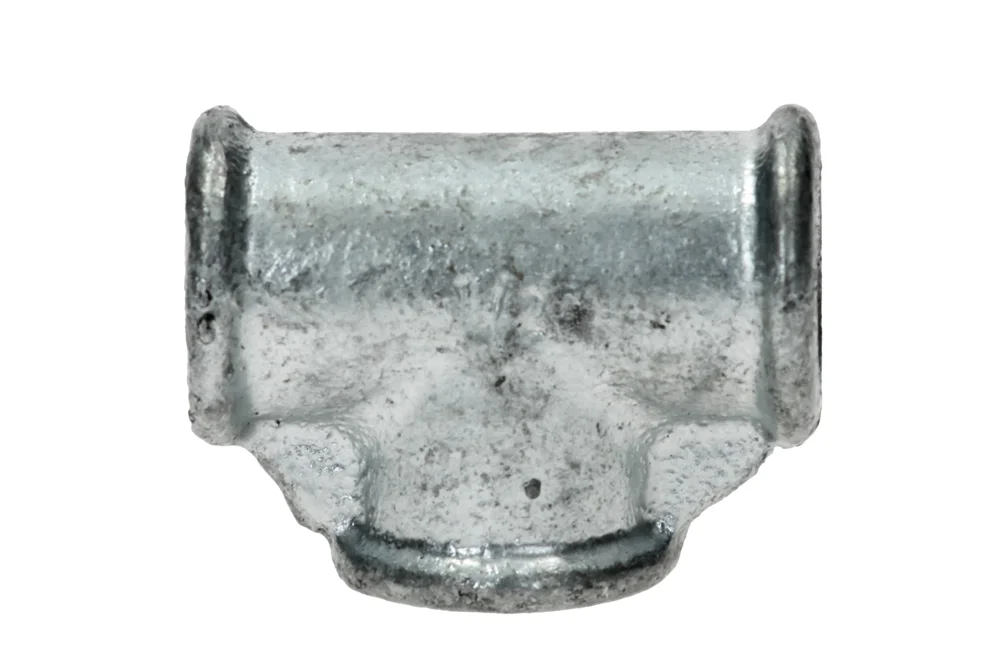

A tee with a thread internal BSP, cast iron, type 130/25

Additional information

Material	CS – steel (cast iron)

A tee with a thread internal BSP intended for use in pipe connections of industrial installations. Material: malleable cast iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-13025-04	Tee with 1/4" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-06	Tee with 3/8" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-08	Tee with 1/2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-12	Tee with 3/4" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-16	Tee with 1" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-20	Tee with 1.1/4" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-24	Tee with 1.1/2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-32	Tee with 2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-40	Tee with 2.1/2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-48	Tee with 3" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-13025-64	Tee with 4" BSP female, cast iron galvanized.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

A tee with a thread internal BSP intended for use in pipe connections of industrial installations. Material: malleable cast iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).
