Can the Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH) be installed without machining and fit D1 outer diameters specified for rubber hydraulic hoses?

Yes. The Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH) is designed for rubber hydraulic hoses and requires no machining for installation. It is a clamping sleeve specifically for types 1SN, 2SN or 2SC, intended for use with hydraulic fittings (PH), and its listed D1 [mm] corresponds to the hose outer diameter. Made of AISI 316 stainless steel, it fits the specified D1 outer diameters for rubber hydraulic hoses without additional machining.

Is the Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH) compatible with D1 outer diameters of rubber hydraulic hoses without machining?

Yes. The Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH) is designed for rubber hydraulic hoses type 1SN, 2SN or 2SC and specifies "Installation - no machining required." It is matched to hose outer diameter D1 [mm], so if your hose D1 corresponds to the collet's specified D1 size, it is compatible without machining. Ensure you select the collet size that exactly matches the hose outer diameter and follow manufacturer's installation instructions.

Does the Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH) require any machining for installation on specified D1 outer diameters?

No machining is required. The Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH) is designed for direct installation on the specified D1 outer diameters and fits hydraulic fittings (PH) without additional machining.

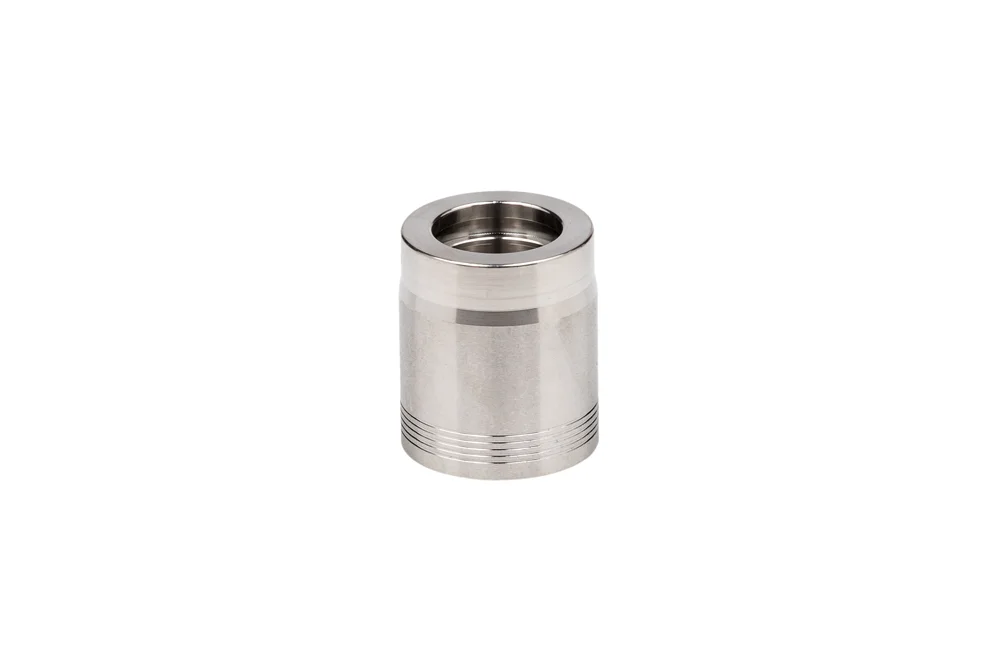

Collet for hydraulic hoses 1SN, 2SN, 2SC, AISI 316 steel, type Z2TX (PH)

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

Z2TX (PH) clamping sleeve for rubber hydraulic hoses type 1SN, 2SN, or 2SC. Installation – no machining required. Use for hydraulic fittings (PH). Diameter D1 [mm] – outer diameter. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-Z2TX-04-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 1/4", AISI 316	6	-	In stock	Enquiry
TI-Z2TX-05-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 5/16", AISI 316	8	-	In stock	Enquiry
TI-Z2TX-06-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 3/8", AISI 316	10	-	In stock	Enquiry
TI-Z2TX-08-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 1/2", AISI 316	12	-	In stock	Enquiry
TI-Z2TX-10-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 5/8", AISI 316	16	-	In stock	Enquiry
TI-Z2TX-12-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 3/4", AISI 316	20	-	In stock	Enquiry
TI-Z2TX-16-SS-PH	Sleeve for hose 1SN, 2SN, 2SC 1", AISI 316	25	-	In stock	Enquiry
TI-Z2TX-20-SS-PH	Sleeve for hose 2SN, 2SC 1.1/4", AISI 316	32	-	In stock	Enquiry
TI-Z2TX-24-SS-PH	Sleeve for hose 2SN, 2SC 1.1/2", AISI 316	38	-	In stock	Enquiry
TI-Z2TX-32-SS-PH	Sleeve for hose 2SN, 2SC 2", AISI 316	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Z2TX (PH) clamping sleeve for rubber hydraulic hoses type 1SN, 2SN, or 2SC. Installation – no machining required. Use for hydraulic fittings (PH). Diameter D1 [mm] – outer diameter. Material: AISI 316 steel.
