Is the Insert DIN 3015 heavy, aluminum, type 201 suitable for continuous operation at temperatures up to +350Â°C?

Yes. The Insert DIN 3015 heavy, aluminum, type 201 is specified for operating temperatures up to +350Â°C, so it is suitable for continuous use at that temperature according to the provided description. Ensure compatibility with the specific application (thermal cycling, chemical exposure, and mechanical loads) and confirm with the manufacturer if extended durations, elevated stress, or nearby hotter components could affect long-term performance.

Can the Insert DIN 3015 heavy, aluminum, type 201 withstand short-term temperature spikes above +350Â°C?

Inset DIN 3015 heavy, aluminum, type 201 Format is specified with an operating temperature up to +350Â°C. Short-term spikes above that limit are not covered by the stated specification, so their compatibility cannot be guaranteed. Aluminum loses strength and may oxidize or soften at temperatures above its rated limit, which can compromise mechanical integrity and clamp performance under load. If brief excursions slightly above +350Â°C are unavoidable, perform application-specific testing or consult the manufacturer for verified transient-temperature tolerances and any protective measures (coatings, insulation, reduced load). Without such validation, do not assume safe operation above +350Â°C.

Can Inset DIN 3015 heavy, aluminum, type 201 safely resist corrosion or oxidation at sustained 350Â°C?

Inset DIN 3015 heavy, aluminum, type 201 Format: aluminum inserts at sustained 350Â°C will face significant oxidation and corrosion risk. Pure aluminum and common aluminum alloys form a protective oxide layer (aluminium oxide, Al2O3) at elevated temperatures, which can slow further oxidation; however, continuous exposure at 350Â°C accelerates growth of the oxide scale, can cause embrittlement, scale spallation, and progressive material loss depending on alloy composition and environment. Key points: - Temperature: 350Â°C is within the stated operating temperature "up to +350Â°C", but "up to" typically denotes short- or intermittent exposures acceptable by designâlong-term continuous service at the upper limit increases degradation risk. - Oxidation: Aluminum oxidizes more rapidly with time at 350Â°C than at ambient; the oxide layer can protect somewhat, but repeated thermal cycling, mechanical stress (clamping), or abrasive media can damage the layer and expose fresh metal. - Corrosion environment: Presence of moisture, salts, acidic or alkaline vapors, or industrial pollutants significantly worsens corrosion. In dry, inert atmospheres (e.g., dry air with low contaminants) performance is better than in humid or chemically aggressive environments. - Mechanical integrity: At elevated temperature aluminum alloys may lose some strength and hardness; combined with oxidation and possible galvanic coupling to dissimilar metals, long-term reliability may be compromised. - Mitigation: Protective coatings, surface treatments (anodizing, high-temperature coatings), selecting high-temperature aluminum alloys, regular inspection, or using alternative materials (stainless steel inserts) improve long-term resistance. Conclusion: While Inset DIN 3015 heavy, aluminum, type 201 Format can operate at or below 350Â°C per the specification, it will not reliably "safely resist" oxidation/corrosion for sustained continuous service at that temperature in all environments without additional protection or specific alloy/coating measures. For long-term high-temperature or corrosive conditions, consider protective treatments or alternative materials such as stainless steel.

Inset DIN 3015 heavy, aluminum, type 201

All products, Clamps for hydraulic pipes/

Additional information

Material	AL – aluminum
Standard length [m]	30

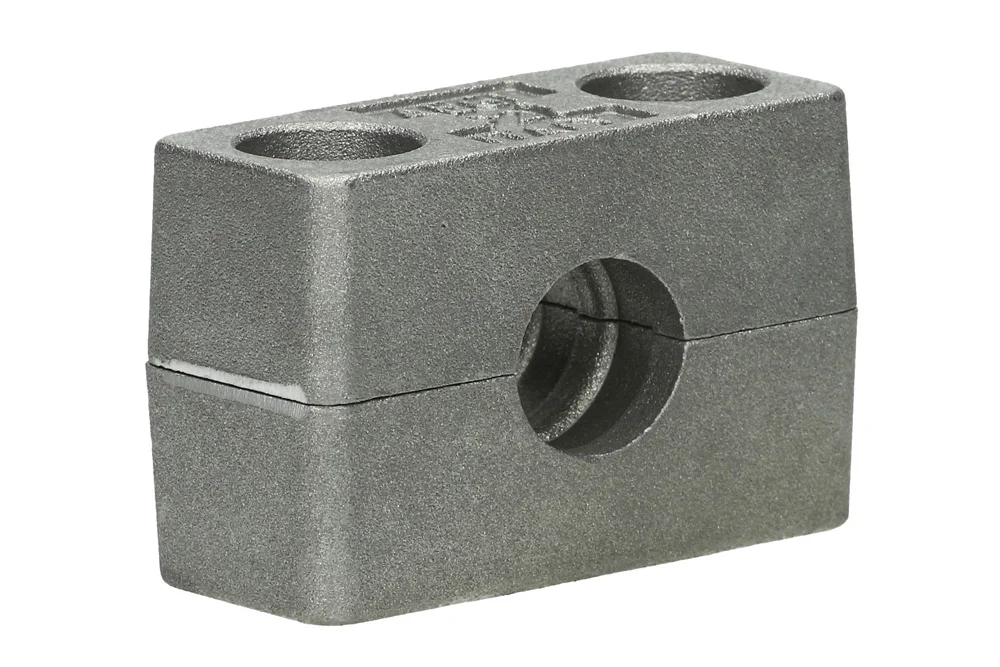

Two-part insert of clamp DIN 3015 type 201 made according to standard DIN 3015. Standardly features a profiled (grooved) surface for the pipe opening. Insert material: aluminum. Operating temperature: up to +350°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-AL201-106,4X	DIN3015 heavy AL clamp for 6.4 mm pipe	-	-	In stock	Enquiry
TC-AL201-106X	DIN3015 heavy AL insert for 6 mm pipe	-	-	In stock	Enquiry
TC-AL201-108X	DIN3015 heavy AL insert for 8 mm pipe	-	-	In stock	Enquiry
TC-AL201-110X	DIN3015 heavy AL insert for 10 mm pipe	-	-	In stock	Enquiry
TC-AL201-112,7X	DIN3015 heavy AL clamp for 12.7 mm pipe	-	-	In stock	Enquiry
TC-AL201-112X	DIN3015 heavy AL insert for 12 mm pipe	-	-	In stock	Enquiry
TC-AL201-114X	DIN3015 heavy AL insert for 14 mm pipe	-	-	In stock	Enquiry
TC-AL201-115X	DIN3015 heavy AL insert for 15 mm pipe	-	-	In stock	Enquiry
TC-AL201-116X	DIN3015 heavy AL insert for 16 mm pipe	-	-	In stock	Enquiry
TC-AL201-117,2X	DIN3015 heavy AL insert for 17.2 mm pipe	-	-	In stock	Enquiry
TC-AL201-118X	DIN3015 heavy AL insert for 18 mm pipe	-	-	In stock	Enquiry
TC-AL201-219X	DIN3015 heavy AL insert for 19 mm pipe	-	-	In stock	Enquiry
TC-AL201-220X	DIN3015 heavy AL insert for 20 mm pipe	-	-	In stock	Enquiry
TC-AL201-221,3X	DIN3015 heavy AL insert for 21.3 mm pipe	-	-	In stock	Enquiry
TC-AL201-222X	DIN3015 heavy AL insert for 22 mm pipe	-	-	In stock	Enquiry
TC-AL201-225X	DIN3015 heavy AL insert for 25 mm pipe	-	-	In stock	Enquiry
TC-AL201-226,9X	DIN3015 heavy AL insert for 26.9 mm pipe	-	-	In stock	Enquiry
TC-AL201-228X	DIN3015 heavy AL insert for 28 mm pipe	-	-	In stock	Enquiry
TC-AL201-230X	DIN3015 heavy-duty AL insert for 30 mm pipe	-	-	In stock	Enquiry
TC-AL201-330X	DIN3015 heavy AL insert for 30 mm pipe	-	-	In stock	Enquiry
TC-AL201-332X	DIN3015 heavy AL insert for 32 mm pipe	-	-	In stock	Enquiry
TC-AL201-333,7X	DIN3015 heavy AL insert for 33.7 mm pipe	-	-	In stock	Enquiry
TC-AL201-335X	DIN3015 heavy AL insert for 35 mm pipe	-	-	In stock	Enquiry
TC-AL201-338X	DIN3015 heavy AL insert for 38 mm pipe	-	-	In stock	Enquiry
TC-AL201-340X	DIN3015 heavy AL insert for 40 mm pipe	-	-	In stock	Enquiry
TC-AL201-342,4X	DIN3015 heavy AL insert for 42.4 mm pipe	-	-	In stock	Enquiry
TC-AL201-342X	DIN3015 heavy AL insert for 42 mm pipe	-	-	In stock	Enquiry
TC-AL201-438X	DIN3015 heavy AL insert for 38 mm pipe	-	-	In stock	Enquiry
TC-AL201-442,4X	DIN3015 heavy AL insert for 42.4 mm pipe	-	-	In stock	Enquiry
TC-AL201-444,5X	DIN3015 heavy AL insert for 44.5 mm pipe	-	-	In stock	Enquiry
TC-AL201-448,3X	DIN3015 heavy AL insert for 48.3 mm pipe	-	-	In stock	Enquiry
TC-AL201-450X	DIN3015 heavy AL insert for 50 mm pipe	-	-	In stock	Enquiry
TC-AL201-455X	DIN3015 heavy AL insert for 55 mm pipe	-	-	In stock	Enquiry
TC-AL201-457X	DIN3015 heavy AL insert for 57 mm pipe	-	-	In stock	Enquiry
TC-AL201-460,3X	DIN3015 heavy AL insert for 60.3 mm pipe	-	-	In stock	Enquiry
TC-AL201-463,5X	DIN3015 heavy AL insert for 63.5 mm pipe	-	-	In stock	Enquiry
TC-AL201-465X	DIN3015 heavy AL insert for 65 mm pipe	-	-	In stock	Enquiry
TC-AL201-470X	DIN3015 heavy AL insert for 70 mm pipe	-	-	In stock	Enquiry
TC-AL201-565X	DIN3015 heavy AL insert for 65 mm pipe	-	-	In stock	Enquiry
TC-AL201-570X	DIN3015 heavy AL insert for 70 mm pipe	-	-	In stock	Enquiry
TC-AL201-575X	DIN3015 heavy AL insert for 75 mm pipe	-	-	In stock	Enquiry
TC-AL201-576,1X	DIN3015 heavy AL insert for 76.1 mm pipe	-	-	In stock	Enquiry
TC-AL201-580X	DIN3015 heavy AL insert for 80 mm pipe	-	-	In stock	Enquiry
TC-AL201-582,5X	DIN3015 heavy AL insert for 82.5 mm pipe	-	-	In stock	Enquiry
TC-AL201-588,9X	DIN3015 heavy AL insert for 88.9 mm pipe	-	-	In stock	Enquiry
TC-AL201-6114,3X	DIN3015 heavy AL insert for pipe 114.3 mm	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Two-part insert of clamp DIN 3015 type 201 made according to standard DIN 3015. Standardly features a profiled (grooved) surface for the pipe opening. Insert material: aluminum. Operating temperature: up to +350°C.
