Is Coupling gasket DIN 32676, silicone (VMQ) suitable for continuous use between -20Â°C and +100Â°C in food-grade applications?

Yes . Coupling gasket DIN 32676, silicone (VMQ) with the stated operating temperature range of -20Â°C to +100Â°C is suitable for continuous use within that temperature window in food-grade applications, provided the gasket meets applicable food-contact certifications (e.g. FDA 21 CFR, EU 1935/2004) and is free from additives that are not food-safe. Silicone (VMQ) offers excellent thermal stability, flexibility, and resistance to aging and many cleaning procedures common in food processing, making it a common choice for seals in hygienic tri-clamp (DIN 32676) connections. Caveats: verify the specific productâs food-grade certification and suitability for the particular food, CIP/SIP chemicals, pressures, and mechanical stresses in your process. If exposure may exceed +100Â°C, fall below -20Â°C, involve aggressive solvents, or require high mechanical abrasion resistance, consider alternative elastomers or reinforced seal designs.

Can Coupling gasket DIN 32676, silicone withstand steam cleaning or CIP cycles at temperatures up to 100Â°C?

Yes. Coupling gasket DIN 32676, silicone (VMQ) with an operating temperature range of -20Â°C to +100Â°C is suitable for steam cleaning and CIP cycles up to 100Â°C. Silicone VMQ resists high temperatures, retains flexibility, and is commonly used in hygienic fittings for food, beverage, and pharmaceutical applications. Ensure chemical compatibility with cleaning agents used (alkaline or acidic detergents) and confirm gasket age/condition-repeated aggressive chemicals or prolonged exposure can degrade elastomers over time. For critical applications, verify with supplier certificates or perform compatibility testing.

Does Coupling gasket DIN 32676, silicone (VMQ) meet FDA and/or EU food contact regulations for use in food processing?

Coupling gasket DIN 32676, silicone (VMQ). based on the provided description (DIN 32676 connection, operating temperature -20Â°C to +100Â°C, material VMQ â silicone). cannot be definitively certified as meeting FDA and/or EU food contact regulations without additional specific documentation from the manufacturer. General points: - Silicone (VMQ) is commonly used in food contact applications and can be formulated to meet FDA 21 CFR 177.2600 and EU Regulation (EC) No 1935/2004 and/or Commission Regulation (EU) No 10/2011, but compliance depends on the exact formulation, additives and manufacture controls. - To confirm FDA compliance you need a manufacturer statement or declaration that the specific Coupling gasket DIN 32676, silicone formulation meets FDA food-contact requirements (e.g., 21 CFR reference or an FDA letter of compliance). - To confirm EU compliance you need a declaration of conformity referencing relevant EU rules (e.g., Regulation (EC) No 1935/2004, applicable specific measures, and any relevant migration test results per EU 10/2011 or national rules). - Additionally verify suitability for intended use: contact type (aqueous, fatty, acidic), temperature range (â20Â°C to +100Â°C is typical for VMQ but check for repeated sterilization, steam, CIP, SIP), pressure, and cleaning/sterilization regimes. - Ask the supplier for: Declaration of Conformity (DoC), specific migration test reports, statements on additives/plasticizers, and traceability/quality certifications (e.g., NSF, EC conformity). Only with those documents can you confirm that Coupling gasket DIN 32676, silicone meets FDA and/or EU food contact regulations.

Gasket coupling DIN 32676, silicone

All products, Hygienic stainless steel couplings/

Additional information

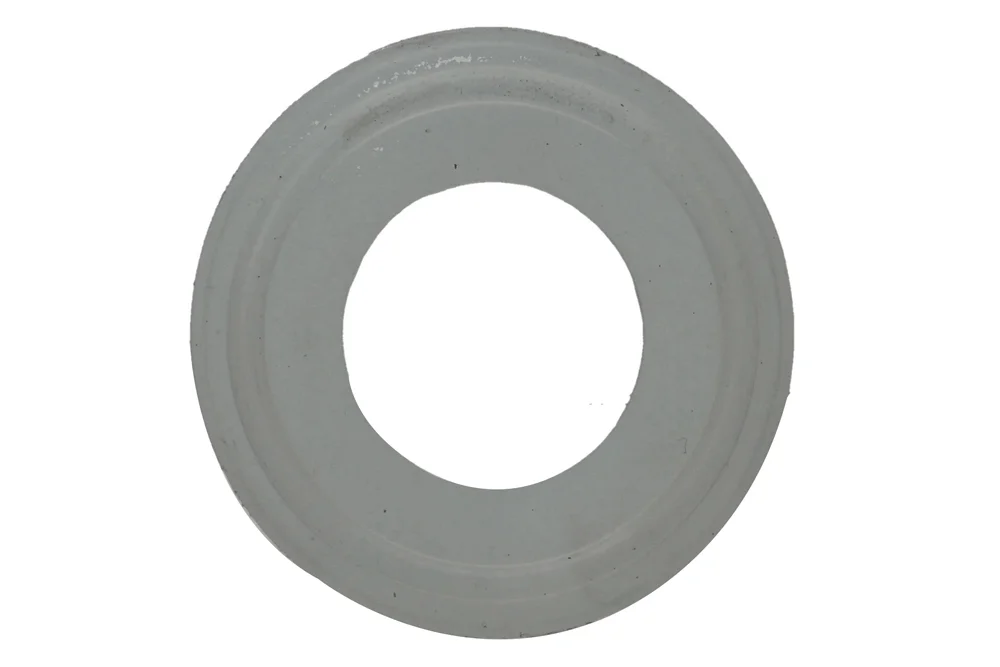

A TRICLOVER gasket for a DIN 32676.Operating temperature: from -20°C to +100°C. Material: VMQ – silicone.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-TUS-025-010	Gasket TRICLOVER DN10 for a flange 25 mm, silicone	-	-	In stock	Enquiry
NH-TUS-025-012	Gasket TRICLOVER DN12 for a flange 25 mm, silicone	-	-	In stock	Enquiry
NH-TUS-034-010	Gasket TRICLOVER DN10 for a flange 34 mm, silicone	-	-	In stock	Enquiry
NH-TUS-034-015	Gasket TRICLOVER DN15 for a flange 34 mm, silicone	-	-	In stock	Enquiry
NH-TUS-034-020	Gasket TRICLOVER DN20 for a flange 34 mm, silicone	-	-	In stock	Enquiry
NH-TUS-050-025	Gasket TRICLOVER DN25 for a flange 50.5 mm, silicone	-	-	In stock	Enquiry
NH-TUS-050-032	Gasket TRICLOVER DN32 for a flange 50.5 mm, silicone	-	-	In stock	Enquiry
NH-TUS-050-038	Gasket TRICLOVER DN38 for a flange 50.5 mm, silicone	-	-	In stock	Enquiry
NH-TUS-064-050	Gasket TRICLOVER DN50 for a flange 64 mm, silicone	-	-	In stock	Enquiry
NH-TUS-091-065	Gasket TRICLOVER DN65 for a flange 91 mm, silicone	-	-	In stock	Enquiry
NH-TUS-119-100	Gasket TRICLOVER DN100 for a flange 119 mm, silicone	-	-	In stock	Enquiry
