Is the Plug DN 9 quick connector with male thread, TST 9 series, brass suitable for steam up to 200Â°C and 15 bar?

Yes. Plug DN 9 quick connector with male thread, TST 9 series, brass is suitable for steam up to 200Â°C and 15 bar. The product specification explicitly lists steam as an application and states an operating temperature range up to +200Â°C (with Viton seals) and a working pressure of 15 bar. Materials (brass body/valve and stainless steel spring) are compatible with these conditions, assuming the connector uses Viton seals and installation follows manufacturer guidelines. If you expect higher temperatures, pressures above 15 bar, or aggressive steam conditions (wet/condensing with additives), confirm seal type and service conditions with the supplier.

Can Plug DN 9 quick connector with male thread, TST 9 series, brass be safely used with hot oil at 180Â°C and 15 bar?

Yes - Plug DN 9 quick connector with male thread, TST 9 series, brass can be used with hot oil at 180Â°C and 15 bar only with caution. The product data lists working pressure 15 bar and an operating temperature range up to +200Â°C when fitted with Viton seals, and materials (brass body/valve, stainless spring) compatible with many oils. At 180Â°C you are within the stated limits, but ensure the actual seals are Viton (or other highâtemperature rated), confirm the specific oilâs chemical compatibility with brass and Viton, and verify dynamic conditions (thermal cycling, vibration, leakage risk). For absolute safety and longevity, consult the manufacturer for application-specific approval and consider pressure/temperature margins.

Can Plug DN 9 quick connector with male thread, TST 9 series, brass be used for water cooling in injection molding machines at 15 bar?

Yes. Plug DN 9 quick connector with male thread, TST 9 series, brass can be used for water cooling in injection molding machines at 15 bar. Why: - The product specification lists working pressure: 15 bar. matches your required system pressure. - It is explicitly described as widely used for cooling injection molds and casting parts, and âcan be used for waterâ. confirming suitability for water-cooling applications. - Materials (brass body and valve, stainless steel spring) are appropriate for typical cooling water; Viton sealing (operating temp up to +200Â°C) covers elevated temperatures that may occur. - Flow diameter 9 mm provides a reasonable flow path for cooling circuits (verify flow rates for your specific design). Recommendations/considerations: - Confirm thread type (BSP/BSPT/NPT/metric) matches your hose/port connections or use correct adapter. - Verify water quality (hardness, additives) and compatibility with brass and Viton to avoid corrosion or degradation over time. - Ensure system components (hoses, fittings, valves) and safety factors are rated for 15 bar and any thermal/pressure transients in your installation. - For steam or hot-oil use, check seals and temperature limits; for pure water cooling at â¤15 bar and within stated temp range, the connector is suitable.

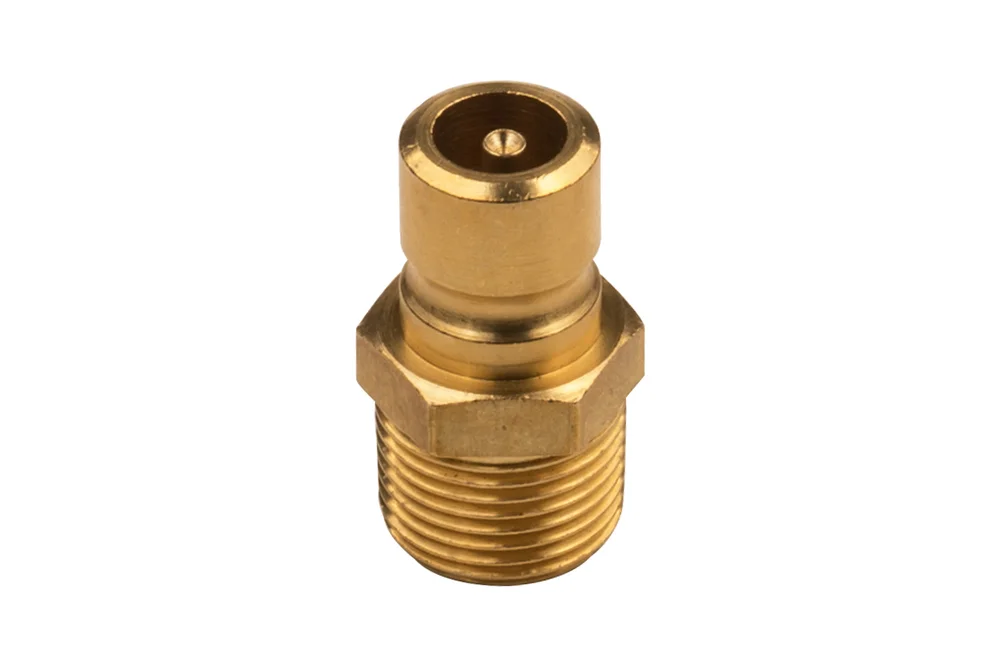

Plug DN 9 quick connector with male thread, TST 9 series, brass

Additional information

Material	B – brass (bronze)

DN 9 quick coupling plug with external thread BSP, BSPT, NPT, and metric, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. Can be used for water in cleaning machines, hot oil, steam. Flow diameter: 9 mm. Working pressure: 15 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (plug body, valve), stainless steel (spring).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-9-EU13	DN 9 plug with 1/4" BSP female thread, without valve	-	15	In stock	Enquiry
FW-9-EU17	DN 9 plug with GZ 3/8" BSP, without valve	-	15	In stock	Enquiry
FW-9-EUM10	Plug DN 9 with GZ M10x1, without valve	-	15	In stock	Enquiry
FW-9-EUM14	Plug DN 9 with GZ M14x1.5, without valve	-	15	In stock	Enquiry
FW-9-RU10	DN 9 plug with GZ 1/8" BSPT, without valve	-	15	In stock	Enquiry
FW-9-RU13	DN 9 plug with 1/4" BSPT female thread, without valve	-	15	In stock	Enquiry
FW-9-RU17	DN 9 plug with GZ 3/8" BSPT, without valve	-	15	In stock	Enquiry
FW-9-RU21	DN 9 plug with GZ 1/2" BSPT, without valve	-	15	In stock	Enquiry
FW-9-RUB13	DN 9 plug with 1/4" BSPT female thread, with valve	-	15	In stock	Enquiry
FW-9-RUB17	DN 9 plug with GZ 3/8" BSPT, with valve	-	15	In stock	Enquiry
FW-9-RUB21	DN 9 plug with GZ 1/2" BSPT, with valve	-	15	In stock	Enquiry
FW-9-TU10	DN 9 plug with 1/8" NPT female thread, without valve	-	15	In stock	Enquiry
FW-9-TU13	DN 9 plug with 1/4" NPT female thread, without valve	-	15	In stock	Enquiry
FW-9-TU17	DN 9 plug with GZ 3/8" NPT, without valve	-	15	In stock	Enquiry
FW-9-TU21	DN 9 plug with 1/2" NPT female thread, without valve	-	15	In stock	Enquiry
FW-9-TUB13	DN 9 plug with 1/4" NPT female thread, with valve	-	15	In stock	Enquiry
FW-9-TUB17	DN 9 plug with 3/8" NPT female thread, with valve	-	15	In stock	Enquiry
FW-9-TUB21	DN 9 plug with 1/2" NPT female thread, with valve	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DN 9 quick coupling plug with external thread BSP, BSPT, NPT, and metric, with or without valve, widely used in the industry for cooling injection molds and casting parts made of plastics, aluminum, brass, and zinc alloys. Can be used for water in cleaning machines, hot oil, steam. Flow diameter: 9 mm. Working pressure: 15 bar. Operating temperature: from -20°C to +200°C (viton). Material: brass (plug body, valve), stainless steel (spring).
