Can the Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel withstand continuous use at 280 bar and 150Â°C?

Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel - according to the provided specification, it is rated for continuous working pressure up to 280 bar and operating temperature up to +150Â°C. Therefore, when used within those limits (â¤280 bar and â¤150Â°C), it is designed to withstand continuous operation. Ensure correct installation, compatible fittings, and that actual fluid temperature and pressure do not exceed the stated ratings; exposure above these limits or aggressive fluids may reduce safety and service life. Regular inspection for wear, corrosion and leaks is recommended.

Does the Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel require special seals for operation at 280 bar?

Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel does not explicitly state requirement for special seals in the provided description. However, given the specificationsâworking pressure up to 280 bar and operating temperature up to +150Â°Câyou should consider seal compatibility: - Standard metal-to-metal threaded connection (GZ M22x1.5) typically uses a sealing method (thread sealant, PTFE tape or an O-ring). At 280 bar and high temperature, plain PTFE tape may be insufficient long-term. - If the lance uses an O-ring or gasket at the inlet/outlet, it must be made of a material rated for both 280 bar pressure and up to 150Â°C (e.g., high-performance elastomers like FKM/Viton, HNBR, or perfluoroelastomers depending on media compatibility). Stainless-steel fittings alone do not seal without an appropriate seal element where required. - For the GW 1/4" NPT outlet, NPT is a tapered pipe thread that usually relies on tape or paste for sealing; at very high pressures a properly rated sealant or a mechanical seal/adapter rated to 280 bar is recommended. - If the system handles aggressive fluids or steam, choose seals rated for chemical and temperature exposure. Recommendation: confirm with the manufacturer whether the supplied connection includes seals and which material they are. If not specified, use seals and sealing compounds rated for â¥280 bar and â¥150Â°C and compatible with the fluid in use, or fit a high-pressure-rated adapter assembly that specifies certified sealing elements.

Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel

Q: Is the Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel compatible with 1/4" NPT accessories?

Yes . the Double lance with handle for high-pressure cleaner, inlet GZ M22x1.5, stainless steel is compatible with 1/4" NPT accessories on the outlet side. The lance has an outlet connection specified as GW 1/4" NPT (female 1/4" NPT), so any accessory with a matching 1/4" NPT male thread will fit. Ensure accessories are rated for the lanceâs working pressure (up to 280 bar) and temperature (up to +150Â°C) and that appropriate seals (tape or thread sealant) are used for a leak-free connection.

All products, Guns for high-pressure washers/

Additional information

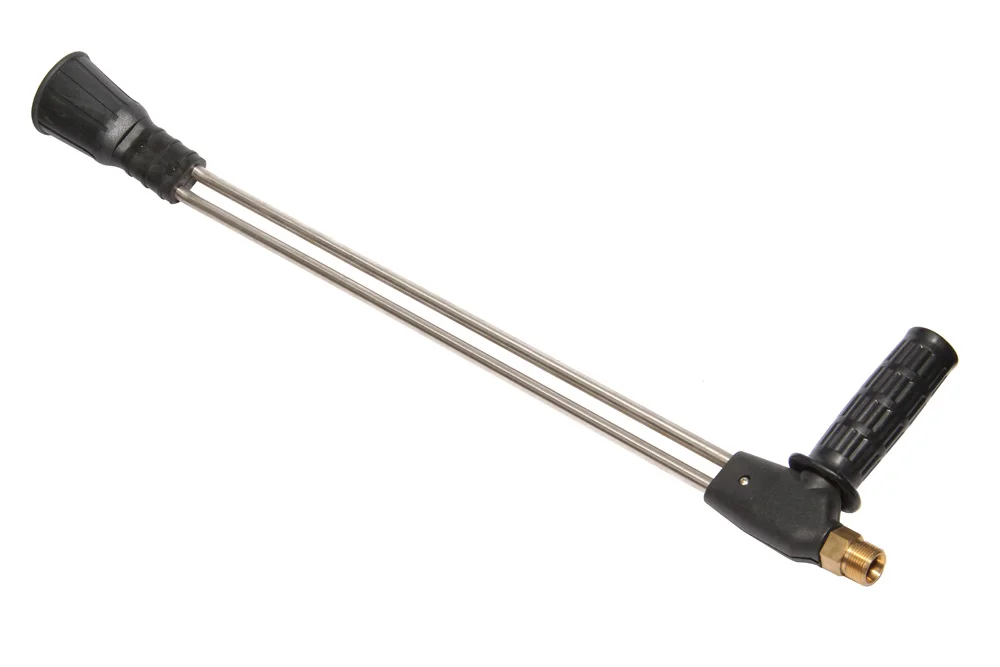

Double straight lance with a handle for holding, designed for high-pressure washers. Available in diameters of 1/8″ and 1/4″. Connections: (inlet) GZ M22x1.5 / (outlet) GW 1/4″ NPT. Working pressure: up to 280 bar. Flow rate: 40 l/min. Operating temperature: up to +150°C. Material: stainless steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MH-140034	Double lance 1/8", 600 mm, with holder, stainless steel	-	280	In stock	0 zł		Enquiry
MH-140038	Double lance 1/4", 600 mm, with stainless steel holder	-	280	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Double straight lance with a handle for holding, designed for high-pressure washers. Available in diameters of 1/8″ and 1/4″. Connections: (inlet) GZ M22x1.5 / (outlet) GW 1/4″ NPT. Working pressure: up to 280 bar. Flow rate: 40 l/min. Operating temperature: up to +150°C. Material: stainless steel.
