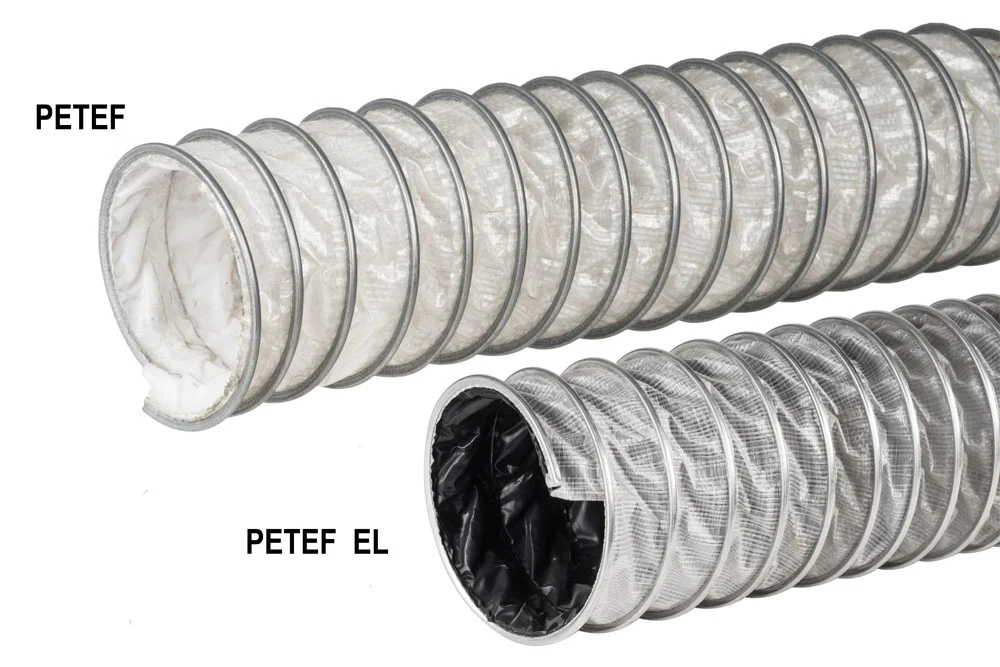

Extraction hose for chemically aggressive fumes and gases GRIPFLEX PETEF, GRIPFLEX PETEF EL
Lightweight, highly flexible and bendable, chemically resistant two-layer hose designed for the discharge of the most aggressive chemical vapors, gases, dust, and fibers (non-abrasive). Very good chemical resistance to aggressive chemicals due to the internal layer of PTFE film. In the standard version, the internal layer of white natural PTFE meets food industry requirements (FDA). In the antistatic version EL, the black internal layer of PTFE is electrically conductive (R ≤106 Ω). The hose features high compressibility – up to 1:6, a strong construction resistant to vibrations, stretching, and tearing, and impact resistance due to the external spiral. Resistant to UV radiation, ozone, and aging. Used in the chemical and food industries. Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with bridge clamps (left-handed). Chemical resistance verification – chemical resistance table for PTFE (preliminary selection), confirmation of resistance and application conditions – by Tubes International. Standard length: from 2 to 10 m. Hose material internal layer: white PTFE Teflon film – standard version PETEF, black conductive PTFE Teflon film – antistatic version PETEF EL. Hose material external layer: polyethylene fabric coated with polyethylene (PE). Reinforcement: external spiral made of galvanized steel wire and sheet. Operating temperature: from -40°C to +80°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Lightweight, highly flexible and bendable, chemically resistant two-layer hose designed for the discharge of the most aggressive chemical vapors, gases, dust, and fibers (non-abrasive). Very good chemical resistance to aggressive chemicals due to the internal layer of PTFE film. In the standard version, the internal layer of white natural PTFE meets food industry requirements (FDA). In the antistatic version EL, the black internal layer of PTFE is electrically conductive (R ≤106 Ω). The hose features high compressibility – up to 1:6, a strong construction resistant to vibrations, stretching, and tearing, and impact resistance due to the external spiral. Resistant to UV radiation, ozone, and aging. Used in the chemical and food industries. Also available with a stainless steel spiral (from a diameter of 80 mm). Hose installation on couplings with bridge clamps (left-handed). Chemical resistance verification – chemical resistance table for PTFE (preliminary selection), confirmation of resistance and application conditions – by Tubes International. Standard length: from 2 to 10 m. Hose material internal layer: white PTFE Teflon film – standard version PETEF, black conductive PTFE Teflon film – antistatic version PETEF EL. Hose material external layer: polyethylene fabric coated with polyethylene (PE). Reinforcement: external spiral made of galvanized steel wire and sheet. Operating temperature: from -40°C to +80°C.
Additional information
| Material | PTFE – teflon and similar |
|---|---|
| Maximum operating temperature [°C] | 80 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 2, 30 |
| Reinforcement | external spiral made of galvanized steel wire and sheet metal |
